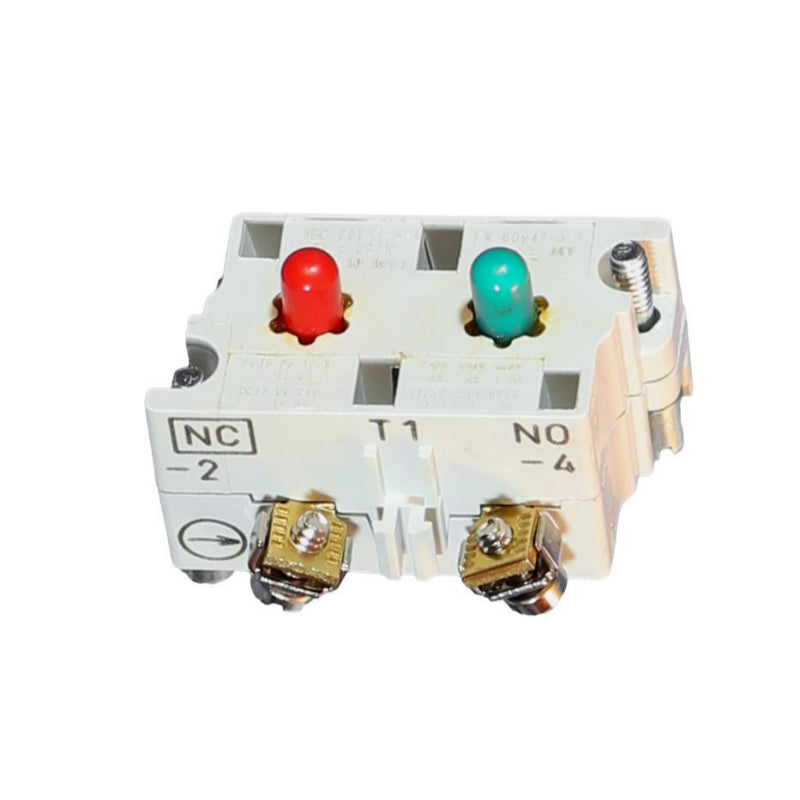

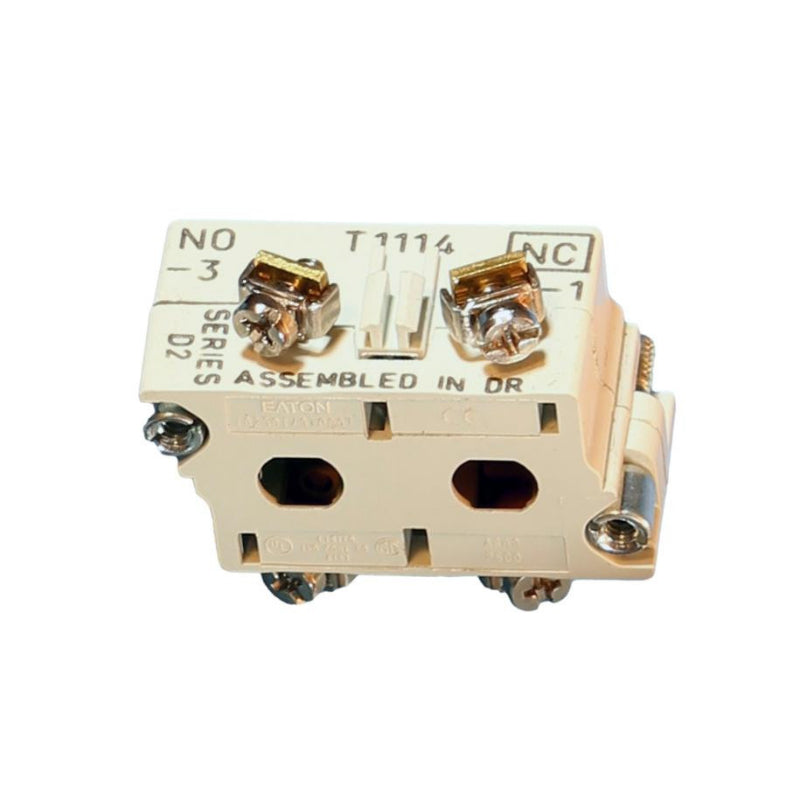

10250T1 Eaton 30.5mm Pushbutton Contact Block 1NO/1NC
10250T1 Eaton 30.5mm Pushbutton Contact Block 1NO/1NC
Couldn't load pickup availability
Overview
The Eaton 10250T1 is a heavy-duty contact block for 10250T series 30.5 mm pushbutton operators. Featuring one normally open and one normally closed contact with pressure terminals, it provides switching functionality for industrial motor control and control circuit applications.
Specifications
| Brand | Eaton |
|---|---|
| Manufacturer Part Number | 10250T1 |
| Product Type | Pushbutton Contact Block |
| Series | 10250T |
| Series Designation | D2 (original listing) |
| Operator Size | 30.5 mm |
| Duty Rating | Heavy-duty |
| Contact Configuration | 1NO/1NC |
| Contact Block Type | Standard |
| Terminals | Pressure |
| Application | Pushbutton operators |
| Construction | OEM (original listing) |
| Stackability | Up to 6 blocks (12 circuits), unless otherwise specified |
| Certifications | UL Listed; CSA Certified |
| Compliance | CE Marked |
| Dimensions | 2.4 × 2 × 1 in |
| Unit Weight | 0.08 lb |
| UPC | 782114263655 |
| Alternate Reference | T2513 (original listing) |
