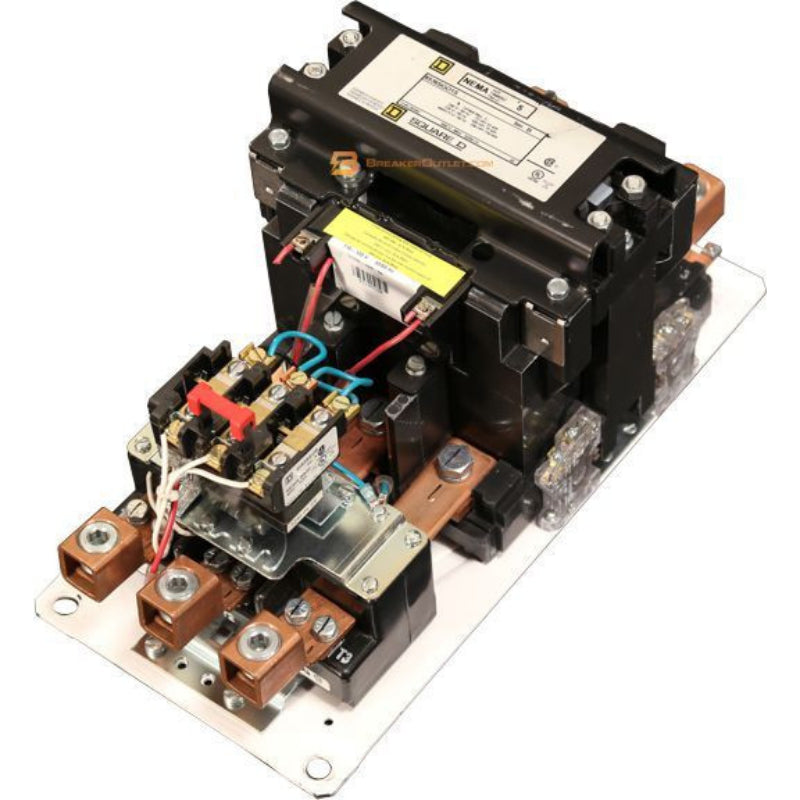

8536SGO1V02H20S Size-5 Square D Magnetic Starter with Solid State Overload
8536SGO1V02H20S Size-5 Square D Magnetic Starter with Solid State Overload
SKU: 8536SGO1V02H20S
Barcode: 785901854814
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
8536SGO1V02H20S
- FULL VOLTAGE
- NON REVERSING TYPE
- NEMA 5 SIZE
- 270 AMPERE CURRENT RATING
- OPEN ENCLOSURE TYPE
- NEMA CONSTRUCTION STANDARD
- 110 VAC AT 50 HZ, 120 VAC AT 60 HZ COIL VOLTAGE
- 90 TO 270 AMPERE MOTOR FLA
- 75 HP AT 200 VAC 50/60 HZ, 100 HP AT 230 VAC 50/60 HZ, 200 HP AT 460/575 VAC 50/60 HZ 3 PHASE
- 55 KW AT 200 VAC 50/60 HZ, 75 KW AT 230 VAC 50/60 HZ, 150 KW AT 460/575 VAC 50/60 HZ 3 PHASE POWER RATING/VOLTAGE
- CLASS 20 SOLID STATE OVERLOAD RELAY OVERLOADS
- 3 PHASE
- APPROVAL UL, CSA, CE
- NUMBER OF POLES: 3 WITH SEPARATE CONTROL CIRCUIT
- 8536 MODEL
- UPC: 785901854814
