Overview

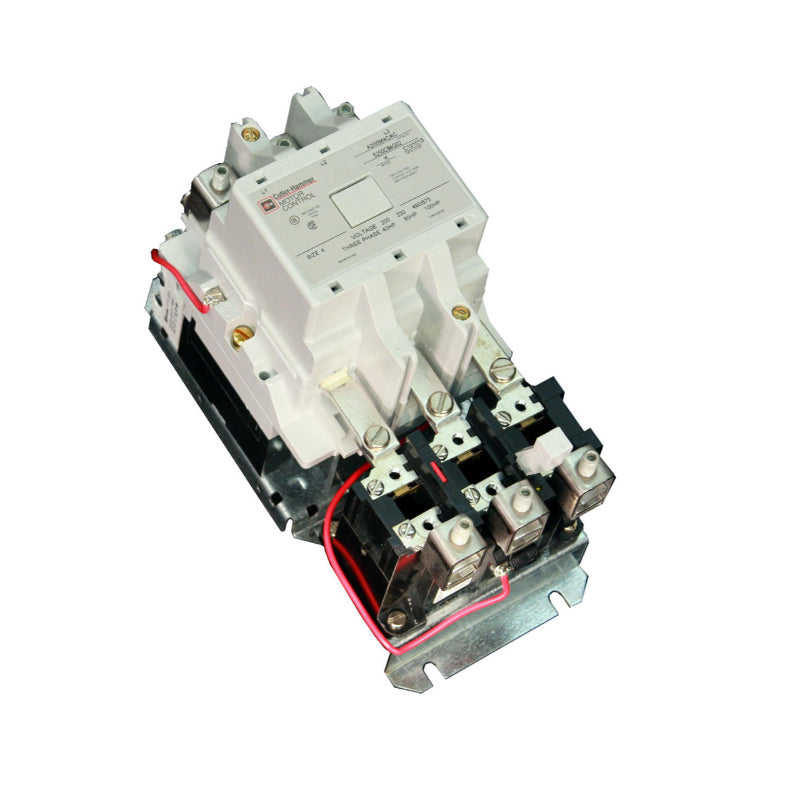

The Eaton A200M4CAC is an A200-series NEMA Size 4, 135 A, three-pole full-voltage non-reversing magnetic motor starter with a 120 V AC, 60 Hz (110 V at 50 Hz) operating coil. It is designed for motor control in compatible A200 applications.

Specifications

ManufacturerEaton
Manufacturer Part NumberA200M4CAC
Product TypeFull-voltage non-reversing magnetic motor starter
SeriesA200
NEMA Size4
Amperage135 A
Number of Poles3
Coil Voltage120 V AC, 60 Hz (110 V at 50 Hz)
Dimensions6.75 × 6.63 × 4.63 in
Unit Weight9.3 lb
UPC786678007199
CertificationsUL Listed; CSA Certified
Horsepower40 hp at 208 V; 50 hp at 240 V; 100 hp at 480/600 V

Heater Compatibility

Overload RelayA200 Thermal Type B, Class 20, manual reset
NEMA Size4
Selected BySelect heaters based on motor nameplate full-load amperage (FLA), service factor, ambient conditions, and Eaton's applicable Type B Class 20 table. FH catalog numbers identify individual heater elements, NOT three-packs. A three-phase block-type overload requires three individual elements. Heater elements sold separately; compatible options are not a recommendation for a specific motor.
Class 20 · Standard trip
  • FH68
  • FH69
  • FH70
  • FH71
  • FH72
  • FH73
  • FH74
  • FH75
  • FH76
  • FH77
  • FH78
  • FH79
  • FH80
  • FH81
  • FH82
  • FH83
  • FH84
  • FH85
  • FH86
  • FH87
  • FH88
  • FH89
  • FH90
  • FH91
  • FH92
  • FH93

Heaters are sold separately.
