Overview

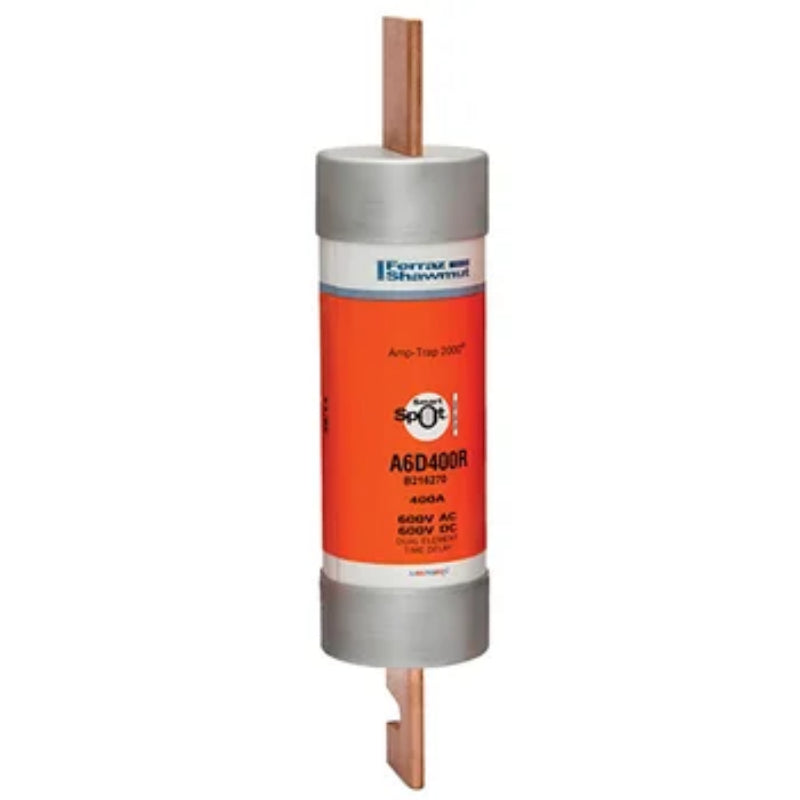

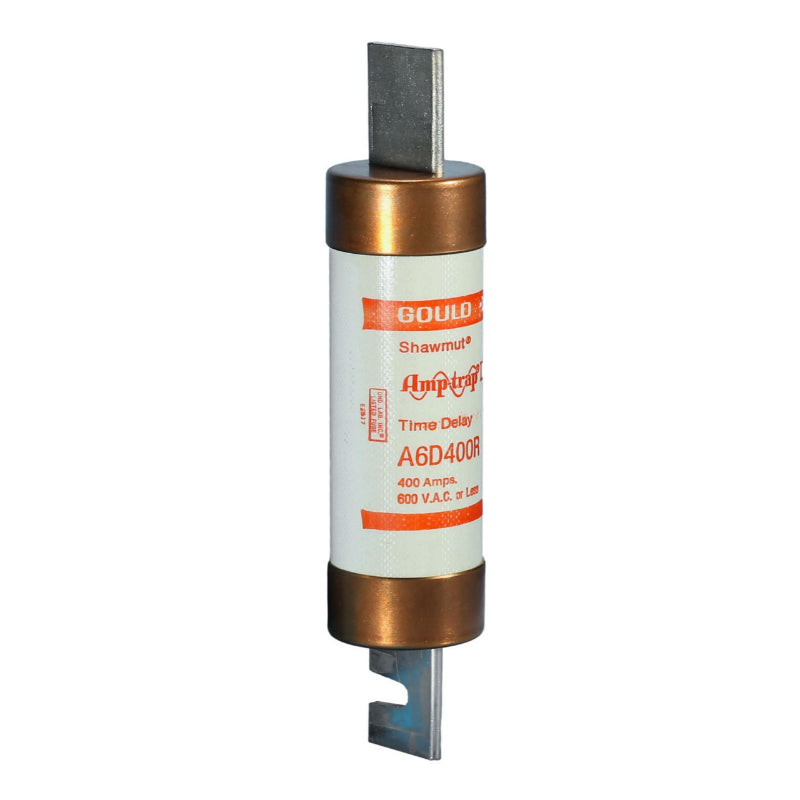

Amp-trap 2000 time-delay A6D-R fuses provide IEC type 2 "NO damage" protection to existing mains, feeders, and branch circuits serving motor and non-motor loads. A6D-R fuses will open fast enough under extreme fault conditions for maximum short circuit protection to prevent damage to motor starters, switches, and other circuit components, yet also provide the time-delay needed for motor in-rush currents. A6D-R fuses can be used to replace older 600V class H, K or RK5 fuses already installed in the field.

  • Non-indicating or solid state smartspot visual blown fuse indicator
  • Time delay for motor starting and transformer inrush currents without nuisance opening
  • 600VAC and 600VDC dual rated
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current limiting for low peak let-thru current
  • Recommended for arc flash energy reduction
  • Easy 2-to-1 selectivity for prevention of nuisance shut downs and blackouts
  • Rejection-style design prevents replacement errors (when used with recommended fuse blocks)
  • High-visibility orange label gives instant brand recognition
  • Reduced inventory by taking the place of class RK5, K, and H fuses
  • Metal-embossed date and catalog number for easier traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings

Specifications

BrandMersen
Product TypeTime Delay Fuse
AC Voltage Rating600 V
DC Voltage Rating600 V
Current Rating400 A
AC Interrupt Rating200 kA
DC Interrupt Rating100 kA
Frequency Rating50/60 Hz
Body MaterialPolyTube
Body StyleCylindrical
Fuse ClassRK1
Compatible Fuse Block6631R; 6633R
Fits Fuse Block StyleRejection
Mounting TypeClip
Terminal MaterialTin-Plated Copper
Terminal TypeBlade
Visual Indication (Yes/No)Yes
Diameter2.56 in
Length11.63 in
ApplicationMotor; Safety Switch; Transformer; Branch Circuit Protection; Disconnect; Control Panel; All General Purpose Circuit
CertificationsUL Listed to Standard 248-12 File E2137; DC Listed to UL Standard 248; CSA Certified to Standard C22.2 No. 248.12
Weight3.22 lb
Package Quantity1 Piece

Technical Documents
