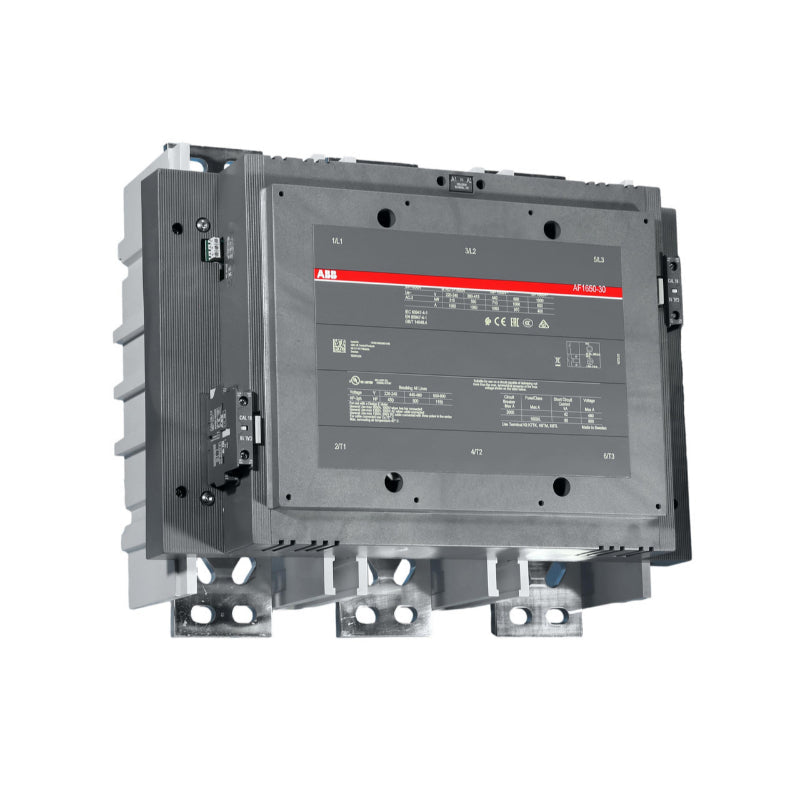

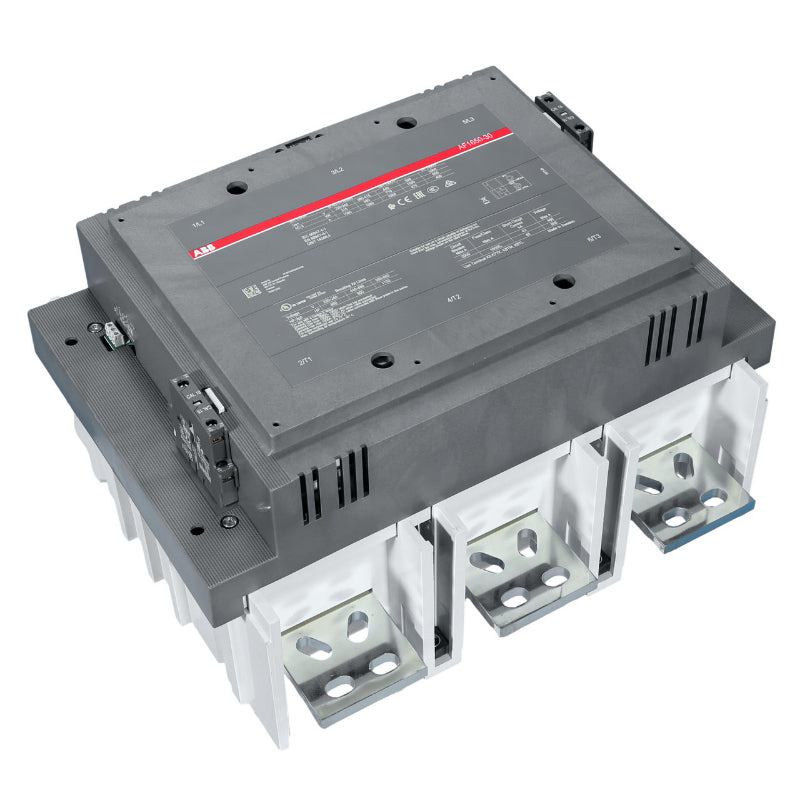

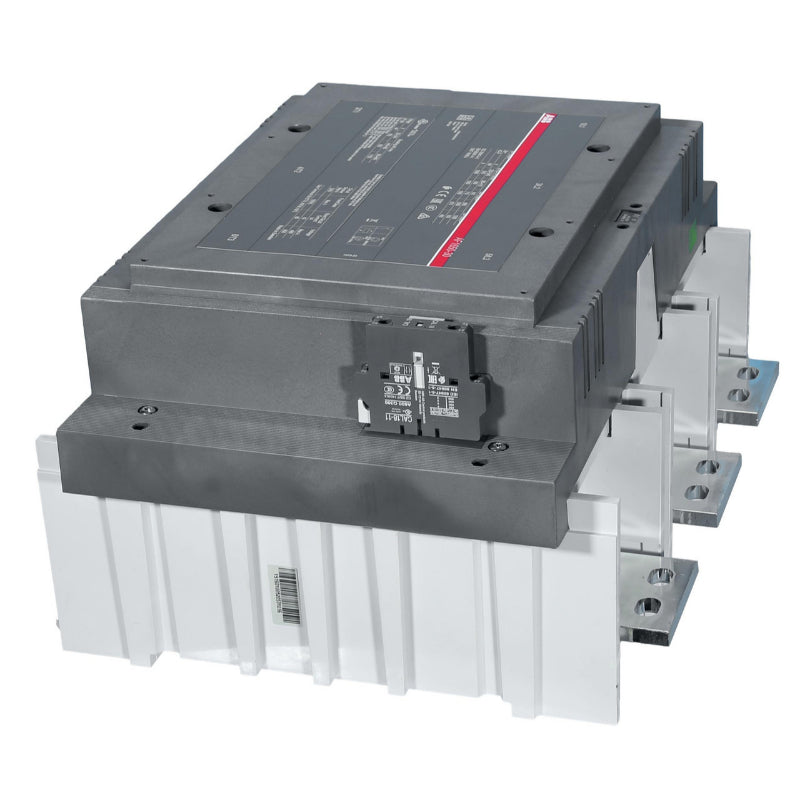

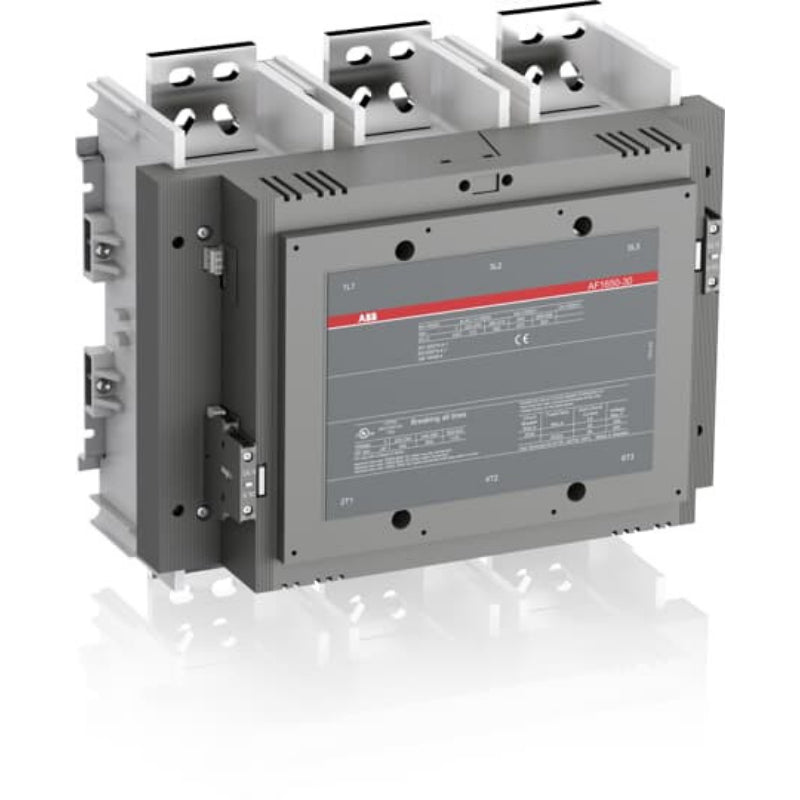

AF1650-30-22-70 ABB Contactor 1000 V 3P Three Phase 100 to 250 VAC/DC @ 50/60 Hz
AF1650-30-22-70 ABB Contactor 1000 V 3P Three Phase 100 to 250 VAC/DC @ 50/60 Hz
Call (800) 321-8998 for pricing and availability.
Couldn't load pickup availability
Overview

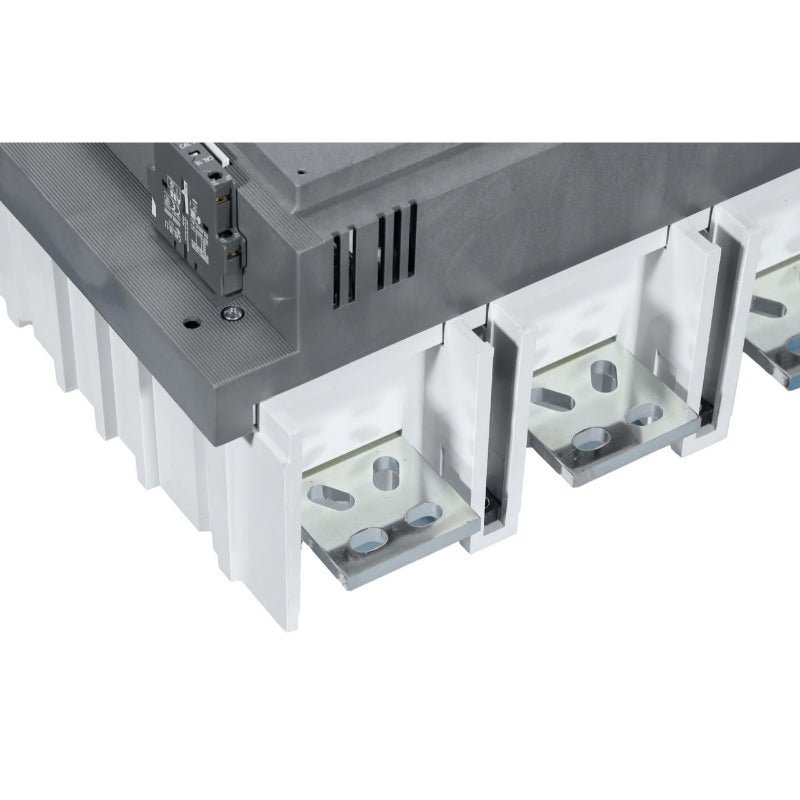

The AF1650-30-22-70 is A 3 pole - 1000 V IEC or 1000 V UL contactor pre-mounted auxiliary contacts and main circuit bars, controlling motors up to 560 KW / 400 V ac (ac-3) or 900 hp / 480 V UL and switching power circuits up to 1650 A (ac-1) or 1650 A UL general use. The contactor has A wide control voltage range (100-250 V 50/60 Hz and dc), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. AF contactors have A block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
- Coils cover 24 V ‑ 500 V AC and 20 V ‑ 500 V DC
- 24 V DC coil for direct control by plc‑output > 250 mA
- Low holding consumption up to 1.7 W
- Mirror, mechanically linked contacts
- Built‑in surge suppression
- Up to 560 kW ‑ 400 V ac‑3, 900 hp ‑ 480 V and 2850 A ‑ 690 V ac‑1, 2850 A ‑ general use
