AN16KN0A Freedom Series NEMA size 3 Starter Eaton / Cutler-Hammer
AN16KN0A Freedom Series NEMA size 3 Starter Eaton / Cutler-Hammer
7 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview

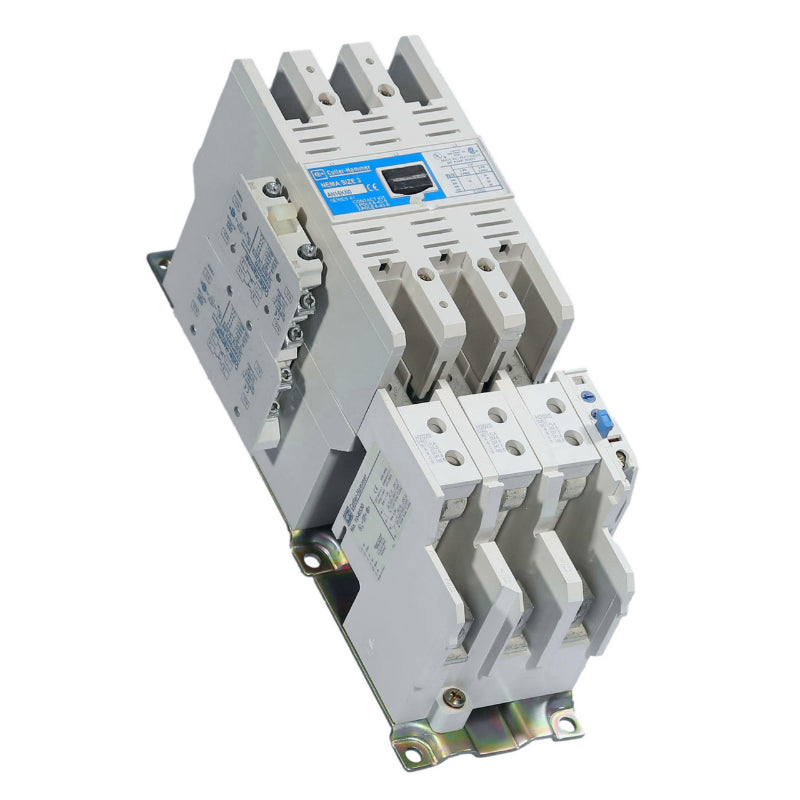

The Eaton / Cutler-Hammer AN16KN0A Freedom Series is a NEMA Size 3, 90 Amp, 3-pole, full-voltage, non-reversing motor starter for three-phase motor control. This open-type starter features a 120 VAC at 60 Hz (110 VAC at 50 Hz) operating coil, a C306 bimetallic overload relay, and a right-mounted 1NO auxiliary contact.
Compatible Class 20 heater packs for the Size 3 C306 overload relay: H2025-3, H2026-3, H2027-3, and H2018-3 through H2024-3. Select the heater pack according to the motor full-load current.
Heater elements sold separately.
Specifications
| Manufacturer | Eaton / Cutler-Hammer |
|---|---|
| Manufacturer Part Number | AN16KN0A |
| Product Type | Full Voltage, Non-Reversing Motor Starter |
| Series / Family | Freedom AN16 |
| NEMA Size | 3 |
| Current Rating | 90 A |
| Number of Poles | 3 |
| Phase | 3-Phase |
| Coil Voltage | 120 VAC at 60 Hz; 110 VAC at 50 Hz |
| Overload Relay | C306 Bimetallic |
| Auxiliary Contacts | 1NO, right-mounted |
| Horsepower Rating | 25 HP at 208 V; 30 HP at 240 V; 50 HP at 480/600 V |
| Enclosure Type | Open Type |
| Mounting | Horizontal |
| Dimensions | 5.94 × 4.08 × 11.35 in |
| Unit Weight | 11 lb |
| Certifications | UL Listed; CSA Certified |
| UPC | 782113603896 |
Heater Compatibility
| Overload Relay | C306 Series A |
|---|---|
| NEMA Size | 3 |
| Selected By | Motor full-load amperage (FLA) and required overload trip class |
| Class 20 · Standard trip |
Heaters are sold separately.
