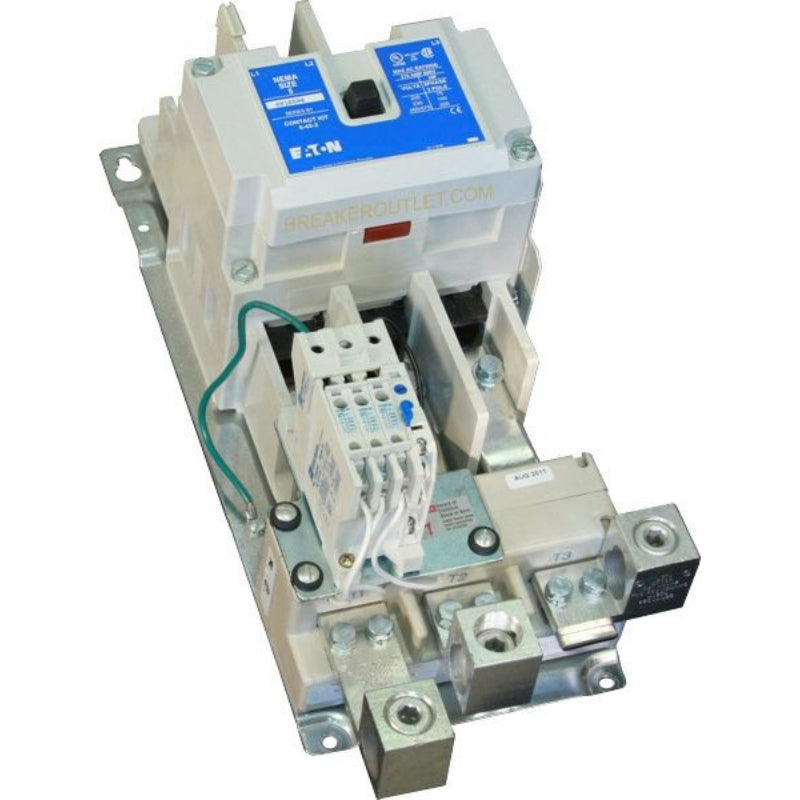

AN16SN0 Freedom series size 5 motor starter for MCC buckets
AN16SN0 Freedom series size 5 motor starter for MCC buckets
SKU: AN16SN0
Barcode: 782113971889
6 in stock
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
AN16SN0
Size 5 NEMA type Full Voltage
Non Reversing, New
Lug configuration suitable for MCC Buckets.
100 hp at 240 v, 150 hp at 380 v 50 hz, 200 hp at 480/600 v; 270 ampere, 3 phase- coil voltage 440 v at 50 hz, 480 v at 60 hz; auxiliary contact 1NO, size Nema 5, open enclosure, overloads bimetallic ambient temperature compensated No. C306DN3 FLA .254-.411, 1NO-1NC automatic/manual reset class 10/20, nema construction standard AN16 model, number of pole 3 starter. For contact replacements use, #6-45-2 kits. Eaton / Cutler-Hammer.
