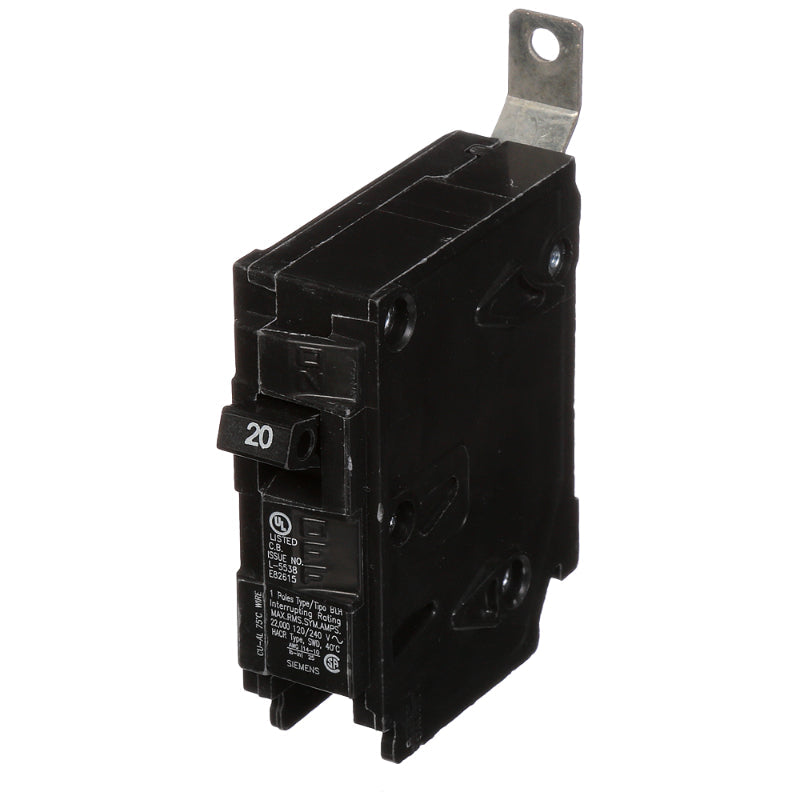

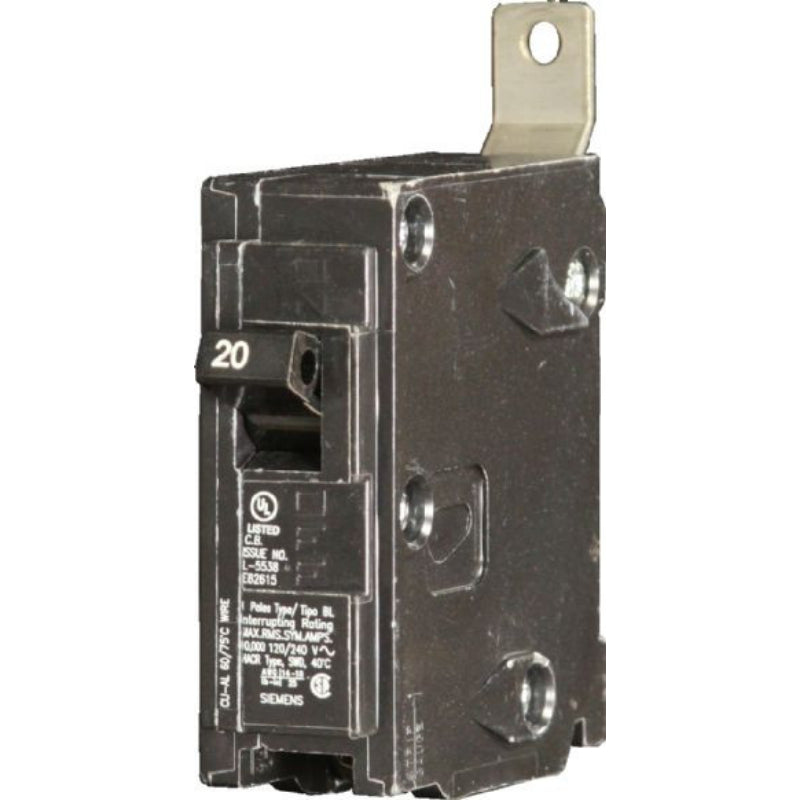

B120H Siemens BLH 20A 1-Pole Bolt-On Circuit Breaker
B120H Siemens BLH 20A 1-Pole Bolt-On Circuit Breaker
Regular price
$9.65 - $20.78
Sale price
$20.78
Regular price
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
Siemens B120H is a bolt-on thermal-magnetic branch circuit breaker for compatible panelboards. It provides overload and short-circuit protection.
Specifications
| Brand | Siemens |
|---|---|
| Manufacturer Part Number | B120H |
| Product Type | Molded Case Circuit Breaker |
| Series | BLH |
| AC Voltage Rating | 120 VAC |
| Current Rating | 20 A |
| Interrupt Rating | 22 kA at 120 VAC |
| Trip Type | Fixed |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 1 |
| Frame Size | BL 125A |
| Terminal Type | Load Side Lug |
| Mounting Type | Bolt-On |
| Wire Size | 14 to 10 AWG (Copper); 12 to 10 AWG (Aluminum) |
| For Use With | Compatible Siemens Panelboards |
| Certifications | UL 489; CSA C22.2 No. 5-16; NMX-J-266-ANCE; HACR Rated; SWD Rated |
| Dimensions | 2.563 × 1.00 × 3.122 in |
| Weight | 0.309 lb |
