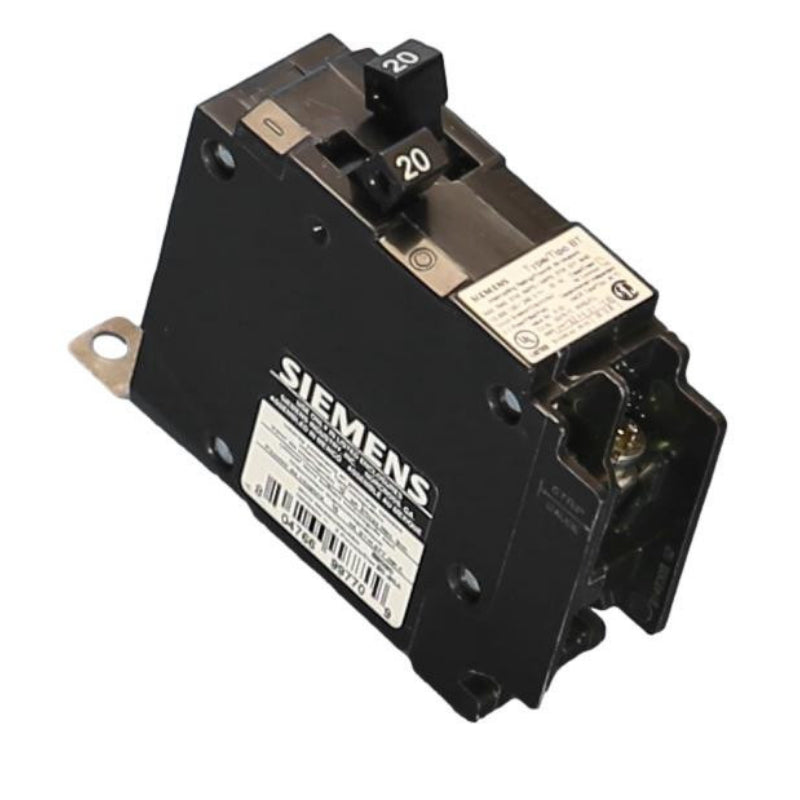

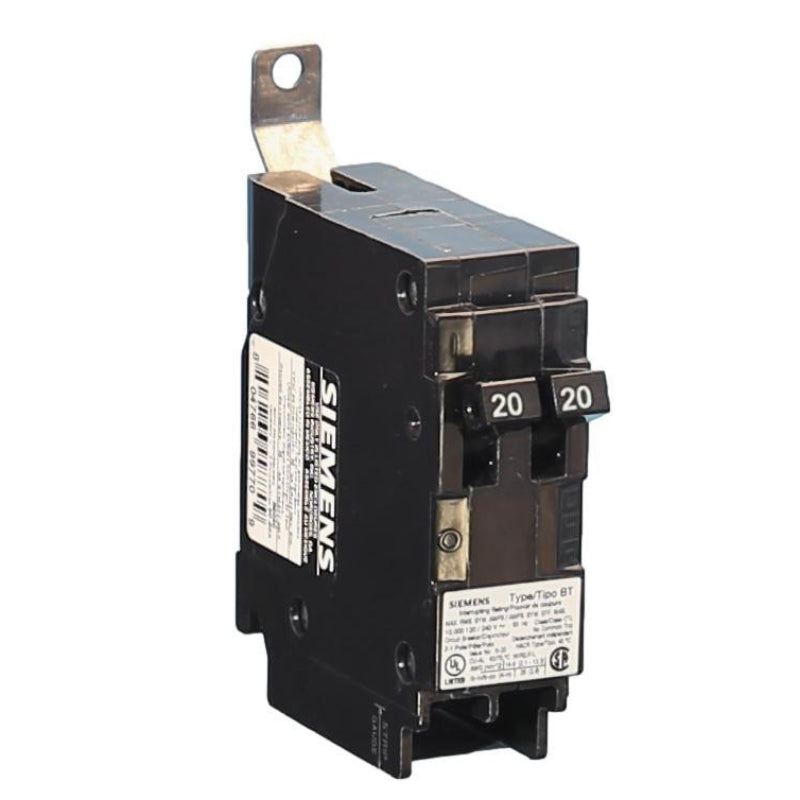

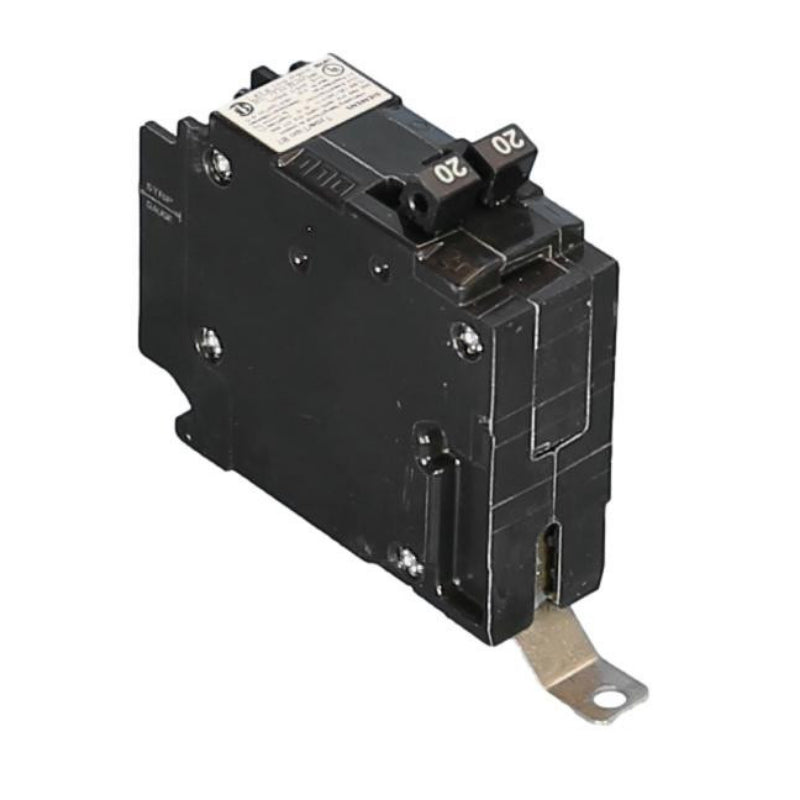

B2020 Siemens BT Miniature Circuit Breaker 20 A 1 Pole 120/240 VAC EQ Frame Thermal Magnetic Lug 10 kA
B2020 Siemens BT Miniature Circuit Breaker 20 A 1 Pole 120/240 VAC EQ Frame Thermal Magnetic Lug 10 kA
Regular price
$50.00
Sale price
$50.00
Regular price
Shipping calculated at checkout.
5 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
Siemens low voltage circuit breakers miniature thermal magnetic circuit breakers - duplex miniature circuit breakers. (2) 20A 1" 120V 10kAIC B L Siemens.
- Enhanced efficiency with P1-P3 lighting panels. Two 1-pole circuits in 1” of space
- Saved space and time in industrial and commercial applications - fewer panels
- Ideal for new or existing industrial and commercial projects - retrofit allowed in existing panels.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Miniature Circuit Breaker |
| AC Voltage Rating | 120/240 V |
| Current Rating | 20 A |
| Interrupt Rating | 10 kA |
| High Current Trip Setting | 100 A |
| Low Current Trip Setting | 15 A |
| Trip Type | Fixed |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 1 |
| Frame Size | EQ |
| Phase | Single |
| Actuator Type | Toggle |
| Wire Size | 12 to 10 AWG (Aluminum); 14 to 12 AWG (Copper) |
| Terminal Type | Lug |
| Mounting Type | Bolt-On |
| Operating Temperature Rating | 40 °C |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 3-3/4 in |
| Width | 1 in |
| Depth | 3 in |
| For Use With | Panel Board; Load Center |
| Application | Commercial; Industrial |
| Certifications | UL 489; CSA C22.2 NO. 5-16; NMX-J-266-ANCE; HACR Rated; SWD Rated |
| Weight | 0.309 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
