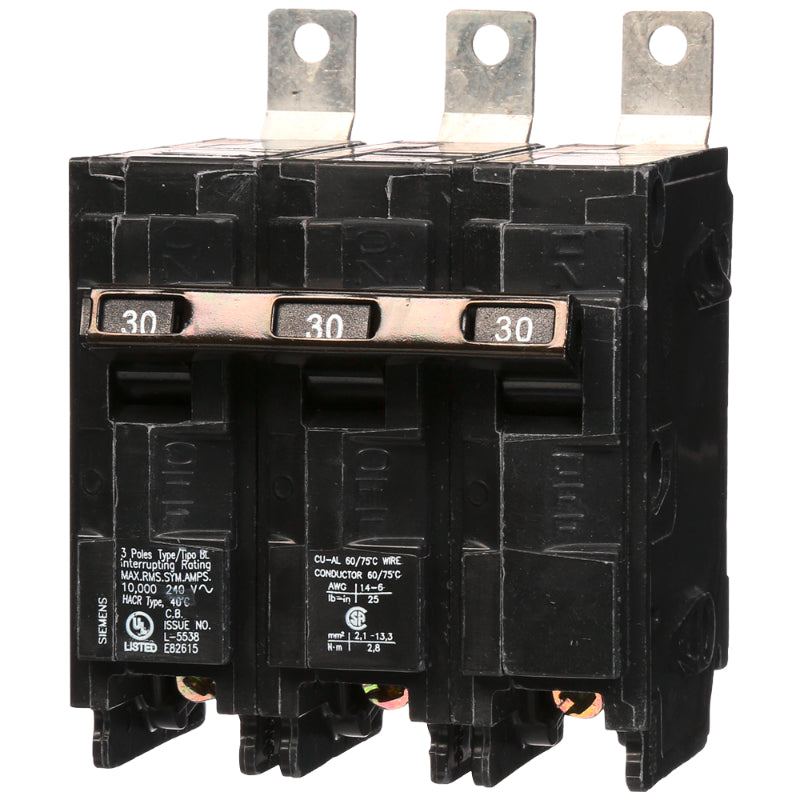

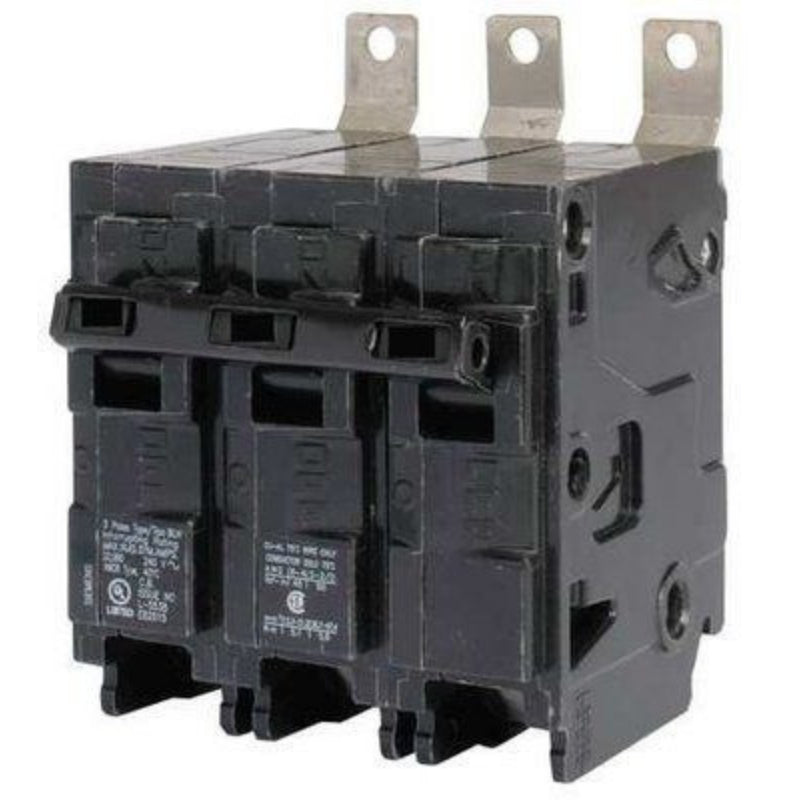

B330 Siemens BL Molded Case Circuit Breaker 30 A 3 Pole 240 VAC BL 125A Frame Thermal Magnetic Load Side Lug Bolt-On 10 kA
B330 Siemens BL Molded Case Circuit Breaker 30 A 3 Pole 240 VAC BL 125A Frame Thermal Magnetic Load Side Lug Bolt-On 10 kA
Couldn't load pickup availability
Overview
Siemens low voltage molded case circuit breakers panelboard mounting 240 V circuit breakers - type BL, 3-Pole, 240 V ac are circuit protection molded case circuit breakers. Type: BL application: electrical distribution standard: UL 489 voltage rating: 240 V amperage rating: 30A trip range: thermal magnetic interrupt rating: 10 AIC number of poles: 3P.
- 120, 120/240, 240vac max
- UL listed, file # E82615
- CSA and NOM certified
- HACR rated
- 40C calibration
- Thermal / magnetic trip
- Molded case switch, 2 pole 30 - 60 amperes
- HID lighting, 1 and 2 pole 15, 20, 30 amperes
- SWD duty - 1 pole 15 - 20 amperes
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| AC Voltage Rating | 240 V |
| Current Rating | 30 A |
| Interrupt Rating | 10 kA |
| High Current Trip Setting | 225 A |
| Low Current Trip Setting | 15 A |
| Trip Type | Common;Fixed |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Frame Size | BL 125A |
| Actuator Type | Toggle |
| Wire Size | 12 to 6 AWG (Aluminum);14 to 6 AWG (Copper) |
| Terminal Type | Load Side Lug |
| Mounting Type | Bolt-On |
| Operating Temperature Rating | 40 °C |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 3-9/16 in |
| Width | 3 in |
| Depth | 3 in |
| For Use With | Panel Board;Load Center |
| Application | Electrical Distribution |
| Certifications | UL 489;UL E82615;CSA C22.2 NO. 5-16;NMX-J266-ANCE-2016;HACR Rated;SWD Rated;NOM Certified |
| Weight | 0.948 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
