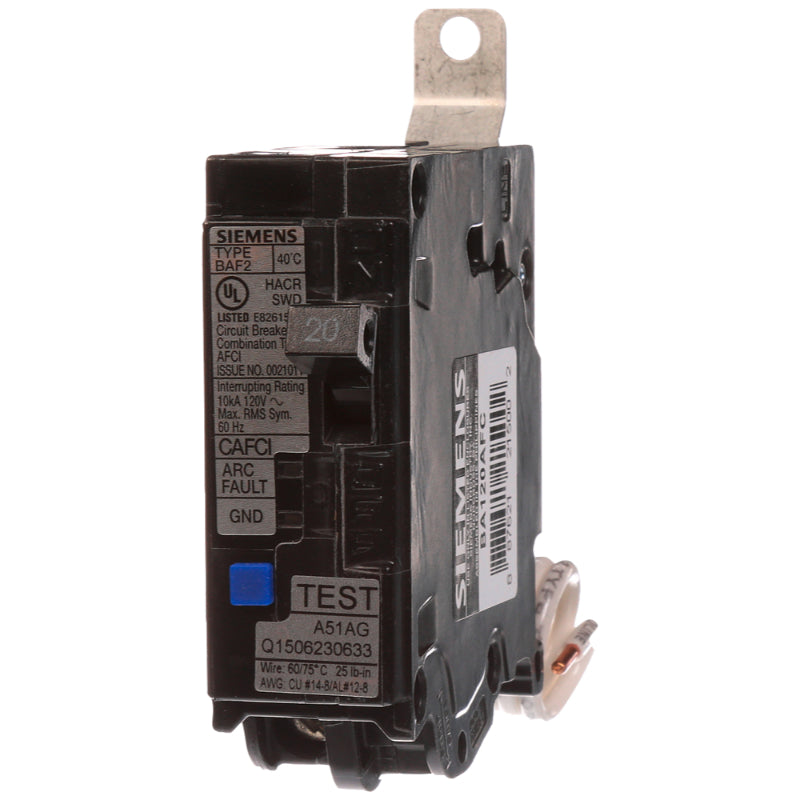

BA120AFC Siemens BAF2 Combination Type Arc-Fault Circuit Interrupter 20 A 1 Pole 120 VAC EQ Frame Thermal Magnetic/Electronic Load Side Lug 10 kA
BA120AFC Siemens BAF2 Combination Type Arc-Fault Circuit Interrupter 20 A 1 Pole 120 VAC EQ Frame Thermal Magnetic/Electronic Load Side Lug 10 kA
Couldn't load pickup availability
Overview
Siemens low voltage molded case circuit breakers panelboard mounting 240 V AFCI circuit breakers - 1-Pole, AFCI combo - BAF, 10kAIC, 120V ac are circuit protection molded case circuit breakers. Type: BL application: electrical distribution standard: UL 1699 voltage rating: 120V amperage rating: 20A trip range: thermal magnetic interrupt rating: 10 AIC number of poles: 1P.
- New and improved electronics
- 1/4” more wiring bend space than our previous design
- Both lugs at the same angle - for easier wiring
- Plug-in branch circuit breakers for Murray single phase load centers
- Bolt-on branch circuit breakers for Siemens panelboards
- LED trip indicators
- UL listed
- Ratings: HACR SWD
- 120 volts AC
- Wire range: #14 - #8 AWG Cu #12 - #8 AWG Al
- Torque rating: 25 lb. In.
