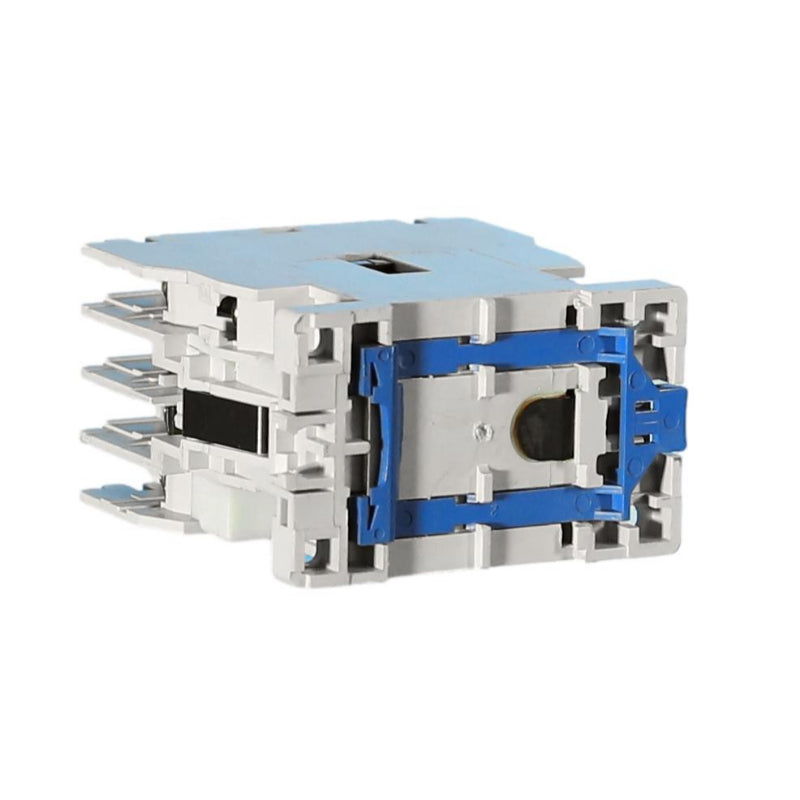

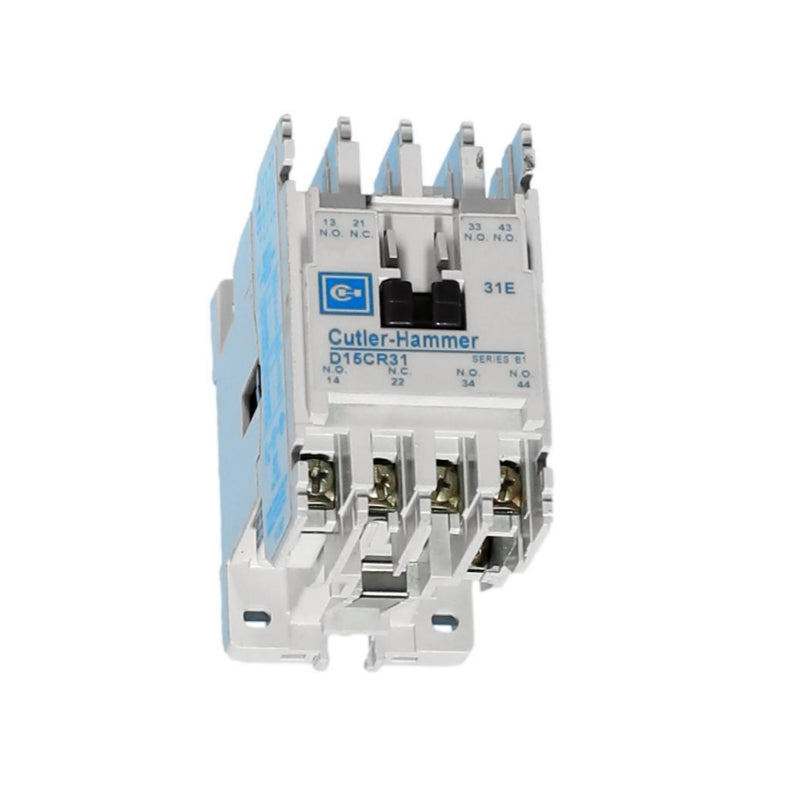

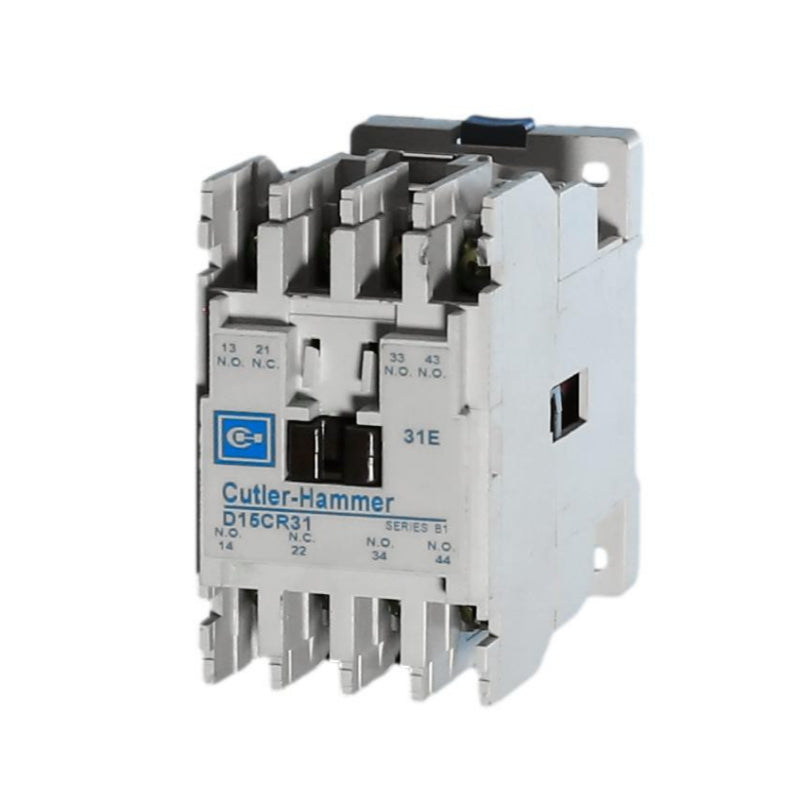

D15CR31 Freedom Multi Pole Relay, 4 Pole, Eaton -New
D15CR31 Freedom Multi Pole Relay, 4 Pole, Eaton -New
SKU: D15CR31
Barcode: 782113807171
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
D15CR31
- Multi Pole Relay
- 4 Pole
- 10A
- Freedom Relay
- Coil: 110/120V
- 3 N.O. and 1 N.C
- Series B1
- Eaton Brand
- New
State Indicator Visually Shows Relay on or Off Status; Relay Base has Mounting Holes on 35 x 60 MM Centers, Permitting Direct Replacement of Competitive Relays; Relay also Mounts on 35 MM Din Rail as Standard; Magnet Coil has Three Terminals, Permitting Either Top or Diagonal Wiring—Easy to Replace European or U.S. Relays without Changing Wiring Layout; Contact Pole Terminals have Captive, Backed-Out, Self-Lifting Pressure Plates with ± Screws—Reduced Wiring Time; All Terminals are Shrouded or “Finger-Proofed” to Reduce Possibility of Electrical Shock
