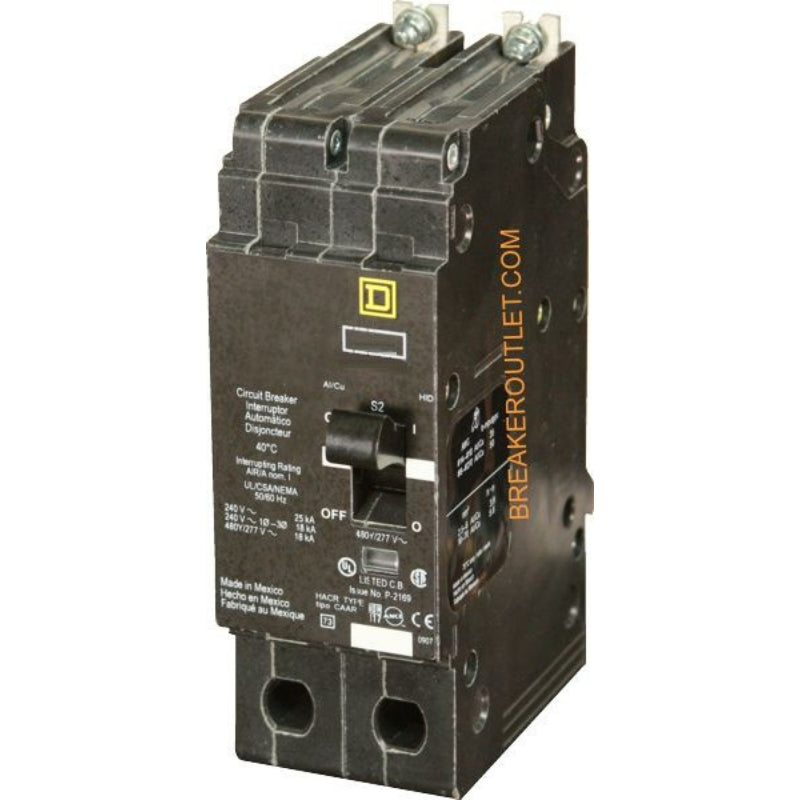

EDB24040 Square D Schneider Electric Bolt-on EDB Circuit Breaker
EDB24040 Square D Schneider Electric Bolt-on EDB Circuit Breaker
SKU: EDB24040
Barcode: 785901879060
5 in stock
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
EDB24040
2 Pole 40 Amp 277/480V, Lighting panel board Branch circuit breakers for panel board installation, thermal magnetic VISI-TRIP feature, 40 deg c, interrupting rating 25 kiloampere at 120 VAC, 18 kiloampere at 120/240/277 VAC, wire size 14 to 6 awg (aluminum/copper), bolt on panel board mounting. This breaker is the entry level of industrial frame circuit breakers, anything above is more costly. EDB24040
