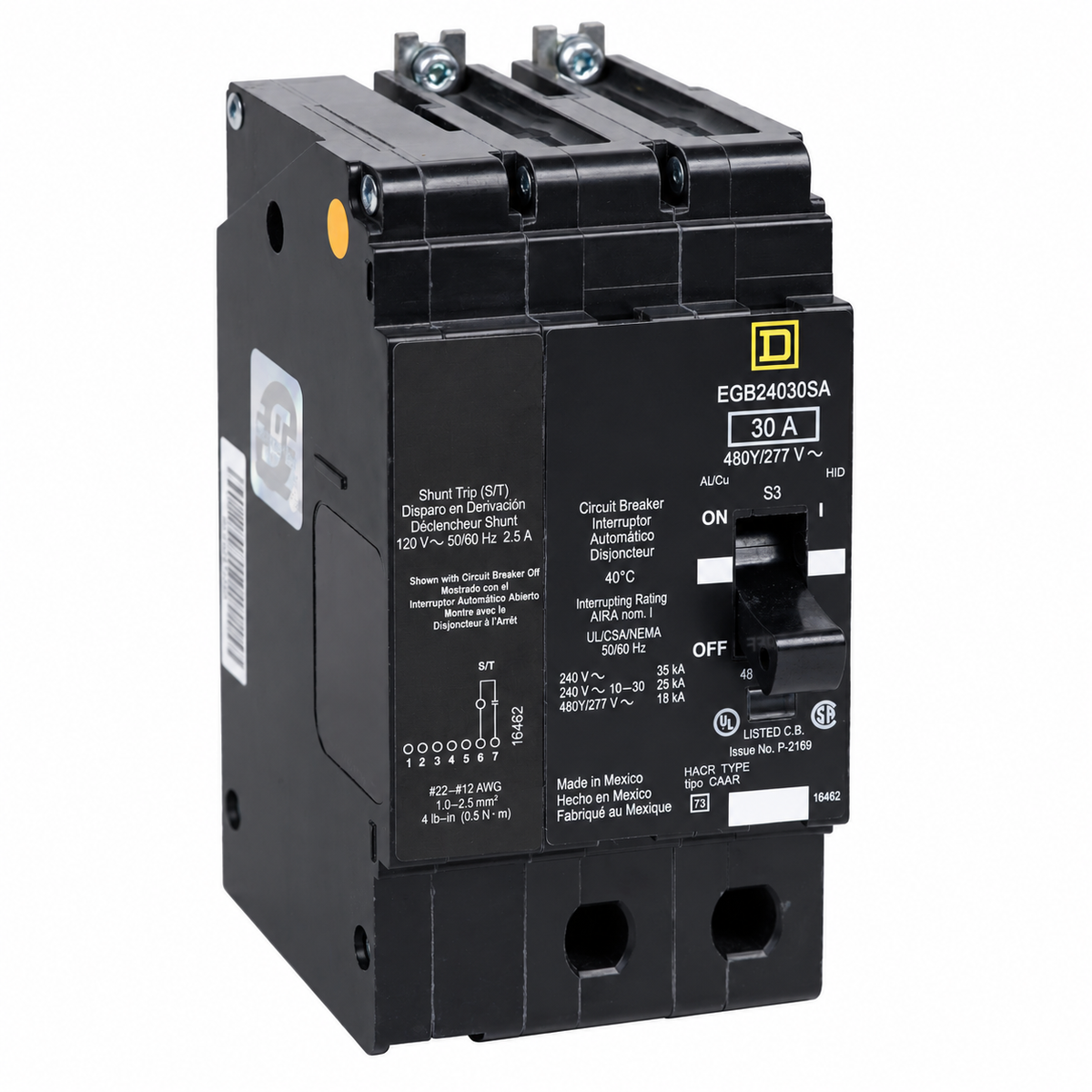

EGB24030SA Square D 30A 2-Pole 480Y/277V Shunt Trip Circuit Breaker
EGB24030SA Square D 30A 2-Pole 480Y/277V Shunt Trip Circuit Breaker
2 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
The Square D / Schneider Electric EGB24030SA is a 30A, 2-pole E-frame bolt-on circuit breaker with an integrated shunt trip for NF panelboards. It features thermal-magnetic overcurrent protection and VISI-TRIP indication.
- Manufacturer part number: EGB24030SA
- Amperage: 30A; poles: 2
- Voltage rating: 480Y/277VAC
- Interrupting capacity: 35kA at 480Y/277VAC; 65kA at 240VAC
- Mounting: bolt-on; EGB E-frame
- Shunt trip: included
- Wire range: #12–#6 AWG aluminum or #14–#6 AWG copper
- Breaker dimensions: 5.66 in H × 2.94 in W × 4.05 in D
Specifications
| Brand | Square D / Schneider Electric |
|---|---|
| Manufacturer Part Number | EGB24030SA |
| UPC | 606486143462 |
| Product Type | Shunt Trip Circuit Breaker |
| Frame | E-Frame |
| Series | EGB |
| Amperage | 30 A |
| Poles | 2 |
| Voltage | 480Y/277 V AC |
| Mounting | Bolt-On |
| Application | NF Panelboard |
| Trip Type | Thermal-Magnetic |
| Shunt Trip | Included |
| Interrupting Rating | 35 kA at 480Y/277 V AC; 65 kA at 240 V AC |
| Height | 5.66 in |
| Width | 2.94 in |
| Depth | 4.05 in |
| Net Weight | 3 lb |
| Terminal Wire Size | #12–#6 AWG aluminum; #14–#6 AWG copper |
| Trip Indicator | VISI-TRIP |
