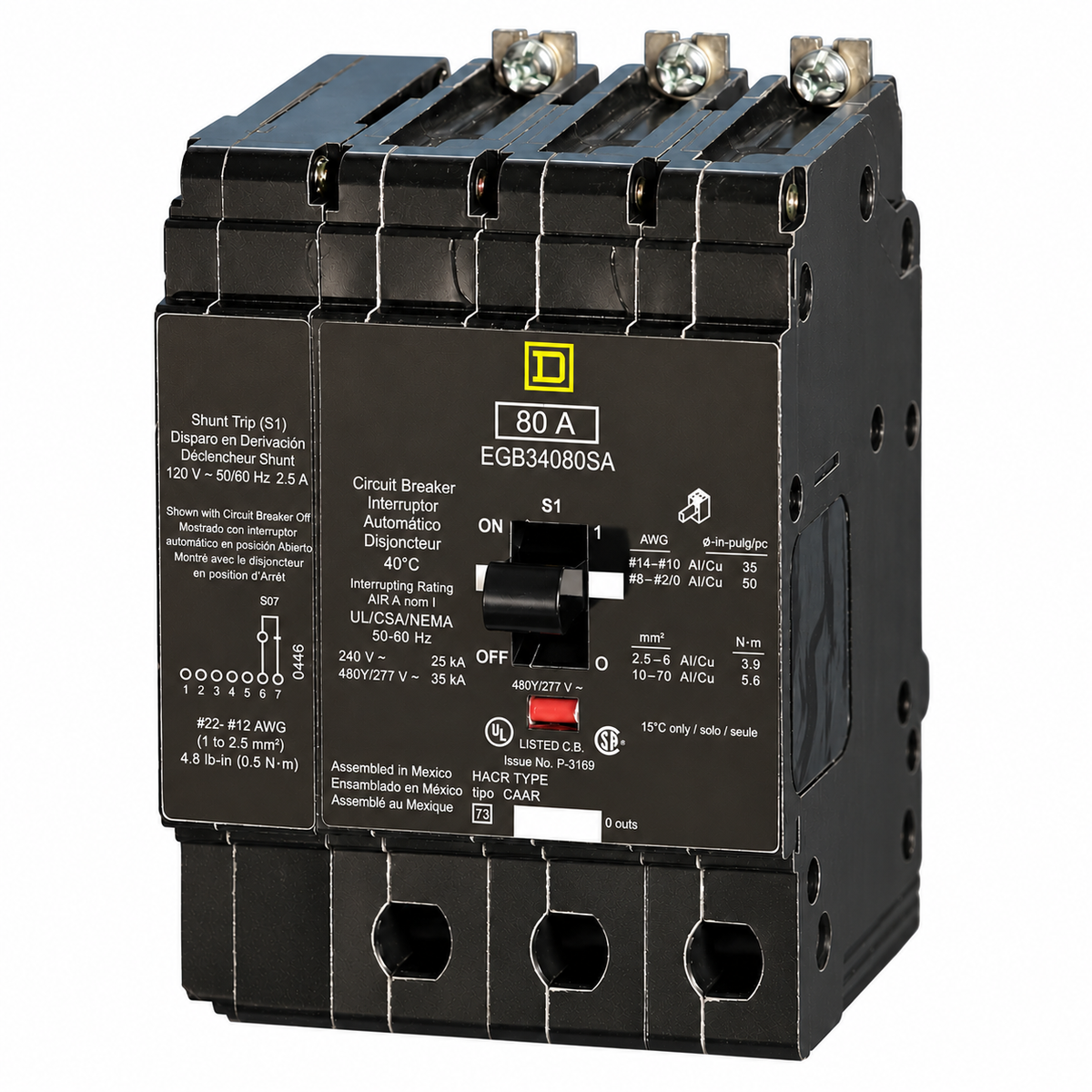

EGB34080SA Square D 80A 3 Pole 35kA 480Y/277V Bolt-On Circuit Breaker with Shunt Trip
EGB34080SA Square D 80A 3 Pole 35kA 480Y/277V Bolt-On Circuit Breaker with Shunt Trip
Couldn't load pickup availability
Overview
The Square D by Schneider Electric EGB34080SA is an 80A, 3-pole E-frame bolt-on circuit breaker with factory-installed 120V AC shunt trip, designed for compatible Square D NF panelboards. Fixed thermal-magnetic protection provides overload and short-circuit protection.
- 80A, 3-pole, EGB E-frame (125A frame family)
- 480Y/277V AC maximum operating voltage
- Interrupting rating: 65kA at 240V AC; 35kA at 480Y/277V AC
- Factory-installed 120V AC shunt trip for remote tripping
- Bolt-on mounting; aluminum lugs
- Conductor range: #14–2/0 AWG copper or #12–2/0 AWG aluminum
- For compatible Square D NF panelboards; HACR rated and cULus certified
- Manufacturer dimensions: 5.66 in high × 3.92 in wide × 4.05 in deep; net weight 4 lb
Verify electrical ratings, shunt-trip control requirements and panelboard compatibility before ordering or installation.
Specifications
| Brand | Square D by Schneider Electric |
|---|---|
| Manufacturer Part Number | EGB34080SA |
| Product Type | Miniature Circuit Breaker |
| Series | EGB |
| Frame Size | E-Frame, 125 A frame family |
| Current Rating | 80 A |
| Number of Poles | 3 |
| AC Voltage Rating | 480Y/277 V |
| Trip Mechanism | Fixed Thermal Magnetic |
| Mounting Type | Bolt-On |
| Terminal Type | Aluminum Lugs |
| For Use With | Square D NF Panelboards |
| Shunt Trip | Factory Installed, 120 V AC, 50/60 Hz |
| Interrupt Rating | 65 kA @ 120 V AC; 65 kA @ 240 V AC; 35 kA @ 277 V AC; 35 kA @ 480Y/277 V AC |
| Breaking Capacity Code | G |
| Copper Wire Size | 14 AWG to 2/0 AWG |
| Aluminum Wire Size | 12 AWG to 2/0 AWG |
| Height | 5.66 in |
| Width | 3.92 in |
| Depth | 4.05 in |
| Net Weight | 4 lb |
| HACR Rated | Yes |
| Certification | cULus |
| UPC | 785901108245 |
