SKU: EJB34080SA
Barcode: 785901649106
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview

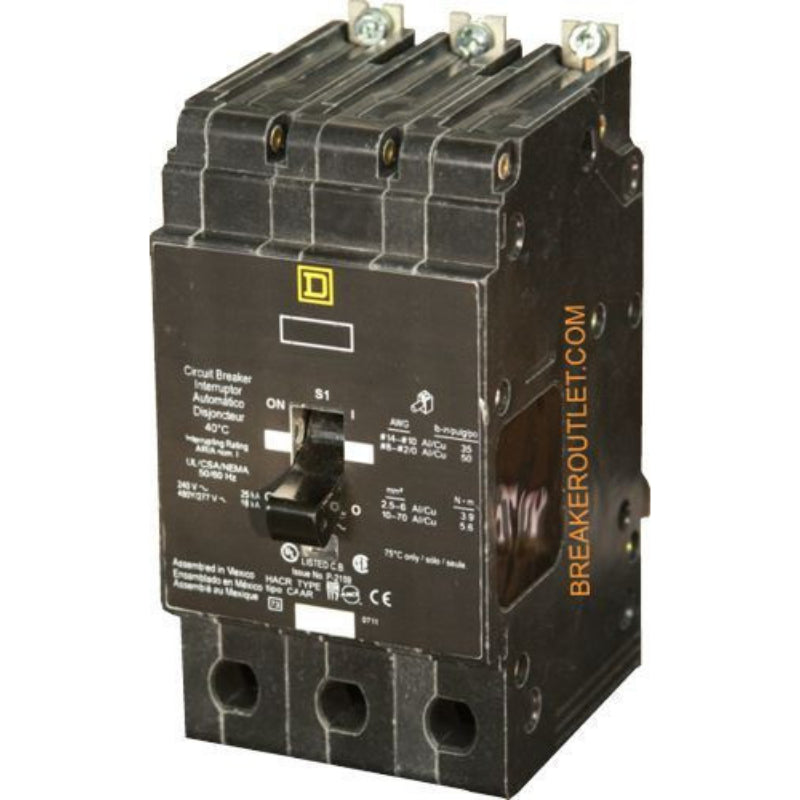

EJB34080SA
- Branch Type
- Class 515 NF Series Panelboard Used On
- UL, CSA Approval
- Lighting Application
- 120/240/277 Vac At 50/60 Hz, 480 Vac Star/277 Vac At 50/60 Hz (UL/CSA) Voltage Rating
- 100 Kiloampere At 120/240 Vac, 65 Kiloampere At 480 Vac Star/277 Vac Or 277 Vac (UL/CSA) Interrupting Rating
- 80 Ampere Current Rating
- 3 Pole(S)
- 1000 To 2300 Ampere Trip Setting
- Frame Type E
- Mounting Type Bolt On
- Size 2.94 Inch W X 4.05 Inch D X 5.66 Inch H
- Tripping Method Thermal Magnetic
- Terminal Wire Size 12 To 2/0 AWG (Aluminum), 14 To 2/0 AWG (Copper)
- With 120 Vac Shunt Trip Package
- EJB Model
