Overview

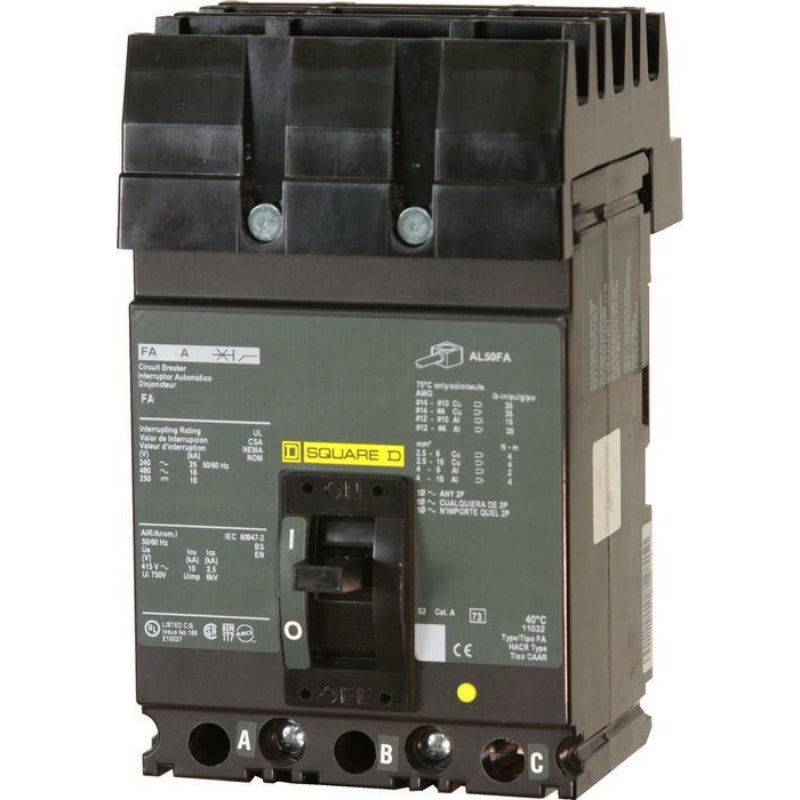

FA36030

  • Molded Case, Thermal Magnetic
  • I-Line Panelboard And Switchboard Used On
  • Plug-On Installation
  • Ul 489, Csa, Iec, Federal Specification W-C-375B/Gen Approval
  • Construction, Commercial Building, Control Equipment Panel, Industrial Building, Oem Commercial Application
  • 600 Volt Ac, 250 Volt Dc Voltage Rating
  • 14 Kiloamp At 600 Volt Ac Interrupting Rating
  • 30 Amp Current Rating
  • 3 Pole(S)
  • 275 Amp Hold, 600 Amp Trip Trip Setting
  • I-Line[Tm], Powerpact[Tm] Brand
  • Frame Type F
  • Phase Connection Type Abc
  • Size 4.5 Inch Width X 4.13 Inch Depth X 6 Inch Height
  • Mounting Height 5.5 Inch
  • Wire Size (1) 12 To 4 Awg (Aluminum) Or (1) 14 To 4 Awg (Copper)
  • FA Model
  • New or Re-certified (Gray Label)

Plug in or also known as I-LINE, Manufactured by Schneider Electric and Square D Company. Products available through www.breakeroutlet.com. FH high-interrupting is 25k rated, FC high interrupting is 65k rated and IF or FI is the highest rated at 200k.
