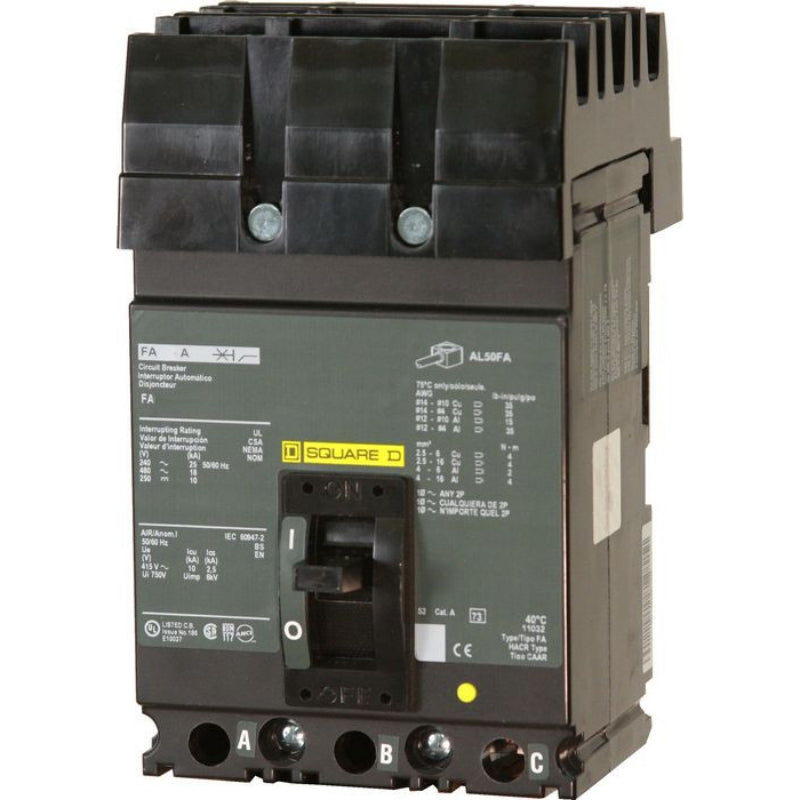

FA36080 I-Line 600V Circuit Breaker by Square D
FA36080 I-Line 600V Circuit Breaker by Square D
SKU: FA36080
Barcode: 785901338758
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
FA36080
- Thermal Magnetic, Molded Case Type
- Class 650/651 I-Line Panelboard/Switchboard Used On
- Ul, Csa Approval
- Power Distribution Application
- 600 Volt Ac At 50/60 Hertz, 250 Volt Dc Voltage Rating
- 14 Kiloamp At 480 Volt Ac, 10 Kiloamp At 250 Volt Dc Interrupting Rating
- 80 Amp Current Rating
- 3 Pole(S)
- 800 To 1450 Amp Trip Setting
- I-Line[R] Brand
- Rohs Compliant
- Size 4.5 Inch Width X 4.13 Inch Depth X 6 Inch Height
- Frame Type F
- Mounting Type Plug-On
- Terminal Wire Size 12 To 1/0 Awg (Aluminum), 14 To 1/0 Awg (Copper)
- FA Model
Plug in or also known as I-LINE, Manufactured by Schneider Electric and Square D Company. Products available through www.breakeroutlet.com. FH high-interrupting is 25k rated, FC high interrupting is 65k rated and IF or FI is the highest rated at 200k.
