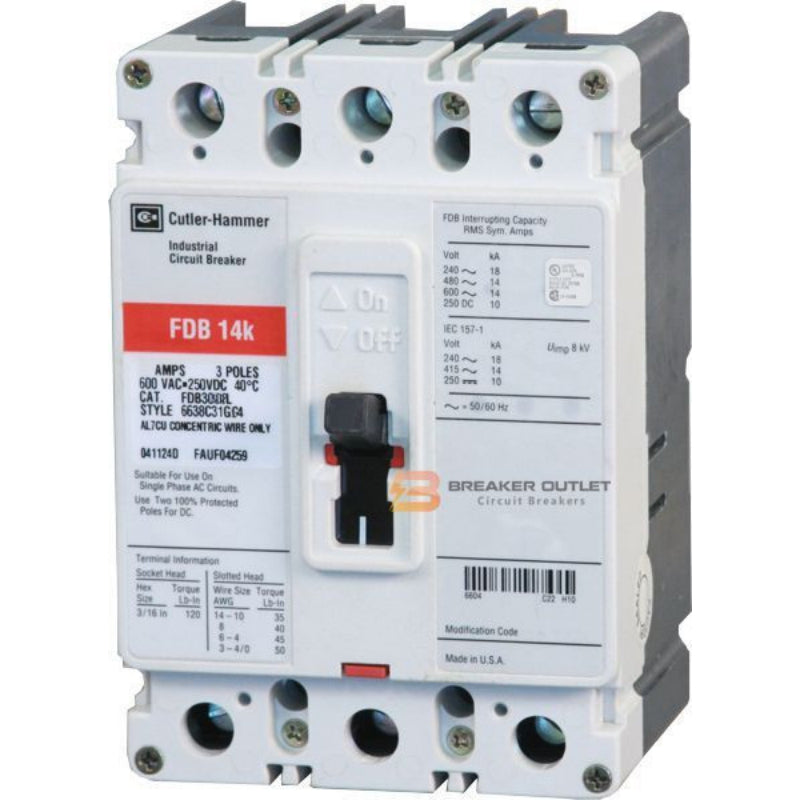

FDB3080 14k Series C Circuit Breaker by Eaton / Cutler-Hammer
FDB3080 14k Series C Circuit Breaker by Eaton / Cutler-Hammer
SKU: FDB3080
Barcode: 786679312537
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
Specifications:
- Eaton Cutler-Hammer OEM
- Series C MCCB
- Panel mount
- 80 Ampere
- 3 Pole
- 14k rated @ 480VAC
- 600 VAC
- Thermal magnetic
- Fixed Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
FDB3080 3 Pole 600V Molded case circuit breaker by Eaton / Cutler-Hammer, thermal magnetic, F frame or FDB, 600 VAC at 50/60 hz, 250 VDC, 15 ampere at 40 deg c, 3 pole, interrupting rating 18 kiloampere at 240 VAC, 14 kiloampere at 480/600 VAC, 10 kiloampere at 250 VDC (ul), 18 kiloampere at 220/240 VAC, 14 kiloampere at 380/415/440/500 VAC, 10 kiloampere at 250 VDC (iec), terminal standard pressure line terminal, standard pressure load terminal, size 4.125 inch w x 3.375 inch d x 6 inch h, approval ul, FDB model, applicable standard iec 157-1. For further products details call office. FDB3080.
