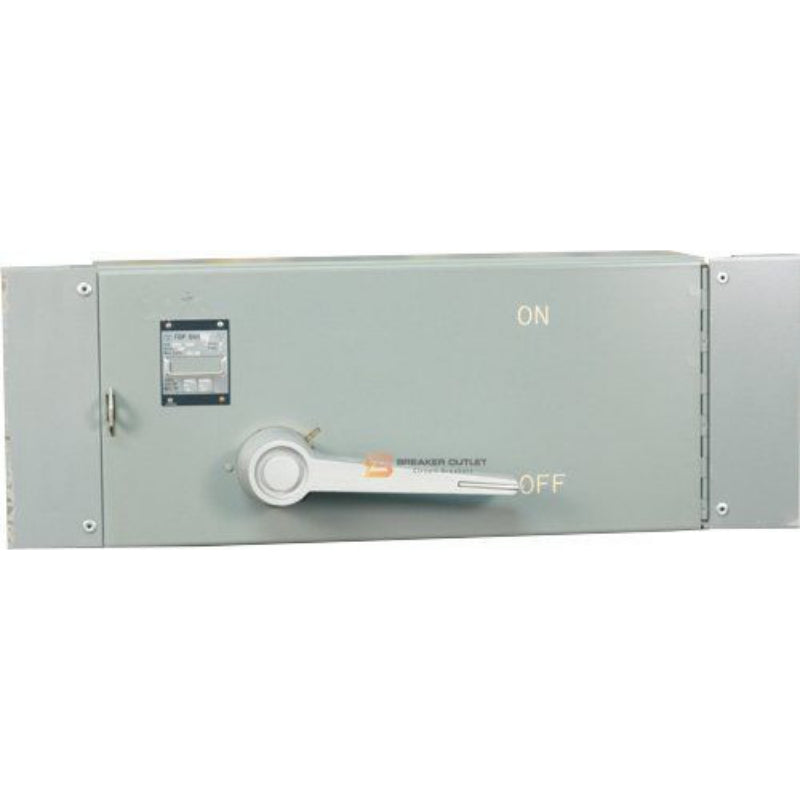

FDPWT3633J Fusible Panel Board Fusible Switch Eaton/ Cutler Hammer
FDPWT3633J Fusible Panel Board Fusible Switch Eaton/ Cutler Hammer
SKU: FDPWT3633J-R
Barcode: 786679833827
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
FDPWT3633J
Dual/Twin 100A fusible Switch, Eaton / Cutler Hammer disconnects, Fusible Panelboard Switch, rated 600V. Bus Conductor Hardware mounting kit sold separately. Designed for commercial, industrial and service entrance applications to protect and switch feeder and branch circuits. Sold as refurbished/green -Quality Control-
FUSIBLE, TWIN, HORIZONTAL TYPE; 22 INCH WIDTH SIZE; CDP/PRL-4-F SERIES PANELBOARD CHASSIS USED ON; 14 TO 1/0 AWG (COPPER/ALUMINUM) WIRE SIZE; 600 VOLT AC VOLTAGE RATING; 100 AMP CURRENT RATING; 30 HP AT 240 VOLT AC, 60 HP AT 480 VOLT AC, 75 HP AT 600 VOLT AC POWER RATING; 3 POLE(S); INTERRUPTING RATING 200 KILOAMP AT 240/480/600 VOLT AC; NUMBER OF PHASE 1; FUSE TYPE CLASS J; FDPW MODEL
