FXD63B090 Siemens Sentron & FXD6-A Molded Case Circuit Breaker 90 A 3 Pole 600 VAC FD 250A Frame Thermal Magnetic 65 kA
FXD63B090 Siemens Sentron & FXD6-A Molded Case Circuit Breaker 90 A 3 Pole 600 VAC FD 250A Frame Thermal Magnetic 65 kA
2 in stock
Couldn't load pickup availability
Overview

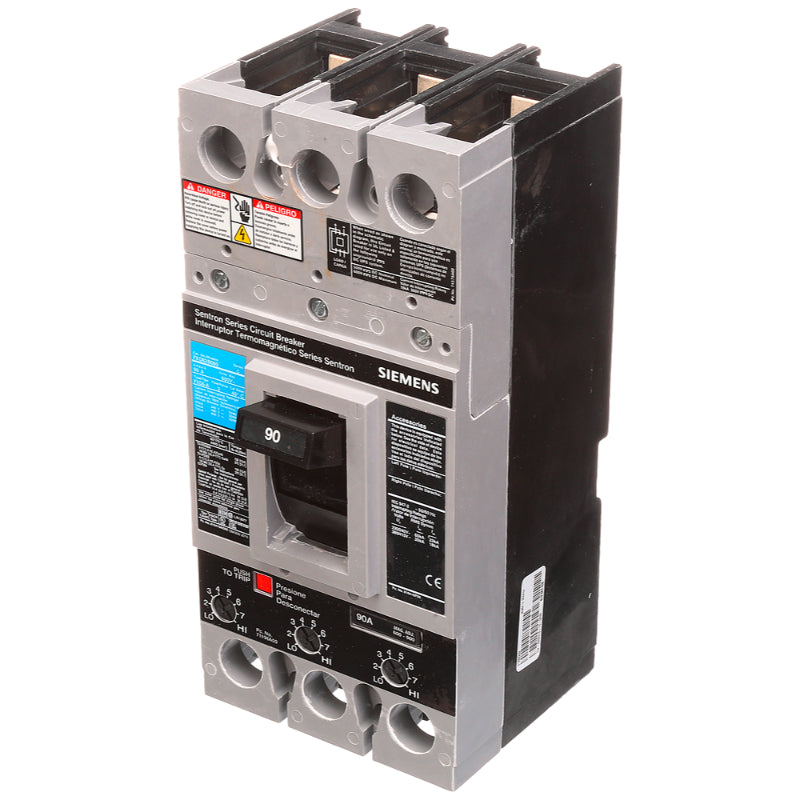

The Siemens Sentron FXD63B090 is a 90 A, 3-pole FD-frame molded-case circuit breaker with a non-interchangeable thermal-magnetic trip unit. It is rated for systems up to 600 VAC, with UL 489 interrupting capacities of 65 kA at 240 VAC, 35 kA at 480 VAC, and 22 kA at 600 VAC.
- 90 A, 3-pole, FD 250 A frame
- Thermal-magnetic protection
- No lugs installed
- UL 489 / IEC 60947-2 breaker
Verify panelboard or enclosure compatibility, conductor terminals, and the required interrupting rating before ordering.
