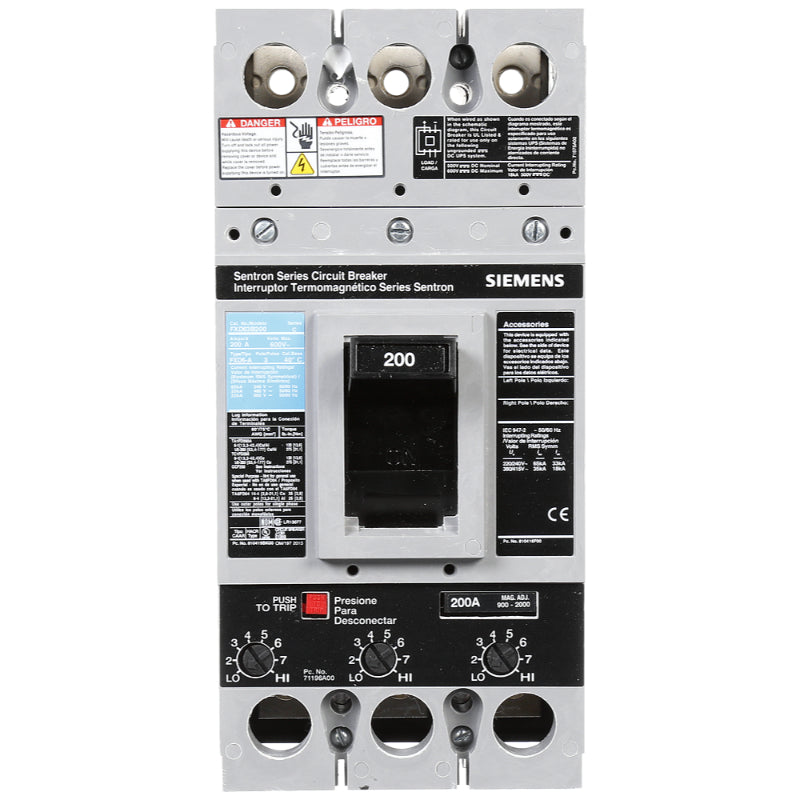

FXD63B200 Siemens Sentron & FXD6-A Molded Case Circuit Breaker 200 A 3 Pole 600 VAC FD 250A Frame Thermal Magnetic 65 kA
FXD63B200 Siemens Sentron & FXD6-A Molded Case Circuit Breaker 200 A 3 Pole 600 VAC FD 250A Frame Thermal Magnetic 65 kA
Couldn't load pickup availability
Overview
Siemens low voltage sentron molded case circuit breaker with thermal - magnetic trip unit. Standard 40 deg C breaker FD frame with standard breaking capacity and non-interchangeable trip. Meets UL 489 / IEC 60947-2 standards. 200A 3-Pole breaker (22kAIC at 600V) (35kAIC at 480V). Special features: no lugs installed. Dimensions (W x H x D) in: 4.5 x 9.5 x 4. TA1FD350A lugs NOT included and should be purchased separately.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| AC Voltage Rating | 600 V |
| DC Voltage Rating | 500 V |
| Current Rating | 200 A |
| Interrupt Rating | UL 489: 65 kA @ 240 V ac, 35 kA @ 480 V ac, 22 kA @ 600 V ac, 18 kA @ 500 V dc;IEC 947-2: 65 kA @ 220/240 V ac, 33 kA @ 220/240 V ac, 35 kA @ 380/415 V ac, 18 kA @ 380/415 V ac |
| High Current Trip Setting | 2000 A |
| Low Current Trip Setting | 900 A |
| Trip Type | Adjustable;Non-Interchangeable |
| Trip Mechanism | Thermal Magnetic |
| Frequency Rating | 50/60 Hz |
| Number of Poles | 3 |
| Frame Size | FD 250A |
| Phase | Three |
| Actuator Type | Toggle |
| Operating Temperature Rating | 40 °C |
| Short Circuit Protection (Yes/No) | Yes |
| Overload Protection (Yes/No) | Yes |
| Height | 9.5 in |
| Width | 4.5 in |
| Depth | 4 in |
| For Use With | Panel Board;Switchboard;Enclosure |
| Certifications | UL 489;IEC 60947-2;CSA C22.2 NO. 5-16/NMX-J266-ANCE-2016;WEEE (2012/19/EU);RoHS Compliant;HACR Rated |
| Weight | 8.803 lb |
| Package Quantity | 1 piece |
| Country of Origin | Mexico |
