Siemens

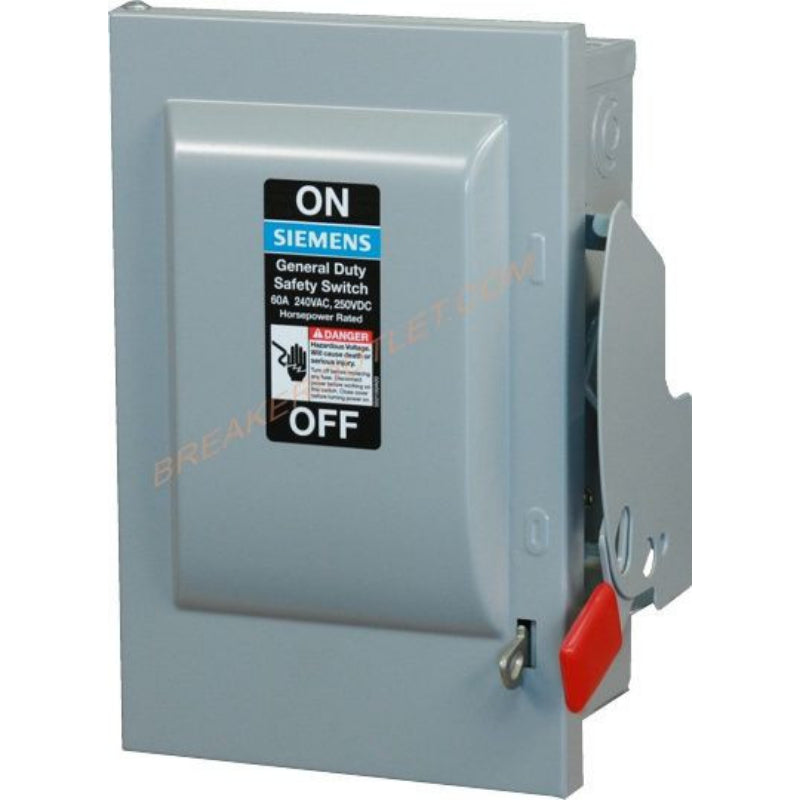

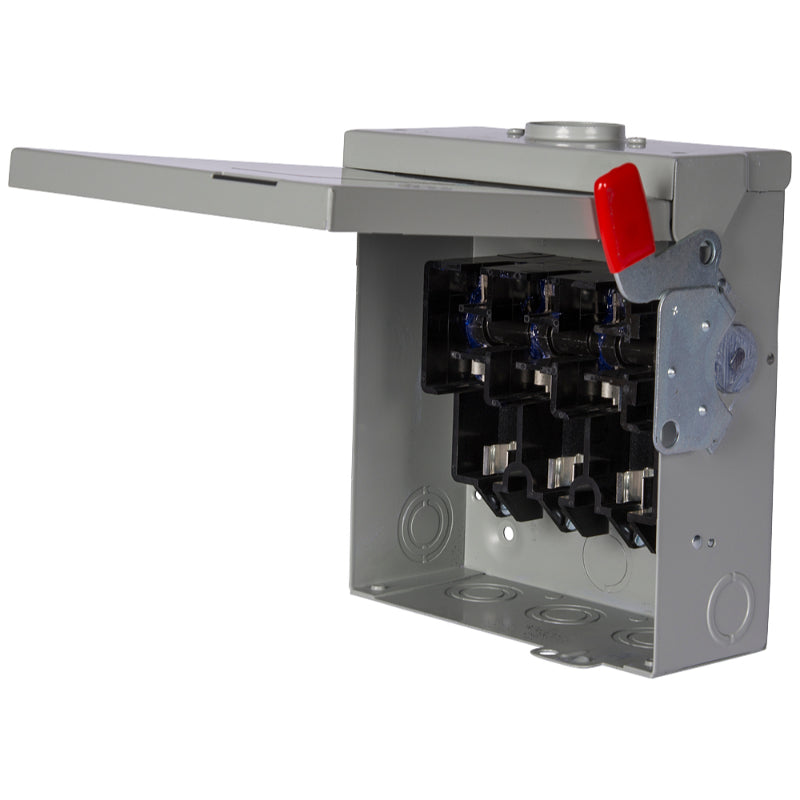

GF322NR Siemens VBII Series Safety Switch 240 VAC & 250 VDC 60 A Fusible 3PST 3 Pole Galvanized Steel

SKU: GF322NR

Barcode: 783643149298

Call (800) 321-8998 for pricing and availability.

Shipping calculated at checkout.

Condition: New

New

Fast Processing & Free ShippingOrders typically ship within 1 business day. Free shipping on orders over $100 and under 70 lbs to the contiguous U.S. See shipping policy
30-Day ReturnsReturns are accepted for 30 days after delivery for most of our products. See return policy
1-Year WarrantyEvery purchase is backed by our 1-year warranty, offering repair, replacement, or refund on eligible claims. See warranty policy

Overview

Siemens low voltage circuit protection general duty safety switch. 3-Pole 3-fuse and solid neutral fused in A type 3R enclosure (outdoor). Rated 240V ac (60A). Horse power (STD, time delay) fused: 1-PH 2-W (3, 10), 3-PH 3-W (7-1/2, 15), 250V dc (10). Special features: service entrance labeled.

Quick-make and break switching action
Double break visible blade design
Highly visible ON/OFF indication
Rugged installer friendly enclosure design
Modular design allows quick and easy replacement of parts
Single cover interlock

Specifications

Brand	Siemens
Product Type	Safety Switch
Voltage Rating	240 V ac; 250 V dc
Current Rating	60 A
Contact Configuration	3PST
Switch Action	Make and Break
Protection Method	Fusible
Frequency Rating	60 Hz
Horsepower Rating	3 hp @ 240 V ac (1 Phase); 7-1/2 hp @ 240 V ac (3 Phase); 10 hp @ 250 V dc; 10 hp @ 240 V ac (1 Phase); 15 hp @ 240 V ac (3 Phase)
Interrupt Rating	10 kA
Phase	Single; Three
Housing Material	Galvanized Steel
Number of Poles	3
Number of Wires	4
Duty Type	General Duty
Wire Size	12 to 3 AWG; 14 to 3 AWG; 14 to 4 AWG
Fuse Class	Class H; Class R
Handle Color	Red
Mounting Type	Surface
Number of Mounting Holes	3
Mounting Position	Horizontal
Terminal Type	Lug
Resistance Properties	Corrosion Resistant; Vibration Resistant; Shock Resistant; Tilt Resistant
Depth	8.63 in
Width	8.7 in
Height	14.39 in
NEMA Rating	NEMA 3R; NEMA KS-1
Mechanical Operating Durability	10000 cycles
Operating Temperature Rating	-29 to 85 °C
Application	Outdoor
Certifications	UL98; UL50; UL E4776
Weight	12.875 lb
Package Quantity	1 Piece
Country of Origin	Mexico

Technical Documents

PDF

Technical Specifications Sheet
