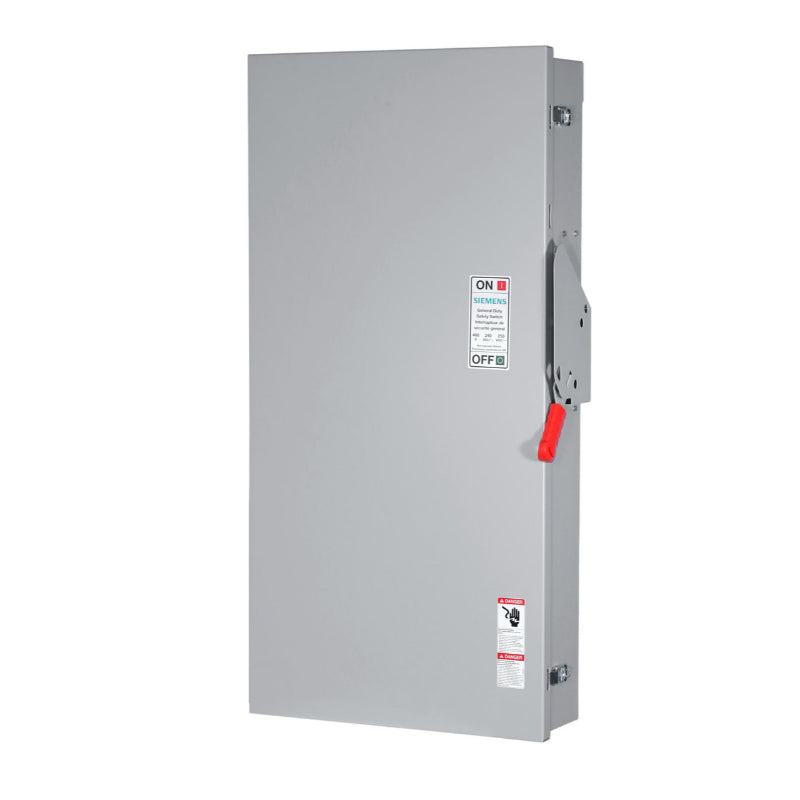

GF325NA Siemens A & VBII Series Safety Switch 240 V 400 A Fusible 3PST 3 Pole

Siemens

GF325NA Siemens A & VBII Series Safety Switch 240 V 400 A Fusible 3PST 3 Pole

SKU: GF325NA

Barcode: 887621872496

$1,175.00

Shipping calculated at checkout.

5 in stockReady to ship from our warehouses

Condition: New

New

Fast Processing & Free ShippingOrders typically ship within 1 business day. Free shipping on orders over $100 and under 70 lbs to the contiguous U.S. See shipping policy
30-Day ReturnsReturns are accepted for 30 days after delivery for most of our products. See return policy
1-Year WarrantyEvery purchase is backed by our 1-year warranty, offering repair, replacement, or refund on eligible claims. See warranty policy

Overview

Siemens low voltage circuit protection general duty safety switch. 3-Pole 3-fuse and solid neutral fused in A type 1 enclosure (indoor). Rated 240V ac (400A). Horse power (STD, time delay) fused: 1-PH 2-W (15, - ), 3-PH 3-W (50, 125), 250V dc (50). Special features: service entrance labeled. Same day shipping

Cover interlock
Tangential knockouts through 100-600A for easy conduit lineup
Quick-make, quick-break operating mechanism that ensures positive operation

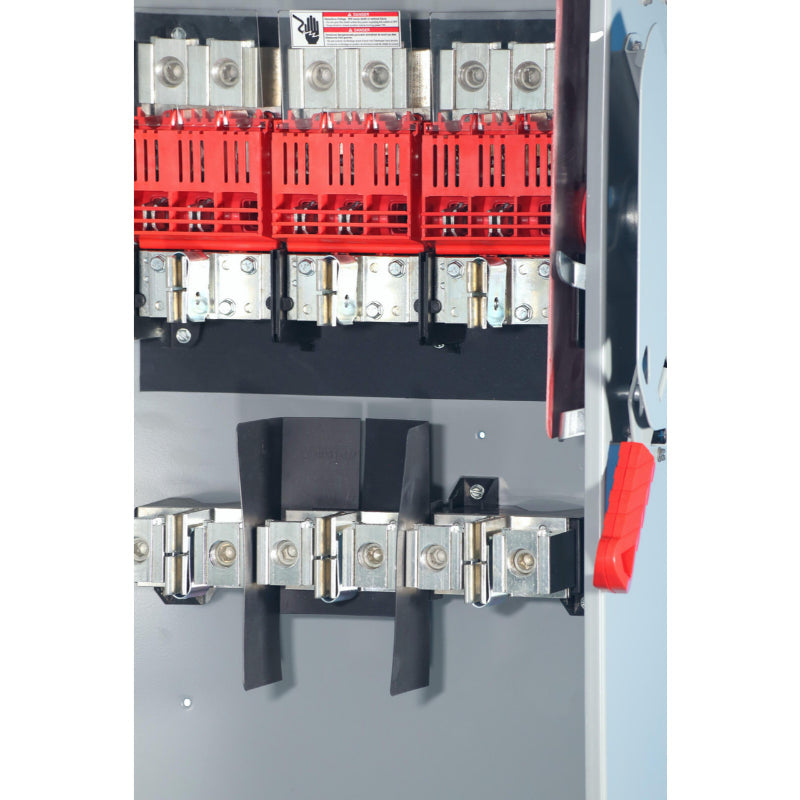

Provisions for T, R, J, H and K class fuses (T & J 200-600A)
Wiring gutters that meet or exceed NEC wire bending space requirements
Visible blade, double-break switch action
Positive two- or three-point mounting

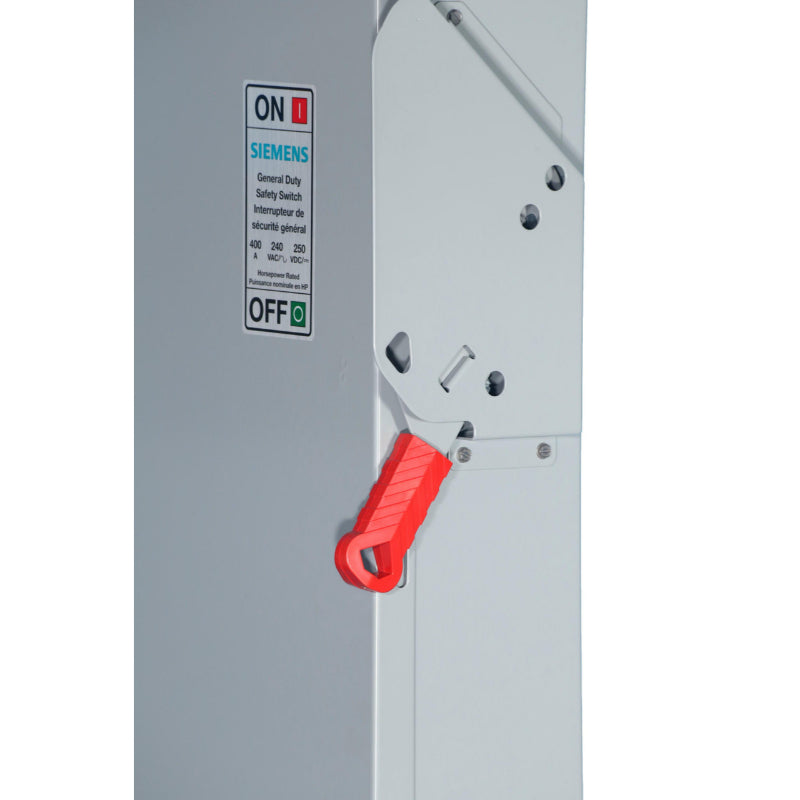

Highly visible red handle grip

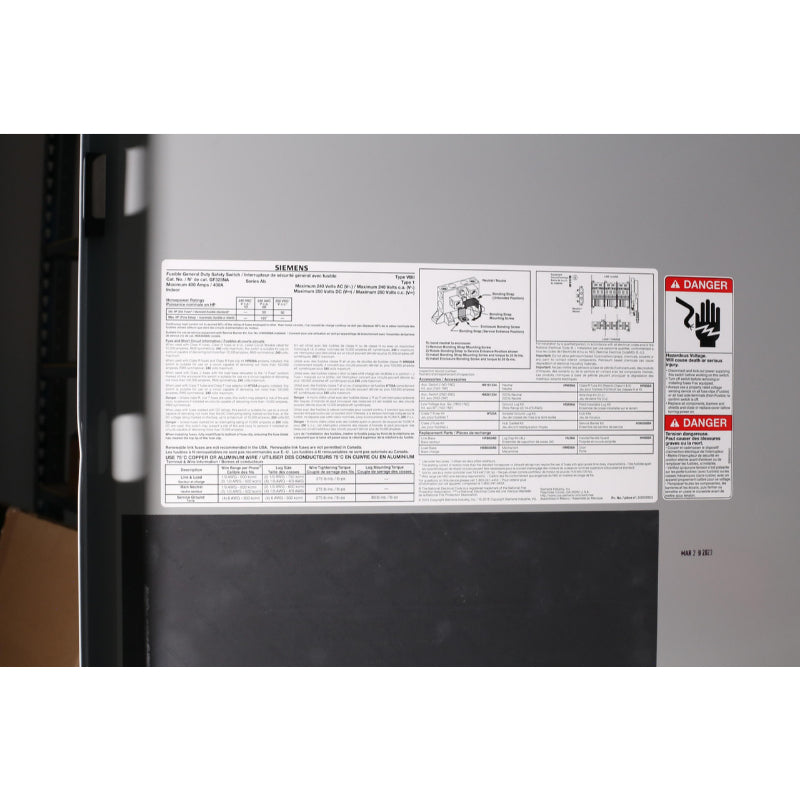

Informative door labeling which includes replacement parts list
Handle and cover padlocking provisions

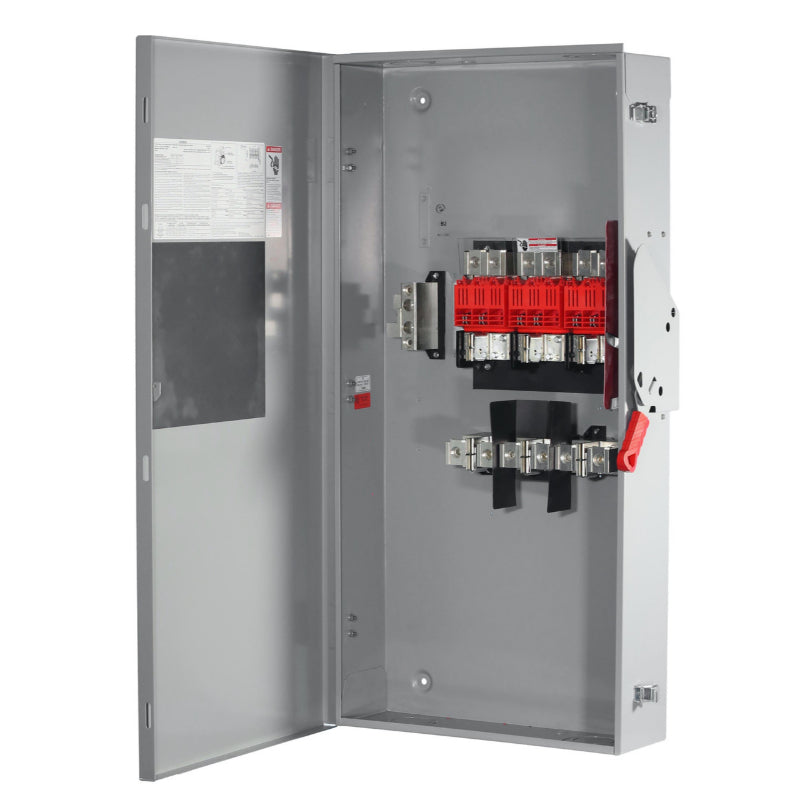

100A and above have side-hinged door that opens 180 degrees for easier wiring

Specifications

Brand	Siemens
Product Type	Safety Switch
Voltage Rating	240 V
Current Rating	400 A
Contact Configuration	3PST
Switch Action	Make and Break
Protection Method	Fusible
Frequency Rating	60 Hz
Horsepower Rating	50 hp @ 240 V ac
Interrupt Rating	10 kA
Phase	Three
Housing Material	Steel
Number of Poles	3
Number of Wires	4
Duty Type	General Duty
Fuse Class	Class H; Class J; Class K; Class R; Class T
Handle Color	Red
Handle Style	Padlock
Mounting Type	Surface
Number of Mounting Holes	4
Mounting Position	Vertical
Terminal Type	Lug
Resistance Properties	Corrosion Resistant; Vibration Resistant; Shock Resistant; Tilt Resistant
Depth	13.1 in
Width	22 in
Height	40 in
NEMA Rating	NEMA 1; NEMA KS-1
Operating Temperature Rating	-29 to 85 °C
Application	Indoor
Certifications	UL98; CSA Listed; UL E4776
Weight	94.583 lb
Package Quantity	1 Piece
Country of Origin	Mexico

Technical Documents

PDF

Technical Specifications Sheet
