Overview

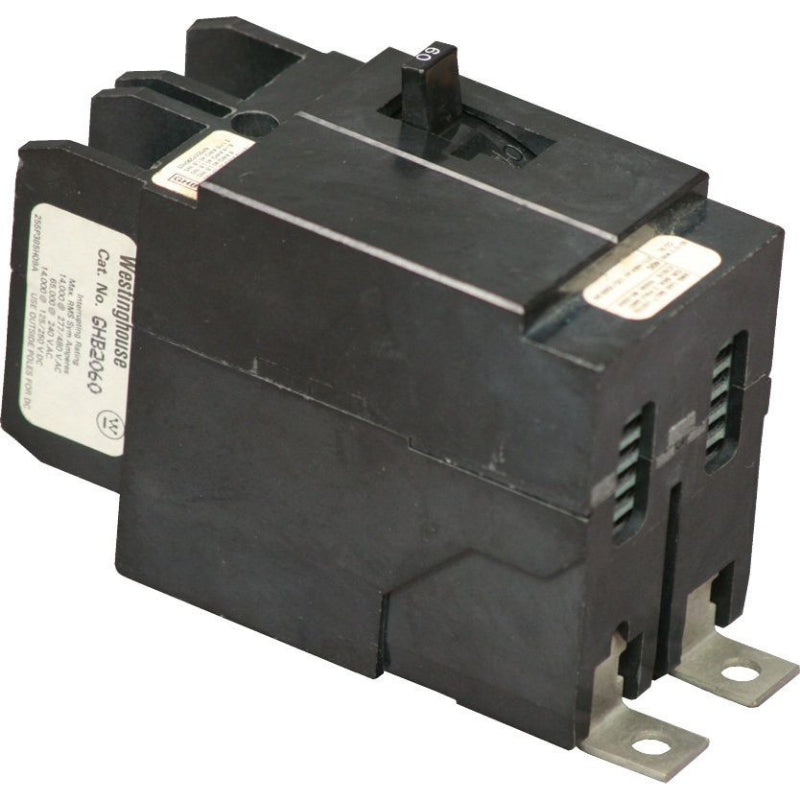

The Eaton GHB2060 is a 60A, two-pole Series C G-frame molded case circuit breaker with a fixed thermal-magnetic trip and bolt-on mounting. Rated for 480Y/277V AC and 125/250V DC, it provides 14kA interrupting capacity at 480Y/277V AC and 65kA at 240V AC.

Specifications

Brand Eaton
Manufacturer Part Number GHB2060
Product Type Molded Case Circuit Breaker
Series Series C
Frame Size G-Frame
Circuit Breaker Type GHB
Current Rating 60 A
Number of Poles 2
AC Voltage Rating 480Y/277 V AC
DC Voltage Rating 125/250 V DC
Frequency 50/60 Hz
Trip Mechanism Fixed Thermal-Magnetic
Trip Type T186
Mounting Type Bolt-On
Interrupt Rating 65 kAIC at 240 V AC; 14 kAIC at 480Y/277 V AC
Height 4 in
Width 2 in
Depth 2.63 in
Net Weight 1.15 lb
Certification UL Listed
UPC 786679172407
