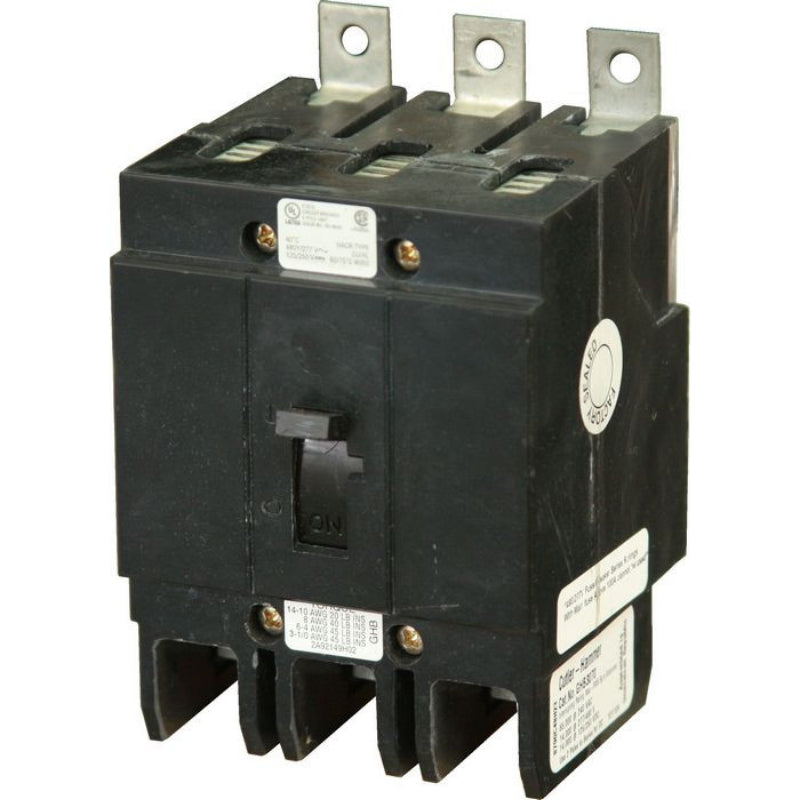

Eaton GHB3090 90A 3-Pole Bolt-On Circuit Breaker, 14kA at 480Y/277V
Eaton GHB3090 90A 3-Pole Bolt-On Circuit Breaker, 14kA at 480Y/277V
7 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
The Eaton GHB3090 is a 90A, 3-pole Series C G-frame molded case circuit breaker with fixed thermal-magnetic protection. Designed for 480Y/277V AC applications, it provides 14kA interrupting capacity at 480Y/277V AC and 65kA at 240V AC. The breaker uses a bolt-on mounting configuration.
Specifications
| Brand | Eaton |
|---|---|
| Manufacturer Part Number | GHB3090 |
| Product Type | Molded Case Circuit Breaker |
| Series | Series C |
| Frame Size | G-Frame |
| Circuit Breaker Type | GHB |
| Current Rating | 90 A |
| Number of Poles | 3 |
| AC Voltage Rating | 480Y/277 V AC |
| DC Voltage Rating | 125/250 V DC |
| Frequency | 50/60 Hz |
| Trip Mechanism | Fixed Thermal-Magnetic |
| Trip Type | T186 |
| Mounting Type | Bolt-On |
| Interrupt Rating | 14 kAIC at 480Y/277 V AC; 65 kAIC at 240 V AC |
| Height | 4 in |
| Width | 3 in |
| Depth | 2.63 in |
| Net Weight | 1.75 lb |
| Certification | UL Listed |
| UPC | 786679911327 |
