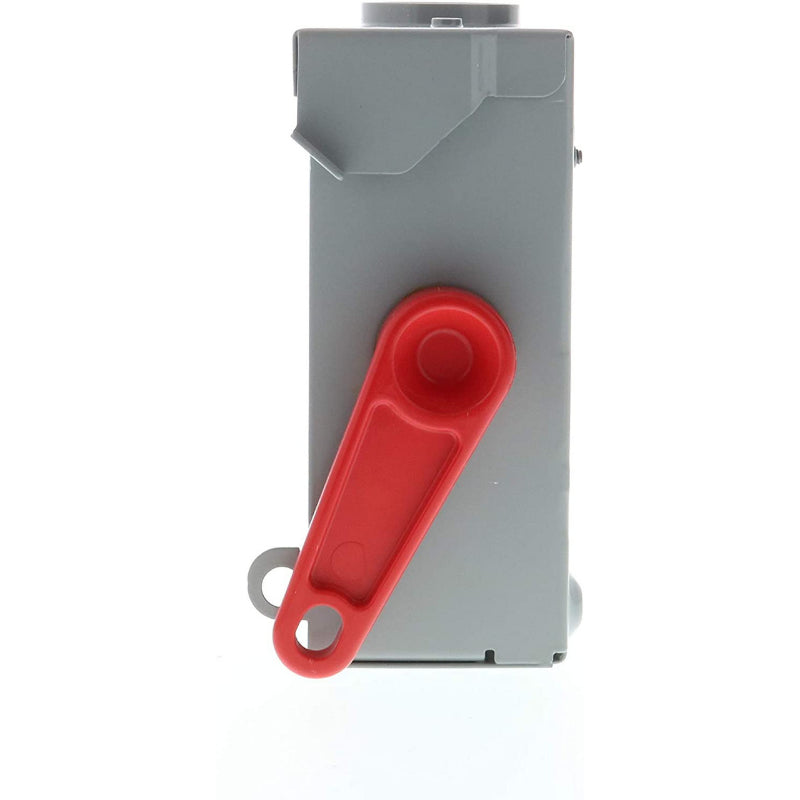

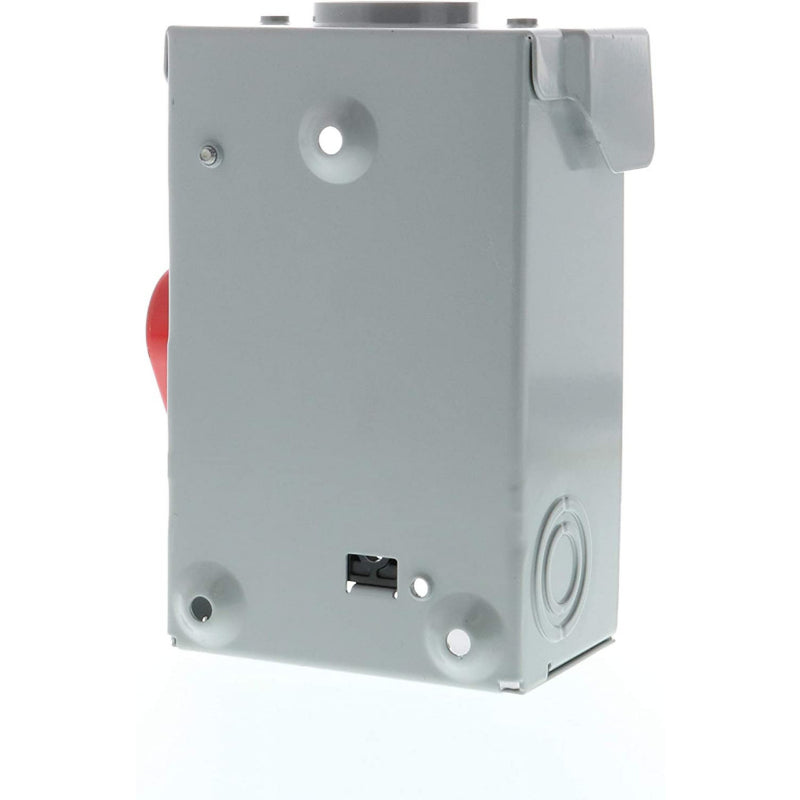

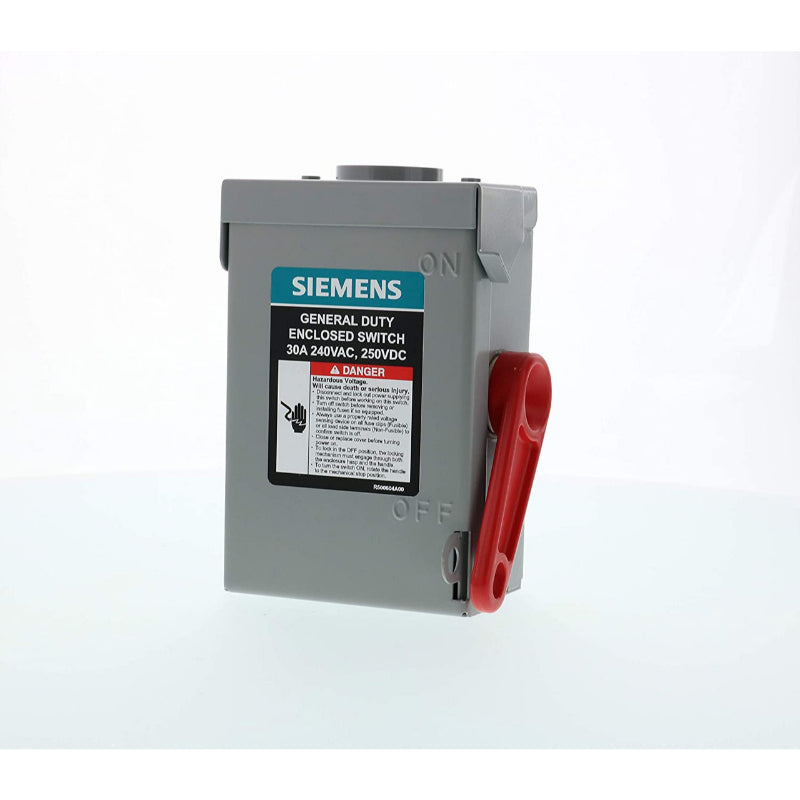

GNF221RA Siemens A & VBII Series Safety Switch 240 V 30 A Non-Fusible 2 Pole
GNF221RA Siemens A & VBII Series Safety Switch 240 V 30 A Non-Fusible 2 Pole
3 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
Siemens low voltage VBII double-break enclosed safety switch. Series A 2-Pole 2-wire non-fused general duty switch. Rated 240V 30A. Special features: NEMA type 3R outdoor enclosure.
- Cover interlock
- Tangential knockouts through 100-600A for easy conduit lineup
- Quick-make, quick-break operating mechanism that ensures positive operation
- Provisions for T, R, J, H and K class fuses (T & J 200-600A)
- Wiring gutters that meet or exceed NEC wire bending space requirements

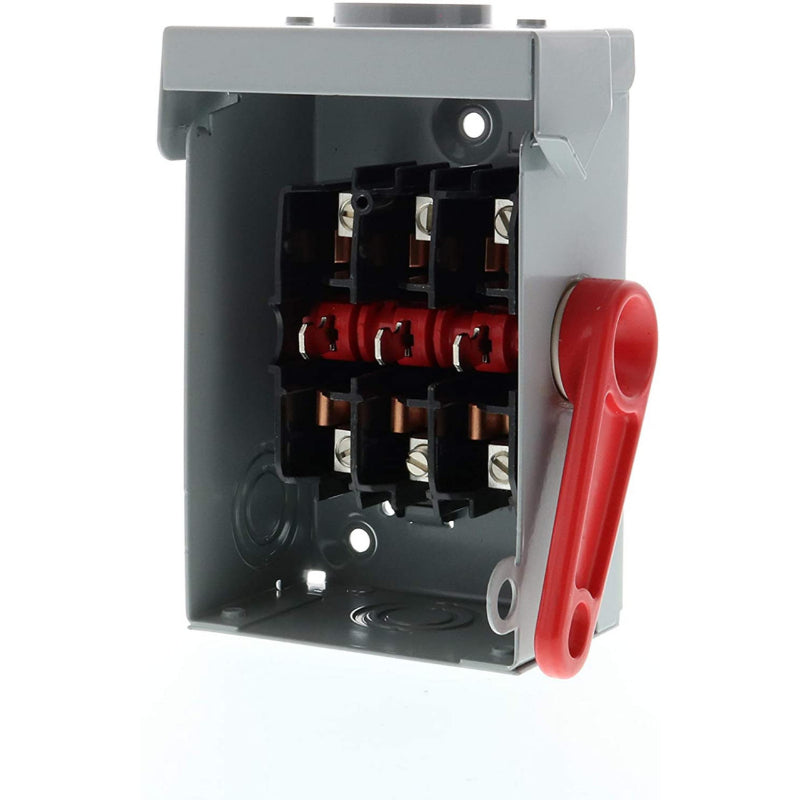

- Visible blade, double-break switch action
- Positive two- or three-point mounting
- Highly visible red handle grip
- Informative door labeling which includes replacement parts list
- Handle and cover padlocking provisions
- 100A and above have side-hinged door that opens 180 degrees for easier wiring
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Safety Switch |
| Voltage Rating | 240 V |
| Current Rating | 30 A |
| Switch Action | Make and Break |
| Protection Method | Non-Fusible |
| Frequency Rating | 60 Hz |
| Interrupt Rating | 10 kA |
| Phase | Single |
| Number of Poles | 2 |
| Number of Wires | 2 |
| Duty Type | General Duty |
| Wire Size | 14 to 2 AWG (Line and Load Terminal) |
| Fuse Class | Class H; Class J; Class K; Class R; Class T |
| Handle Color | Red |
| Handle Style | Padlock |
| Mounting Type | Surface |
| Number of Mounting Holes | 3 |
| Mounting Position | Vertical |
| Terminal Type | Lug |
| Resistance Properties | Corrosion Resistant; Vibration Resistant; Shock Resistant; Tilt Resistant |
| Depth | 3.96 in |
| Width | 5.08 in |
| Height | 8.56 in |
| NEMA Rating | NEMA 3R; NEMA KS-1 |
| Operating Temperature Rating | -22 to 104 °F |
| Application | Outdoor |
| Certifications | UL98; UL50; UL E4776 |
| Weight | 2.006 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
