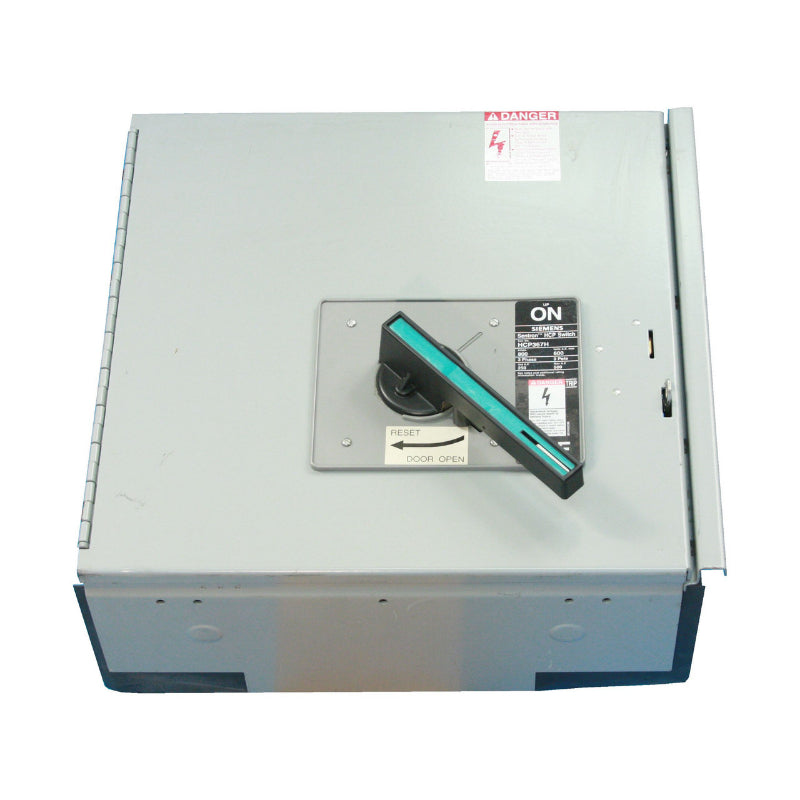

HCP367H Siemens Sentron Disconnect Switch Fusible Unit 600 V 800 A Fusible 3 Pole
HCP367H Siemens Sentron Disconnect Switch Fusible Unit 600 V 800 A Fusible 3 Pole
1 in stock
Couldn't load pickup availability
Overview

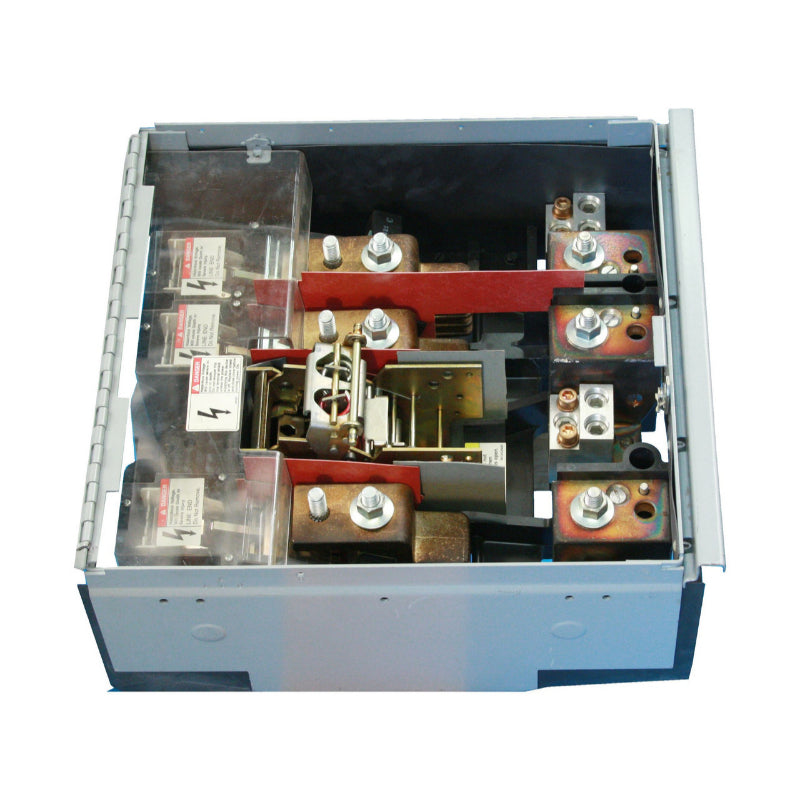

Siemens low voltage HCP switch disconnect for switch board units. 3-Pole horizontal mount switch with L class fuse provision. Rated 600v (800a). Dimensions (H x W x D) in: 16.25 x 17.22 x 7.38.
- UL listed under file number E6849 vol 1, sect. 8
- 400-1200A ratings
- Visible contacts
- Field installable shunt trip and auxiliary switch accessory kits

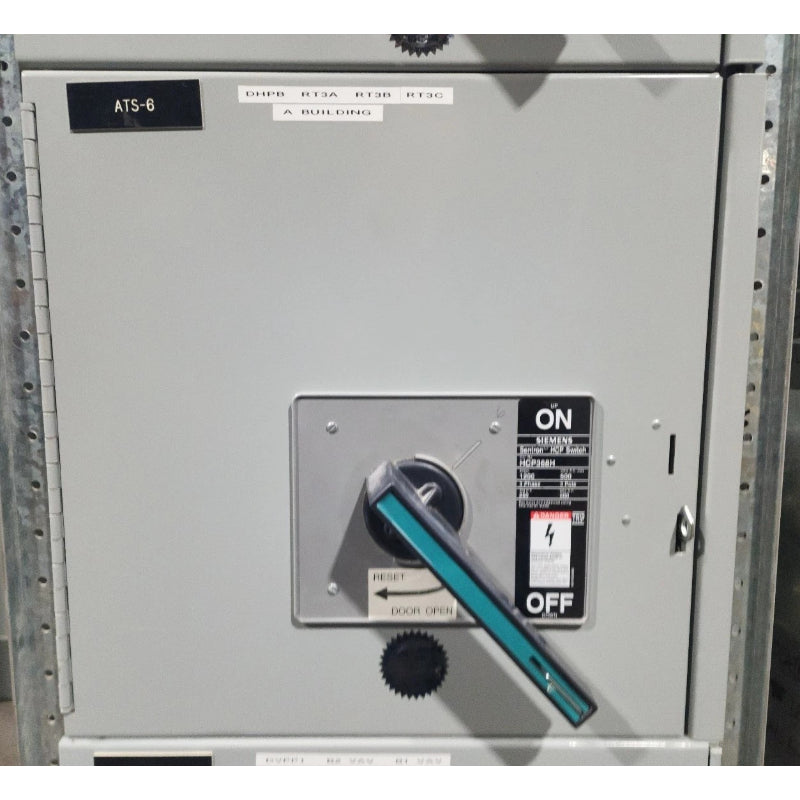

- Installs in existing Siemens switch boards and power panel boards
- Suitable for use on systems with up to 200,000a fault current, RMS symmetrical when equipped with class J or class L fuses
- Group mounts with other 30A through 600A switches, and 100 through 1200 amp frame breakers
- Allows 800A and 1200A switches in standard 38" wide distribution sections in either main or branch configurations
- 16 1⁄4" mounting height is the smallest 1200A design in the industry, allowing up to 4 units in one vertical section
- Field reversible horizontal mounting design for left or right hand cabling

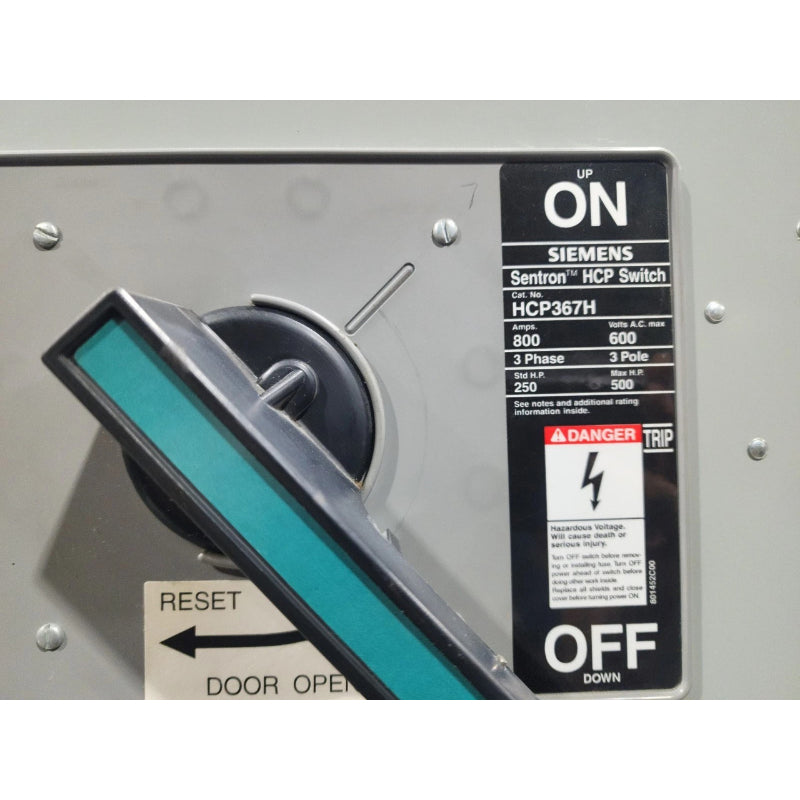

- Handle can be padlocked in the OFF position with up to three padlocks with 5/16" hasps. A cover padlocking provision is also supplied
