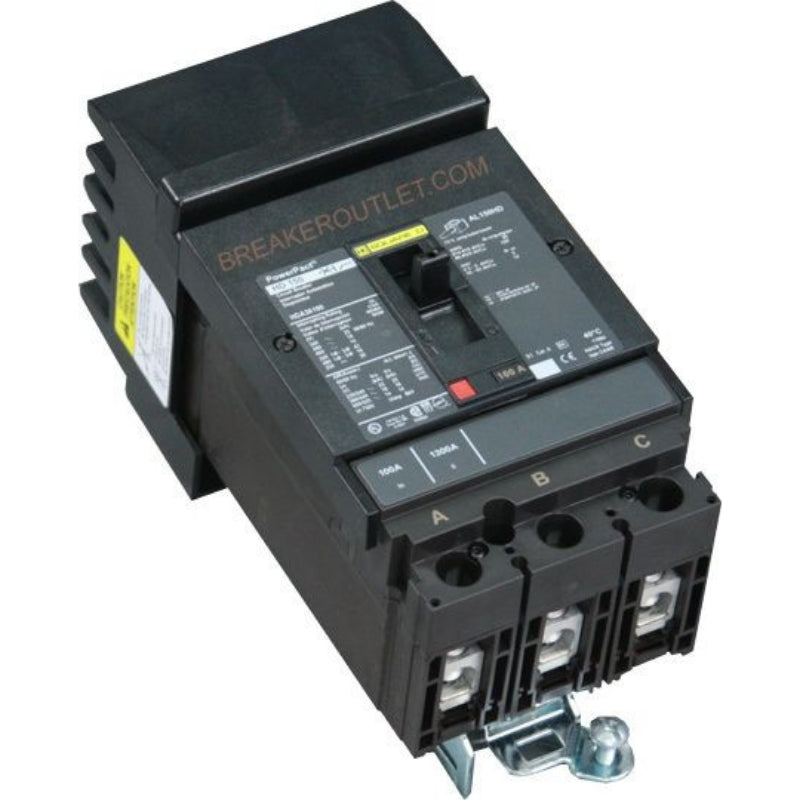

HDA36150 I-Line Power Pact Square D Circuit Breaker
HDA36150 I-Line Power Pact Square D Circuit Breaker
1 in stockReady to ship from our warehouses
Couldn't load pickup availability
Overview
The Square D by Schneider Electric HDA36150 is a 150 A, 3-pole PowerPacT H-frame molded-case circuit breaker with I-Line mounting for compatible panelboards. This 600 VAC breaker uses a thermal-magnetic trip and provides interrupting ratings of 25 kA at 240 VAC, 18 kA at 480 VAC, and 14 kA at 600 VAC.
- 150 A, 3-pole PowerPacT H frame
- I-Line connection for compatible equipment
- 25 kA at 240 V; 18 kA at 480 V; 14 kA at 600 V
- Thermal-magnetic overcurrent protection
Confirm panelboard compatibility, accessories, and conductor requirements before installation.
Specifications
| Brand | Square D by Schneider Electric |
|---|---|
| Product Type | Molded Case Circuit Breaker |
| Series | PowerPacT H |
| Frame Size | H |
| AC Voltage Rating | 600 V |
| Current Rating | 150 A |
| Interrupt Rating | 25 kA @ 240 V;18 kA @ 480 V;14 kA @ 600 V |
| Trip Mechanism | Thermal Magnetic |
| Number of Poles | 3 |
| Mounting Type | I-Line |
| Manufacturer Part Number | HDA36150 |
| UPC | 785901420002 |
