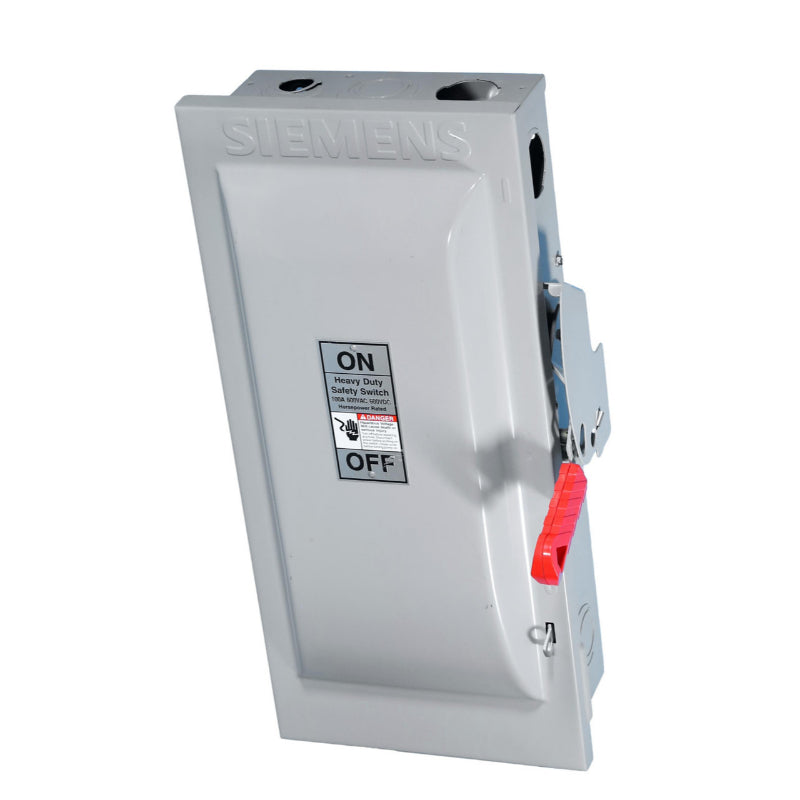

HF363N Siemens VBII Series Safety Switch 600 VAC 100 A Fusible 3PST 3 Pole Steel

Siemens low voltage circuit protection heavy duty safety switch. 3-Pole 3-fuse and solid neutral fused in A type 1 enclosure (indoor). Rated 600V ac (100A). Top notch quality. Is pristine (one only)

• Top key hole and bottom mounting holes provide easy 2 or 3-point mounting

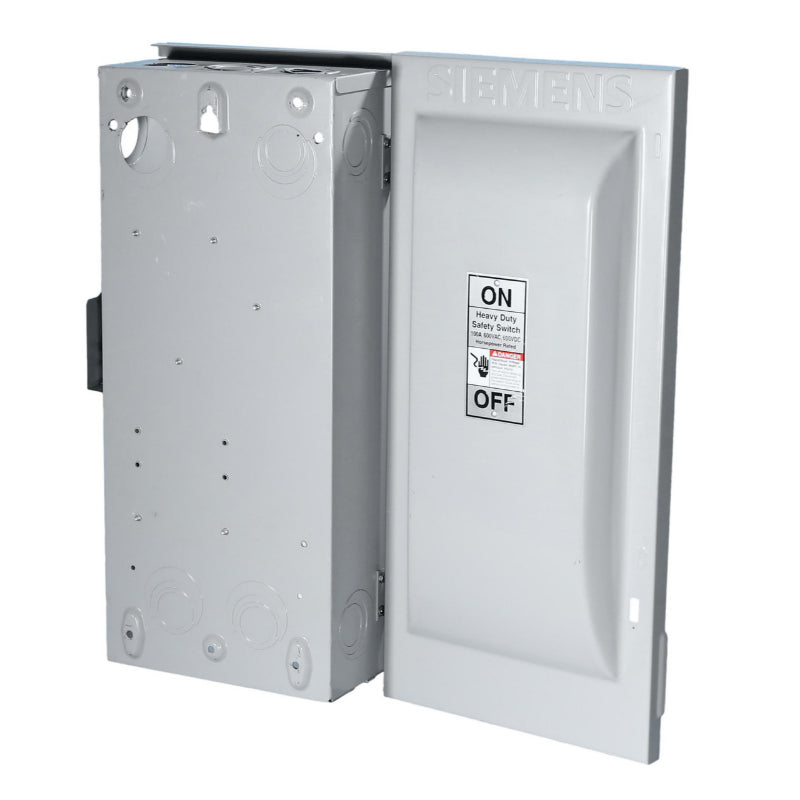

• Side hinged door opens greater than 180 degrees
• Quick make, quick break operating mechanism that ensures positive operation
• Visible blade, double break switch action
• Mechanism capable of operating for 50K cycle - 3X life
• Generous top, bottom and side wire gutters that exceed NEC wire gutter space requirements

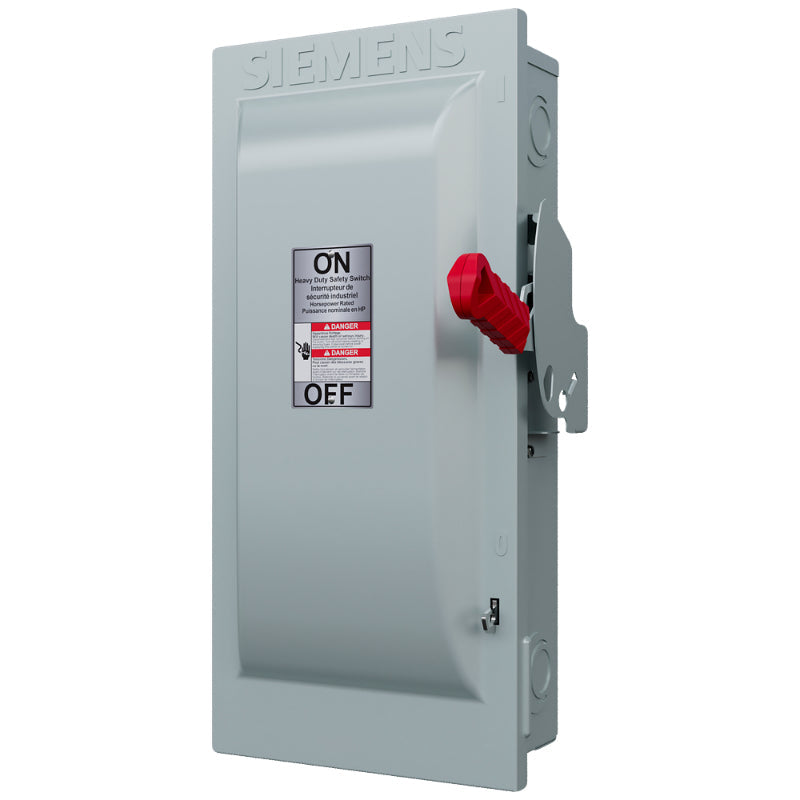

• Rugged handle with highly visible red grip
• The drawn cover design stiffens the door and increases resistance to abuse
• Unique wrap around design increases rigidity, prevents cuts and scrapes to installer’s hand and to contractor, and provides perfect sealing for water tight enclosure (NEMA 4X and 12 design). Extra ground lug on neutral eliminates the need for installers to add addition lug when required for local codes
• Multiple break current path for excellent loaded endurance, reduces heat and switching speed

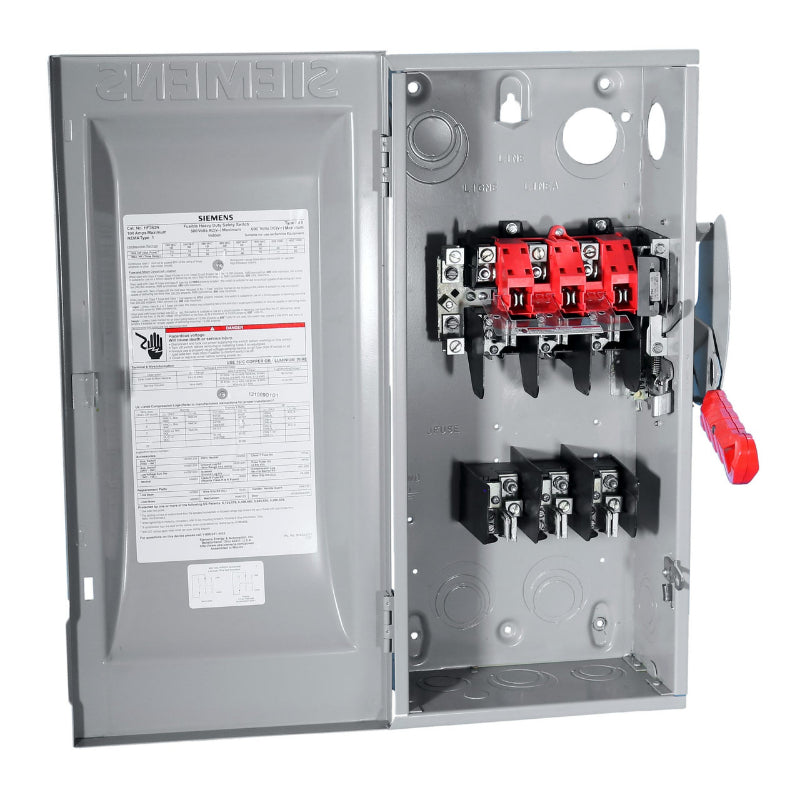

• Lay-in lugs provide for easier wiring. Lug cap is removeable and dramatically reduces the need for vertical insertion of wiring into the lug
• 400 amp switch has two lugs 1/0-750 MCM; using two wires vs. One large wire can significantly reduce installation cost

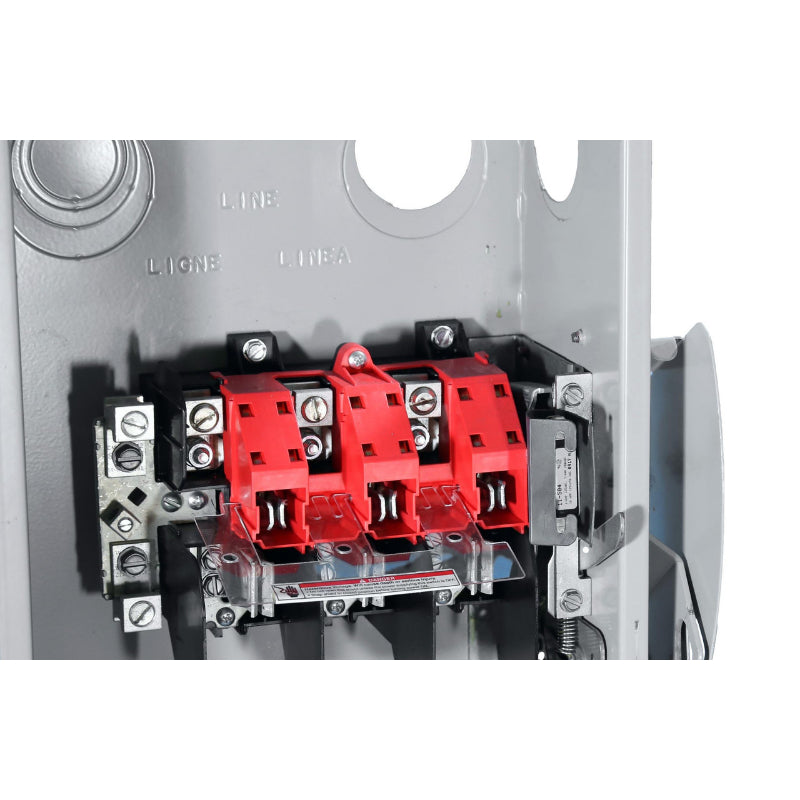

• Spring loaded fuse clip provides maintenance-free consistent contact pressure for optimum performance.
