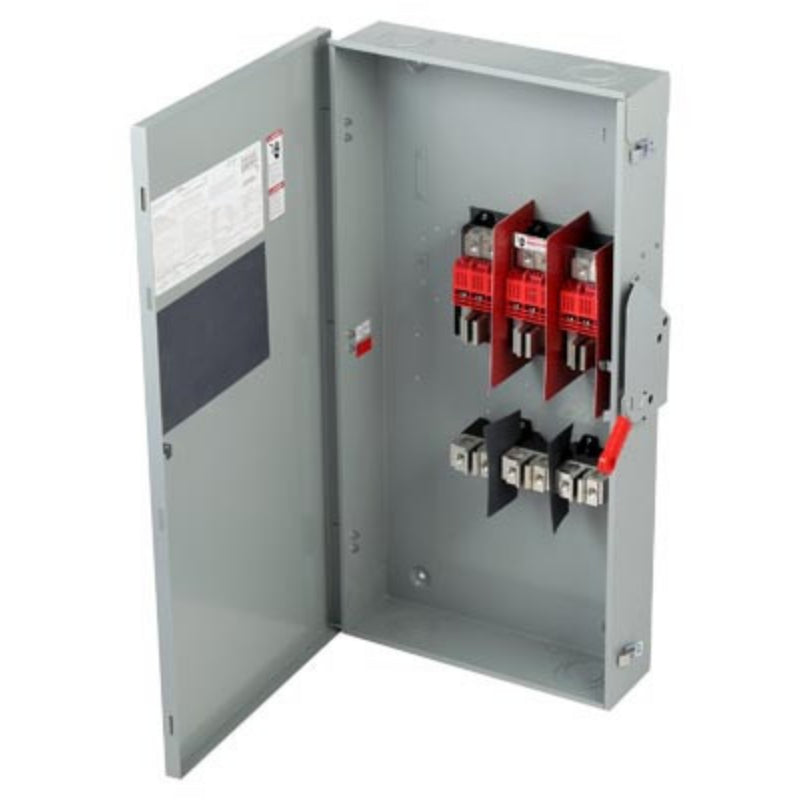

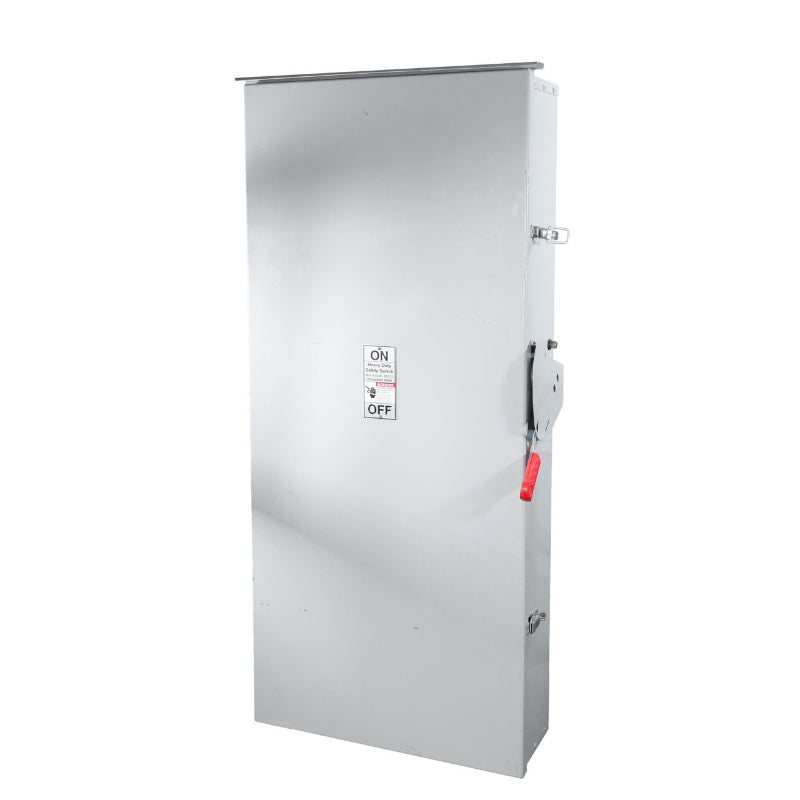

HF365R Siemens VBII Series Safety Switch 600 V 400 A Fusible 3PST 3 Pole
HF365R Siemens VBII Series Safety Switch 600 V 400 A Fusible 3PST 3 Pole
1 in stock
Couldn't load pickup availability
Overview
Outdoor 400 ampere heavy duty safety, 480/600 V ac voltage, 250 V dc voltage, 400 amp, power rating 100 hp at 480 vac 3 phase, 125 hp at 600 V ac 3 phase (standard), 250 hp at 480 V ac 3 phase, 350 hp at 600 V ac 3 phase (maximum for time delay fuse), 50 hp at 250 V dc, 3 pole, 3 wire, class h/j/k/r/t, time delay fuse, fusible fuse, no neutral, NEMA 3R, size 26.21 inch W x 14.68 inch D x 56.57 inch H, approval ul, speedfax reference, HF model, applicable standard NEMA 1.
- Quick-make and break switching action
- Visible blade design
- Highly visible ON/OFF indication
- Modular design allows quick and easy replacement of parts
- Front removable lugs which can easily be converted to copper body or compression type lugs
- Defeatable dual cover interlock
