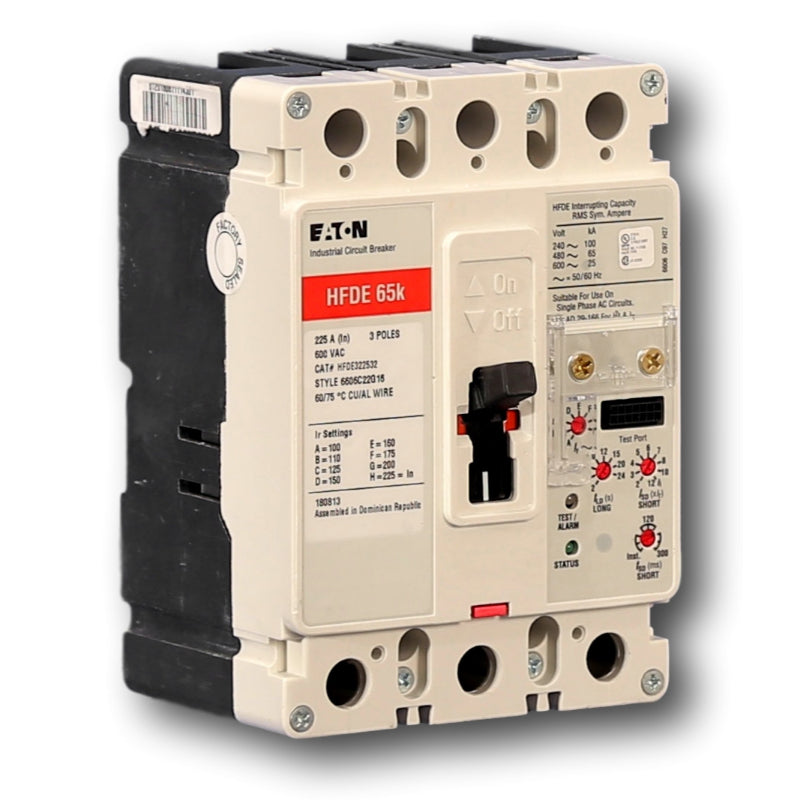

HFDE322532L Electronic Circuit Breaker Type HFDE LSI
HFDE322532L Electronic Circuit Breaker Type HFDE LSI
SKU: HFDE322532L
Barcode: 786685112565
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
HFDE322532L
- Eaton Cutler-Hammer OEM
- Series C MCCB
- Panel mount
- 160 Ampere
- 3 Pole
- 65k rated @ 480VAC
- 600 VAC
- Electronic Trip LSI
- Adjustable Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
- UPC 786685112763
- New
3 Pole, 225A, 600V 65k at 480V / solid state electronic breakers , Molded Case, F Frame, 240/480/600 Vac At 50/60 Hz, 250 Vdc (Ul 489), 160 Ampere, 3 Pole, Interrupting Rating 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 25 Kiloampere At 600 Vac, 22 Kiloampere At 250 Vdc (Ul 489), Terminal Aluminum/Copper Standard Pressure Line And Load Terminal, Size 4.13 Inch W X 3.38 Inch D X 6 Inch H, Hfde Model, Trip Type Digitrip Rms 310 Electronic Trip LS, Long Time, Short Time. Comes complete with installation instructions. Eaton / Cutler Hammer Circuit Breakers HFDE322532L.
