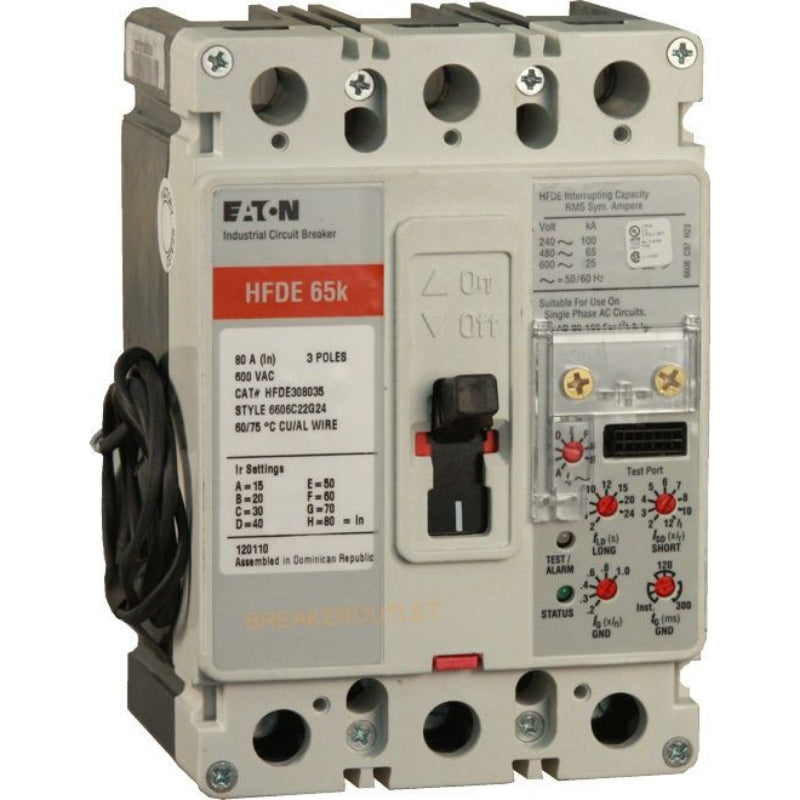

HFDE322535L Electronic Circuit Breaker with LSG
HFDE322535L Electronic Circuit Breaker with LSG
SKU: HFDE322535L
Barcode: 786685112657
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
Specifications:
- Eaton Cutler-Hammer OEM
- Series C MCCB
- Panel mount
- 160 Ampere
- 3 Pole
- 65k rated @ 480VAC
- 600 VAC
- Electronic Trip
- Adjustable Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
HFDE322535L 3 Pole, 100A thru 225A, 600V 65k at 480V / solid state electronic breakers 310+ Trip, Molded Case, F Frame, 240/480/600 Vac At 50/60 Hz, 250 Vdc (Ul 489), 80 Ampere, 3 Pole, Interrupting Rating 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 25 Kiloampere At 600 Vac, 22 Kiloampere At 250 Vdc (Ul 489), Terminal Aluminum/Copper Standard Pressure Line And Load Terminal, Size 4.13 Inch W X 3.38 Inch D X 6 Inch H, HFDE Model, Trip Type Digitrip Rms 310 Electronic Trip LSG. Comes complete with installation instructrions. Eaton / Cutler Hammer Circuit Breakers HFDE322535L.
