| Specifications:
- Eaton Cutler-Hammer OEM
- Series C MCCB
- Panel mount
- 350 Ampere
- 3 Pole
- 65k rated @ 480VAC
- 600 VAC
- Thermal Magnetic Trip
- Interchangeable Trip
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial

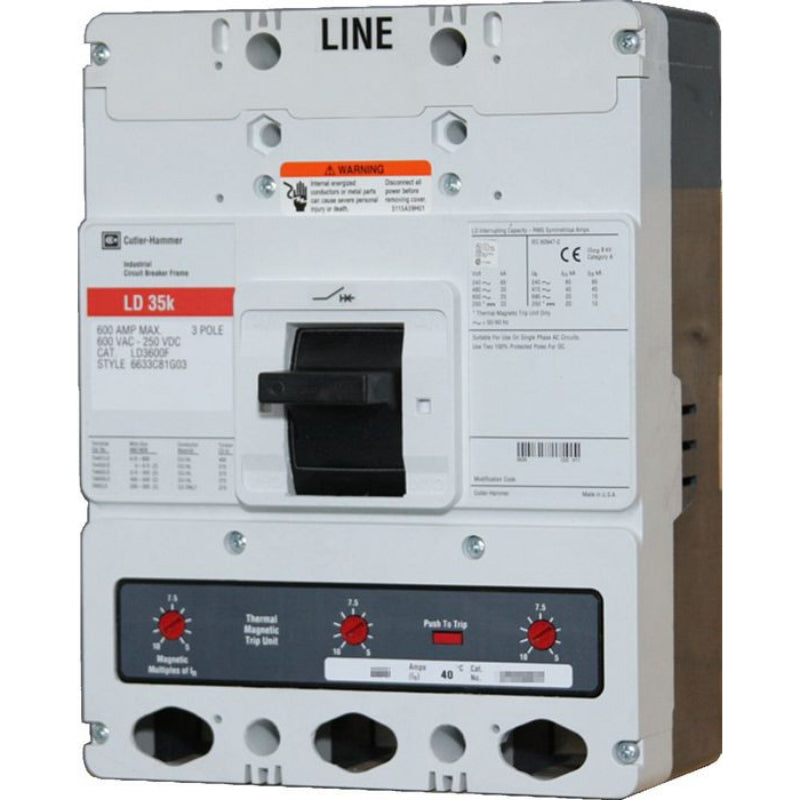

HLD3350 3 Pole 600V molded case, thermal magnetic are sold factory assembled or in components. These breaker are specifically designed for light to heavy industry such as automotive manufacturing, super markets, high rise buildings, hospitals etc.Electronic rms Trip Units are available for this breaker frame, Molded case, thermal magnetic, l frame, 600 vac at 50/60 hz, 250 vdc (ul), 690 vac at 50/60 hz, 250 vdc (iec), 350 ampere at 40 deg c, 3 pole, interrupting rating 100 kiloampere at 240 vac, 65 kiloampere at 480 vac, 35 kiloampere at 600 vac, 25 kiloampere at 250 vdc (ul), 100 kiloampere at 240 vac, 70 kiloampere at 415 vac, 25 kiloampere at 690 vac, 20 kiloampere at 250 vdc (iec), terminal aluminum/copper standard pressure line terminal, standard pressure load terminal, size 8-1/4 inch w x 4-1/16 inch d x 10-3/4 inch h, hld model, applicable standard nema ab1, as 2184, bs 4752 part 1, iec 157-1, sabs 156, sev 157-1.Buy HLD3350 from breakeroutlet.com, Eaton / Cutler Hammer Circuit Breakers. Choose New or Green/recondition. | Regular price
$5,100.00
Sale price
$5,100.00
Regular price
| Eaton | |
|
