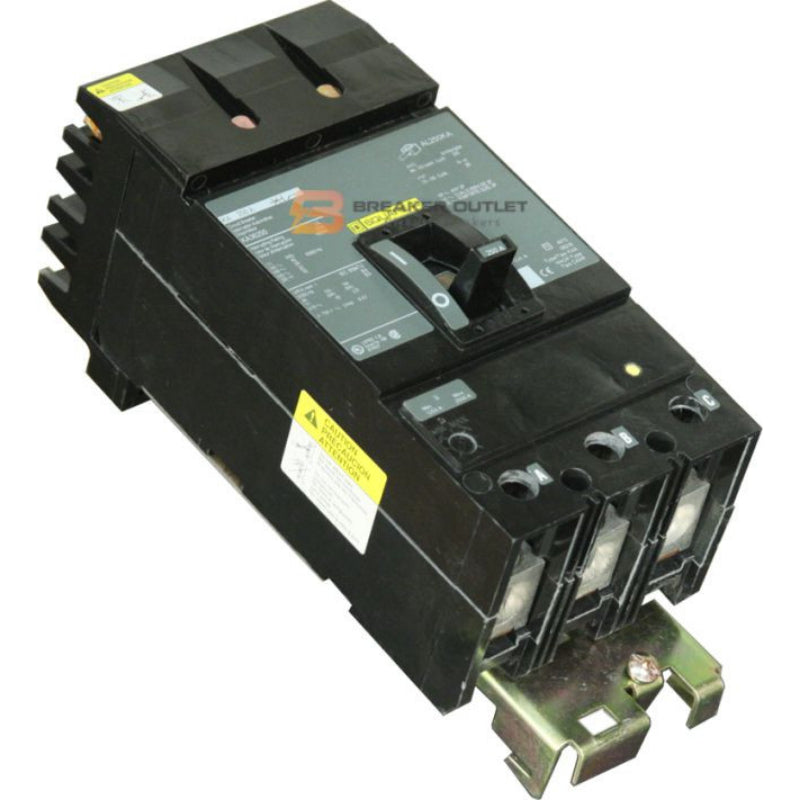

KA36150 I-LINE Circuit Breakers by Square D Schneider Electric

KA36150

• Brand: Square D
• Model: I-Line
• Circuit Breaker
• 150 Ampere
• 3 Pole
• 600VAC
• New or Re-certified

Is now considered an obsolete model. Thermal-magnetic molded case circuit breakers are the most common overcurrent protection devices. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. Thermal-magnetic circuit breakers use bimetals and electromagnetic assemblies to provide overcurrent protection. Their characteristic inverse time tripping under overload conditions is ideally suited for many applications varying from residential to heavy industrial loads. For higher level (short circuit) overcurrents, instantaneous trip characteristics allow molded case circuit breakers to interrupt with no intentional delay. Molded Case, Thermal Magnetic, K Frame, 240 VAC At 50/60 HZ, 480 VAC Star/277 VAC At 50/60 HZ, 480 VAC At 50/60 HZ, 600 VAC Star/347 VAC At 50/60 HZ, 600 VAC At 50/60 HZ (Underwriters Lab/CSA/Nom), 240/415 VAC At 50/60 HZ (Iec), 250 VDC, 225 Ampere, 3 Pole, Interrupting Rating 42 Kiloampere At 240 VAC, 25 Kiloampere At 480 VAC Star/277 VAC Or 480 VAC, 22 Kiloampere At 600 VAC Star/347 VAC Or 600 VAC (Underwriters Lab/CSA/Nom), 10 Kiloampere At 240/415 VAC (Iec), 10 Kiloampere At 250 VDC, Terminal Plug On, Size 4.5 Inch W X 4.75 Inch D X 8 Inch H, Approval Underwriters Lab, CSA, Ce, I-Line Brand, KA Model. Contact Breaker Outlet for more details. I Line Circuit Breakers.
