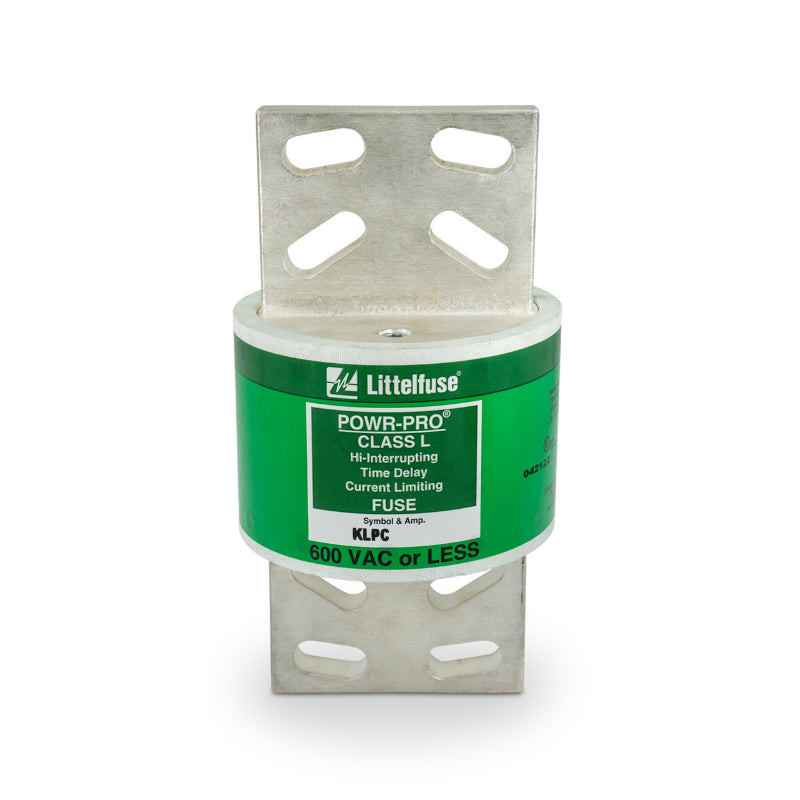

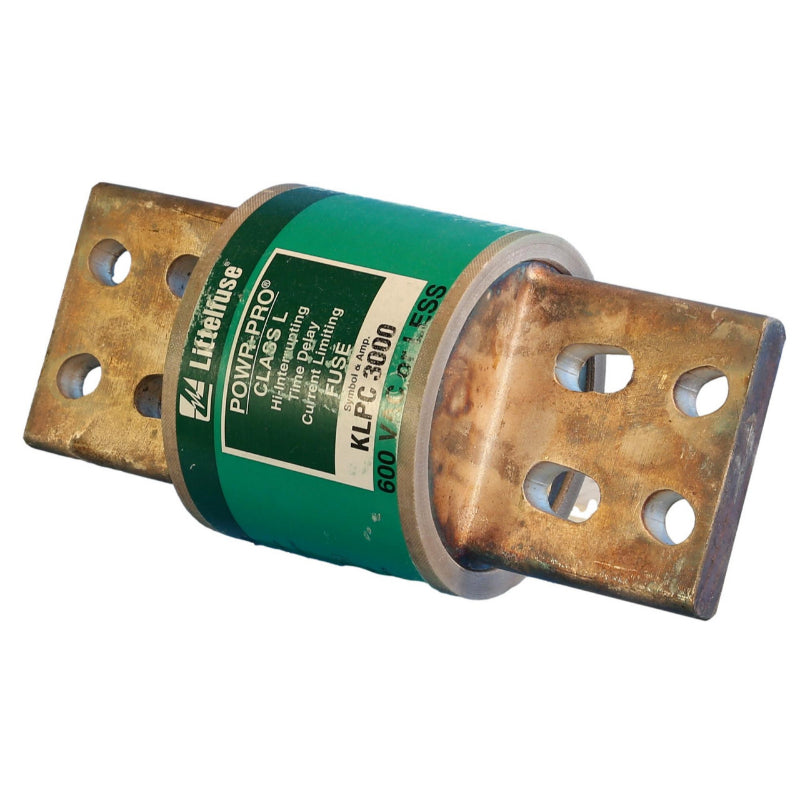

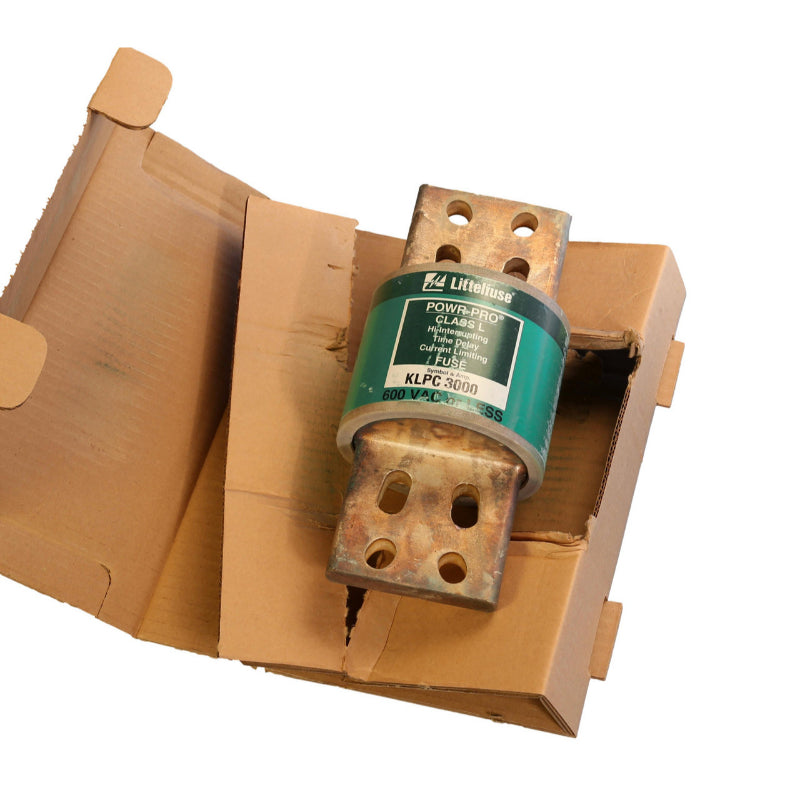

KLPC3000 Littelfuse KLPC Time Delay Fuse 600 V 480 VDC 300 kA Blade Terminal Class L 3000 A
KLPC3000 Littelfuse KLPC Time Delay Fuse 600 V 480 VDC 300 kA Blade Terminal Class L 3000 A
Couldn't load pickup availability
Overview
KLPC series POWR-PRO fuses provide ideal over current protection for circuits from 200 through 6000 amperes. KLPC series POWR-PRO fuses specification-grade construction and performance meet or exceed the most stringent project specifications: 99.9% pure silver links, silver-plated copper end bells, glass-reinforced melamine bodies, o-ring seals between body and end bells, and granular quartz fillers. KLPC series POWR-PRO fuses are the only UL listed class L fuses that provide A minimum of ten seconds time delay at 500% rated current and are also as current limiting as the fastest class L fuse on the market. On average, the peak let-through currents of KLPC series fuses are 10% less than any other "time-delay" class L fuse.
- POWR-PRO performance
- Best-in-class time-delay withstand
- Current-limiting
- Easily coordinated with other system components
Specifications
| Brand | Littelfuse |
|---|---|
| Product Type | Time Delay Fuse |
| AC Voltage Rating | 600 V |
| DC Voltage Rating | 480 V |
| Current Rating | 3000 A |
| AC Interrupt Rating | 200 kA RMS; 300 kA RMS |
| DC Interrupt Rating | 20 kA |
| Delay Time | 10 sec |
| Body Material | Glass Reinforced Melamine |
| Body Style | Cylindrical |
| Fuse Class | L |
| Mounting Type | Bolt-In |
| Terminal Type | Blade |
| Visual Indication (Yes/No) | No |
| Diameter | 5 in |
| Length | 10-3/4 in |
| Application | Switch Board Main and Feeder; Motor Control Center Main; Large Motor Branch Circuit; Protection of Power Circuit Breaker |
| Certifications | AC: Standard 248-10, Class L UL Listed 601–6000 A (File: E81895); UL Recognized 200–600 A (File: E71611); CSA Certified 601A-6,000A (File: LR29862); DC: Littelfuse Self-Certified |
