SKU: LA36250
Barcode: 785901426202
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview

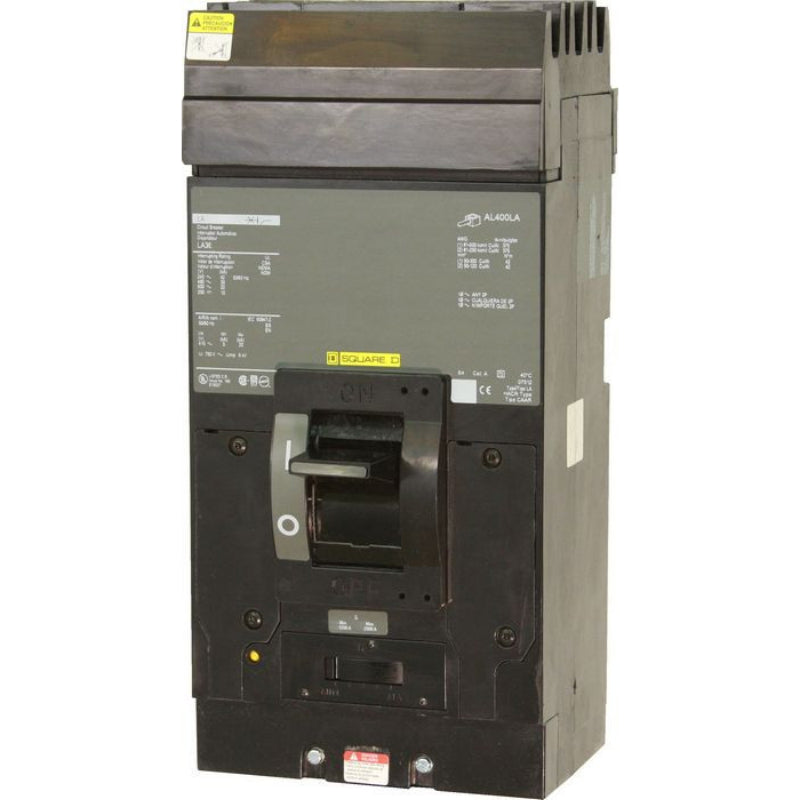

LA36250
- Square D Product
- Molded Case Circuit Breaker
- Class 655/660/670/830 I-Line[R] Panelboard/Switchboard Used On
- UL, CSA Approval
- Power Distribution Application
- 240/480/600 VAC At 50/60 Hz, 480 VAC Star/277 Vac At 50/60 Hz, 600 Vac Star/347 VAC At 50/60 Hz (UL/CSA/NOM)
- 415 Vac At 50/60 Hz (IEC), 250 VDC Voltage Rating
- 42 Kiloampere At 240 Vac, 30 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac, 22 Kiloampere At 600 Vac Star/347 Vac Or 600 Vac (UL/CSA/NOM)
- 20 Kiloampere At 415 VAC (Iec), 10 Kiloampere At 250 VDC Interrupting Rating
- 250 Ampere Current Rating
- 3 Pole(S)
- Phase A B C
- I-Line[R] Brand
- Frame Type L
- Mounting Type Plug On
- Terminal Wire Size (1) 1 AWG To 600 KCMIL, (2) 1 AWG To 250 KCMIL (Aluminum/Copper)
- Size 6 Inch W X 5.84 Inch D X 11 Inch H
- Tripping Method Thermal Magnetic
- LA Model
Same Day Ship
