Overview

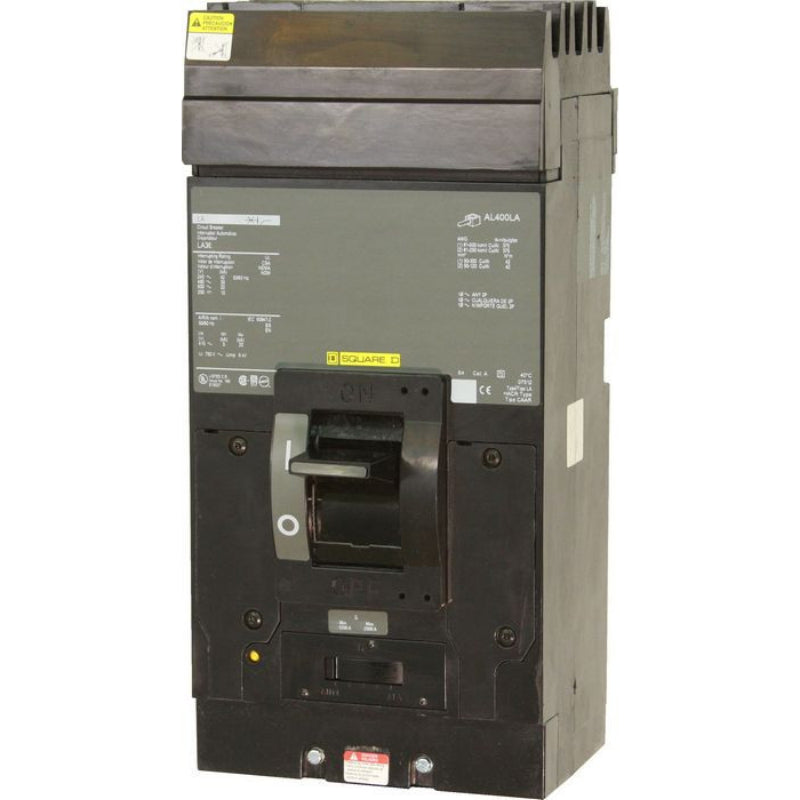

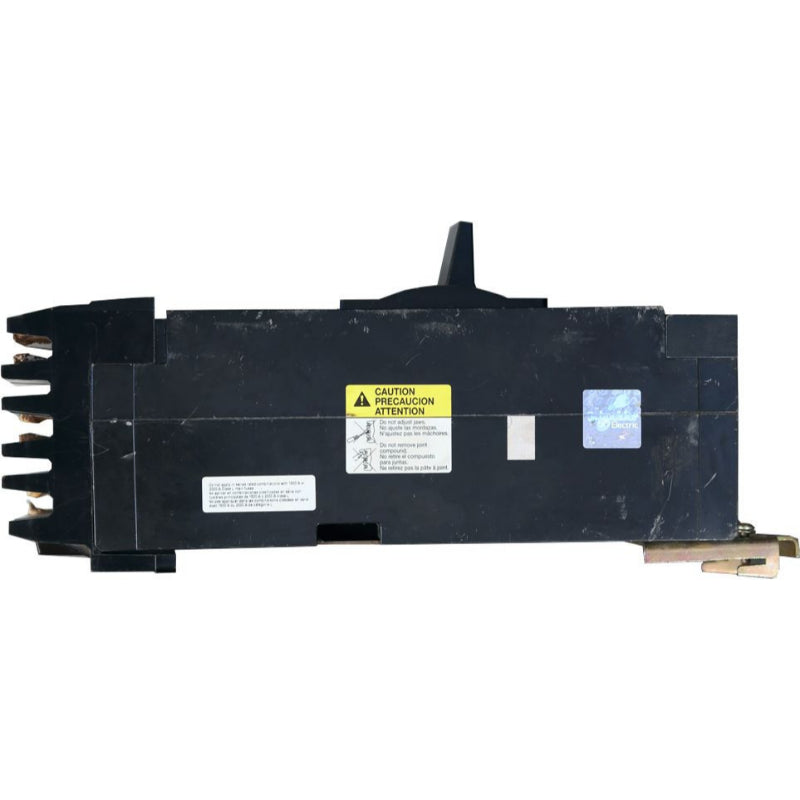

LA36300

  • 300A I-LINE
  • Molded Case Circuit Breaker
  • Class 655/660/670/830 I-Line[R] Panelboard/Switchboard Used On
  • UL, CSA Approval
  • Power Distribution Application
  • 240/480/600 VAC At 50/60 Hz, 480 VAC Star/277 Vac At 50/60 Hz, 600 Vac Star/347 VAC At 50/60 Hz (UL/CSA/NOM)
  • 415 Vac At 50/60 Hz (IEC), 250 VDC Voltage Rating
  • 42 Kiloampere At 240 Vac, 30 Kiloampere At 480 Vac Star/277 Vac Or 480 Vac, 22 Kiloampere At 600 Vac Star/347 Vac Or 600 Vac (UL/CSA/NOM)
  • 20 Kiloampere At 415 VAC (Iec), 10 Kiloampere At 250 VDC Interrupting Rating
  • 300 Ampere Current Rating
  • 3 Pole(S)
  • 1500 To 3000 Ampere Trip Setting
  • I-Line[R] Brand
  • Phase A B C
  • Frame Type L
  • Mounting Type Plug On
  • Terminal Wire Size (1) 1 AWG To 600 KCMIL, (2) 1 AWG To 250 KCMIL (Aluminum/Copper)
  • Size 6 Inch W X 5.84 Inch D X 11 Inch H
  • Tripping Method Thermal Magnetic
  • LA Model
  • Square D Brand
  • New or Re-certified
