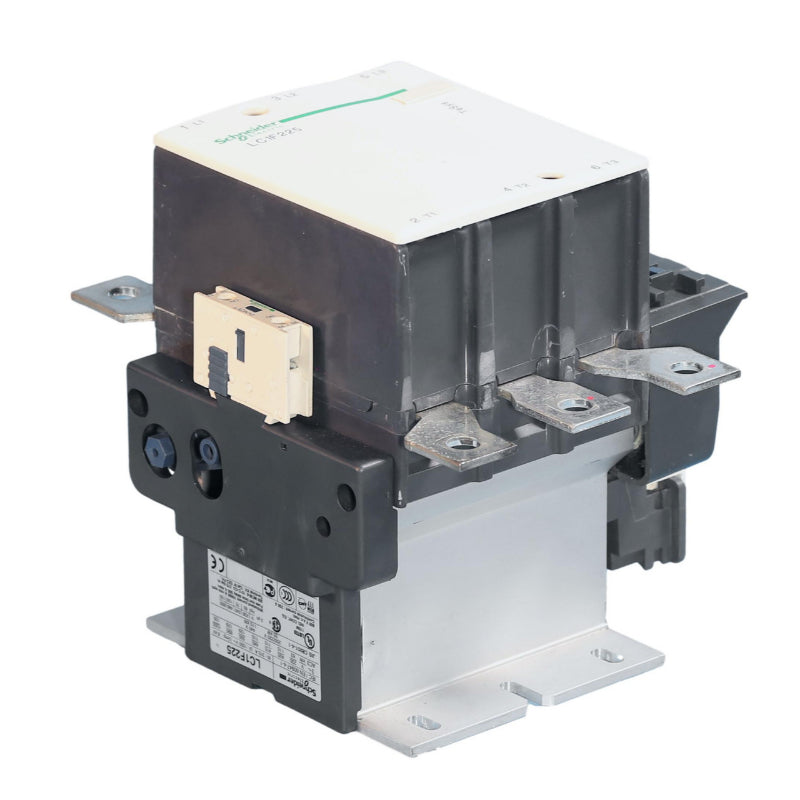

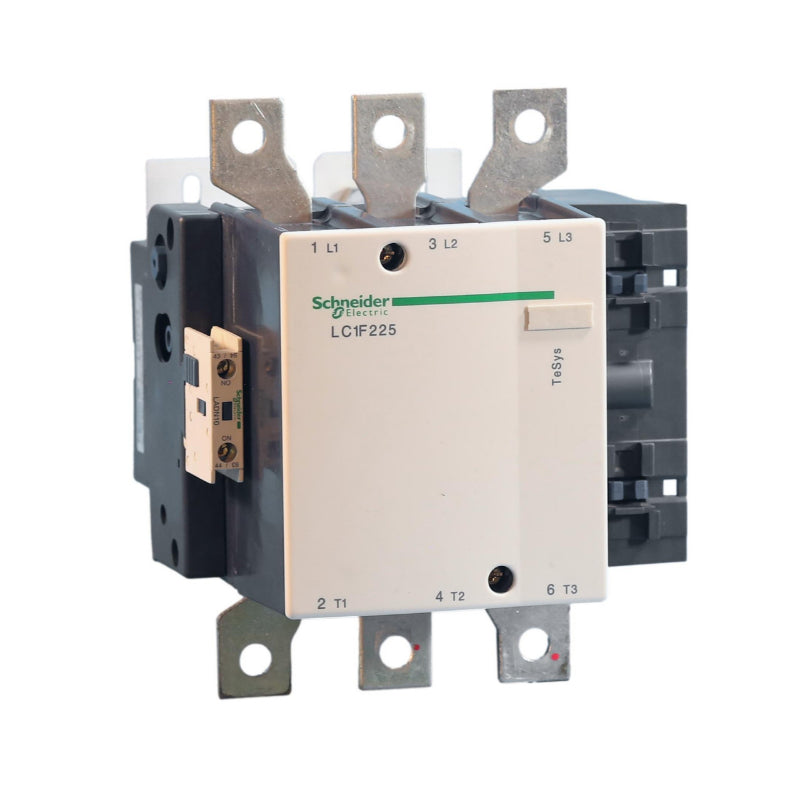

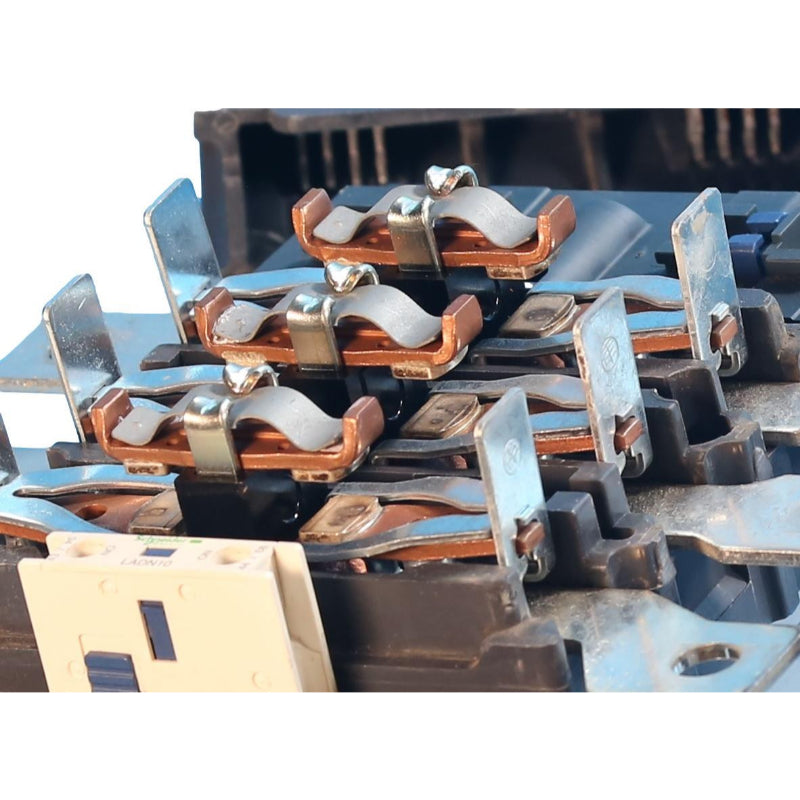

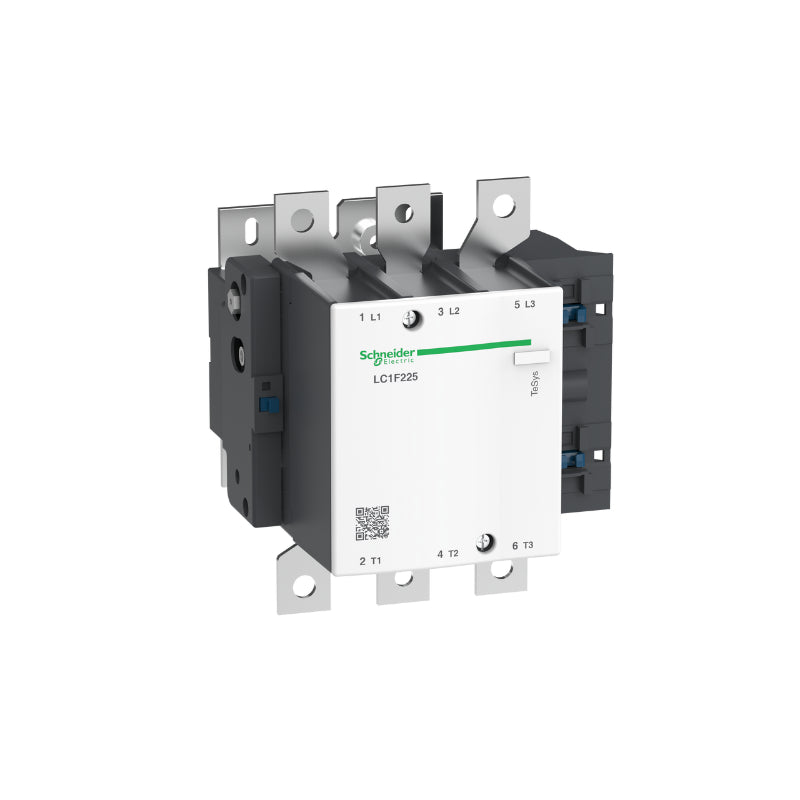

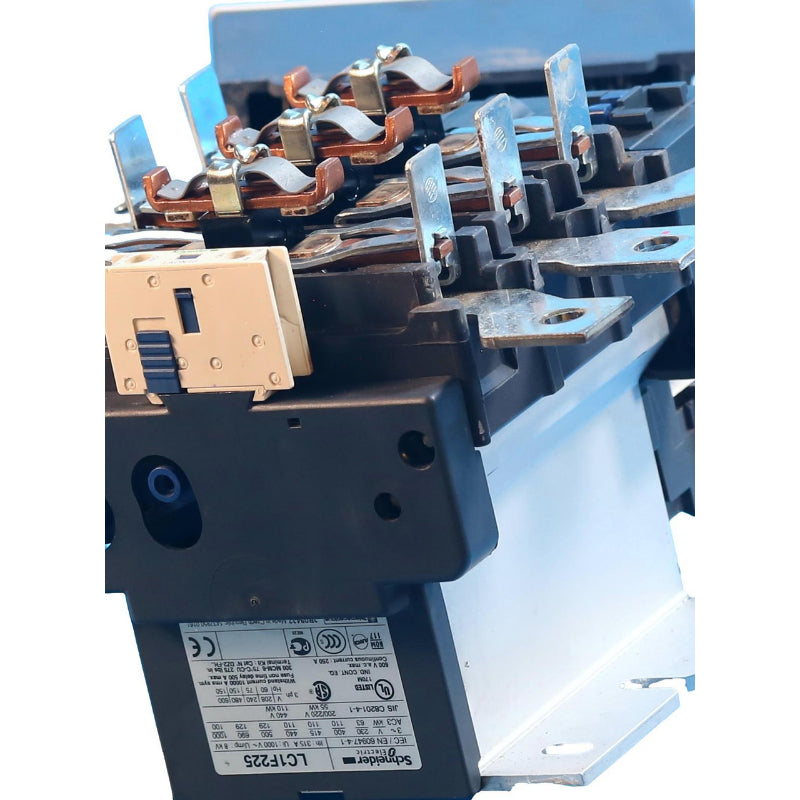

LC1F225 Merlin Gerin Electric TeSys F Contactor 690 VAC/460 VDC 315A 3 Pole
LC1F225 Merlin Gerin Electric TeSys F Contactor 690 VAC/460 VDC 315A 3 Pole
Couldn't load pickup availability
Overview
Tesys F contactor, 3 poles (3NO), 225a/690v ac-3, for motor applications up to 110kw@400v. Contactor with NO coil to allow A later selection and installation, it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°c, it procures high reliability and durability. It makes installation and maintenance easy. Multi standards certified (IEC, UL, CSA, CCC, eac, marine), green premium compliant (ROHS/REACH). 300-500A adjustable range. Telemecanique owned by square D company. Contactor complete with #LR9F7579 electronic overload. Starter contacts are in excellent condition and product is thoroughly reviewed for use tomorrow. Sold as refurbished and contacts are in excellent condition. Guaranteed. Purchase yours today! Same day shipping.
- Later selection with no coil
- High durability: 2400 cycles/hour for operating rate
- High reliability: environments tolerance up to 55°c
- Easy installation and maintenance thanks to its drawer-mounted coil and a large choice of add-on blocks
- Various fields of application with multiple standards certifications
Specifications
| Brand | Merlin Gerin |
|---|---|
| Product Type | Contactor |
| Voltage Rating | 690 V ac; 460 V dc |
| Current Rating | 315 A @ 104 °F |
| Contact Configuration | 3NO |
| Insulation Voltage | 8 kV |
| Over Voltage Category | III |
| Thermal Current | 315 A @ 104°F |
| Withstand Current | 1800 A @ 104 °F for 10 sec |
| Impedance Rating | 0.32 mΩ |
| Power Dissipation | 32 W (AC-1); 16 W (AC-3) |
| Heat Dissipation | 8 to 9.8 W |
| Power Rating | 129 kW @ 660 to 690 V ac |
| Making Capacity | 2250 A |
| Interrupt Rating | 1800 A |
| Number of NO Contacts | 3 |
| Number of Poles | 3 |
| Fuse Rating | 315 A (gG); 250 A (aM) |
| Contactor Style | IEC |
| Frequency Rating | 50/60 Hz |
| Inrush Power | 950 to 1180 VA |
| Depth | 7.1 in |
| Height | 7.8 in |
| Width | 6.6 in |
| Mounting Position | Front; Side |
| Mounting Type | DIN Rail |
| Terminal Type | Lug Ring (Power Circuit); Screw Clamp (Control Circuit) |
| IP Rating | IP20 |
| Electrical Operating Durability | 2400 cycles |
| Mechanical Operating Durability | 10 Mcycles |
| Operating Temperature Rating | 23 to 131 °F |
| Application | Motor Control |
| Certifications | JIS C8201-4-1; IEC 60947-4-1; IEC 60947-1; EN 60947-4-1; EN 60947-1; UL Listed; BV; CB; ABS; DNV; CSA Certified; RMRoS; RINA; UKCA |
| Weight | 12.24 lb |
| Package Quantity | 1 Pack |
| Warranty | 18 months |
| Country of Origin | Europe |
