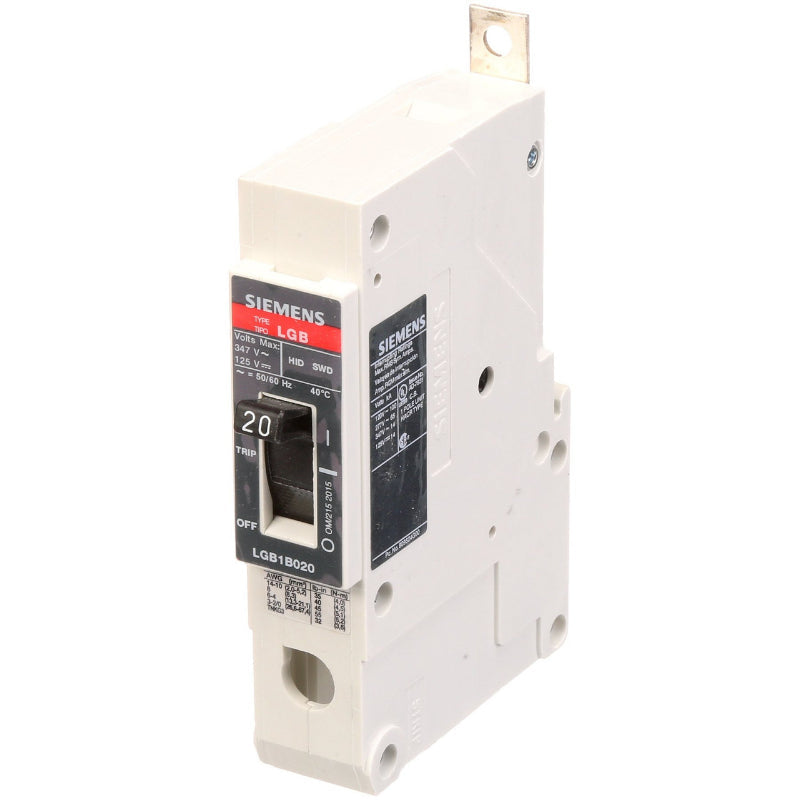

LGB1B020B Siemens LGB Molded Case Circuit Breaker 20 A 1 Pole 347 VAC GB 125A Frame Thermal Magnetic Load Side Lug 100 kA
LGB1B020B Siemens LGB Molded Case Circuit Breaker 20 A 1 Pole 347 VAC GB 125A Frame Thermal Magnetic Load Side Lug 100 kA
6 in stock
Couldn't load pickup availability
Overview
Siemens low voltage panelboard mount G frame circuit breaker with thermal - magnetic trip unit. UL listed LGB frame with very high breaking capacity. 20A 1-Pole (14kAIC at 347V) (65kAIC at 277V). Special features: load side lugs only (TC1Q1) wire range: 14 - 10 AWG (Cu/Al). Dimensions (W x H x D) in: 1 x 5.4 x 2.8.
- Global rated (UL/CSA/ IEC /NOM), UL489, CSA-C22.2 no. 5-02, IEC 60947-2 (GG) (PENDING), NOM-003
- HACR, SWD, and HID marked (at applicable ratings)
- Integral DIN rail or base mount without adapters (GG)
- UL listed field installable accessories
- Removable lugs
- 25 kA, 35 kA, 65 kA @ 480V AC (GG/GB2) 25 kA, 35 kA, 65 kA @ 480Y/277V AC (GB)
- Compact size 3.0”w x 5.4”h x 2.8”d (1.0” wide per pole)
- 1, 2, 3 pole units
- Overcenter toggle and trip free mechanism
- Suitable for reverse feed applications
- Common trip
- Voltage ratings of 120V, 240V, 277V, 480V (GG / GB2) 480Y/277V AC, 600Y/347V AC, DC rated at 125V, 250V DC
- Meets or exceeds federal specifications w-c-375c classes 10b, 11a, 11b, 12b, 12c, 13a, 13b, 15b
