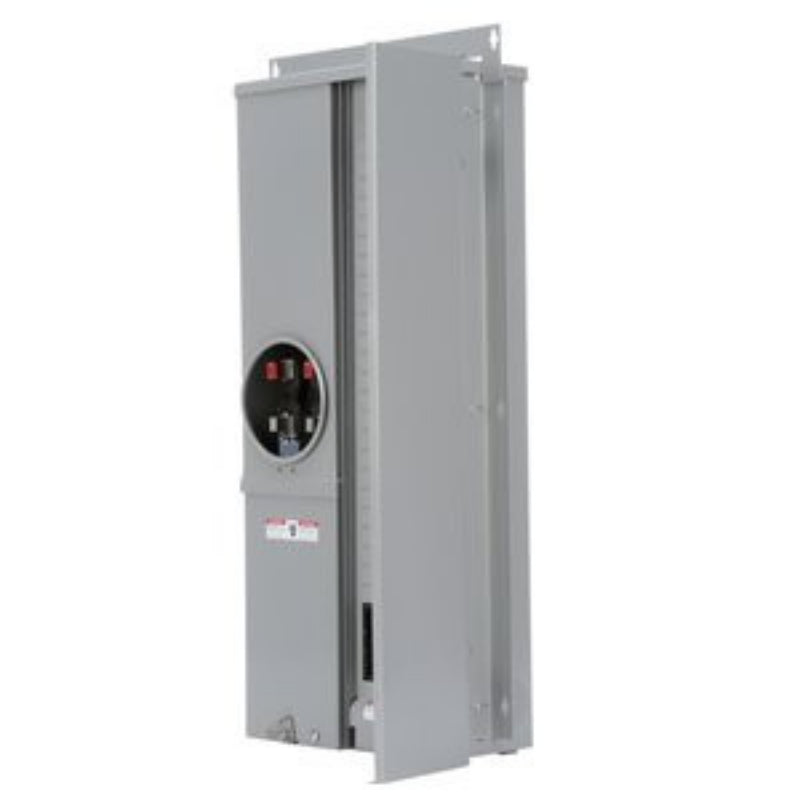

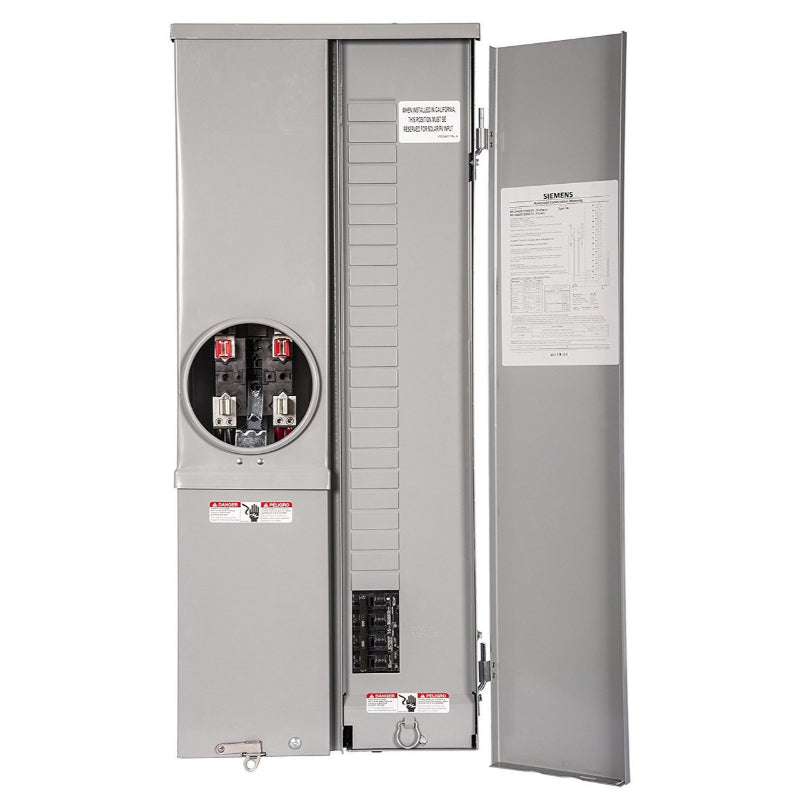

MC2442B1200EFV Siemens Low Voltage Meter Load Center 240 V 200 A 42 Circuit Single Phase Gray 22000 A
MC2442B1200EFV Siemens Low Voltage Meter Load Center 240 V 200 A 42 Circuit Single Phase Gray 22000 A
Couldn't load pickup availability
Overview

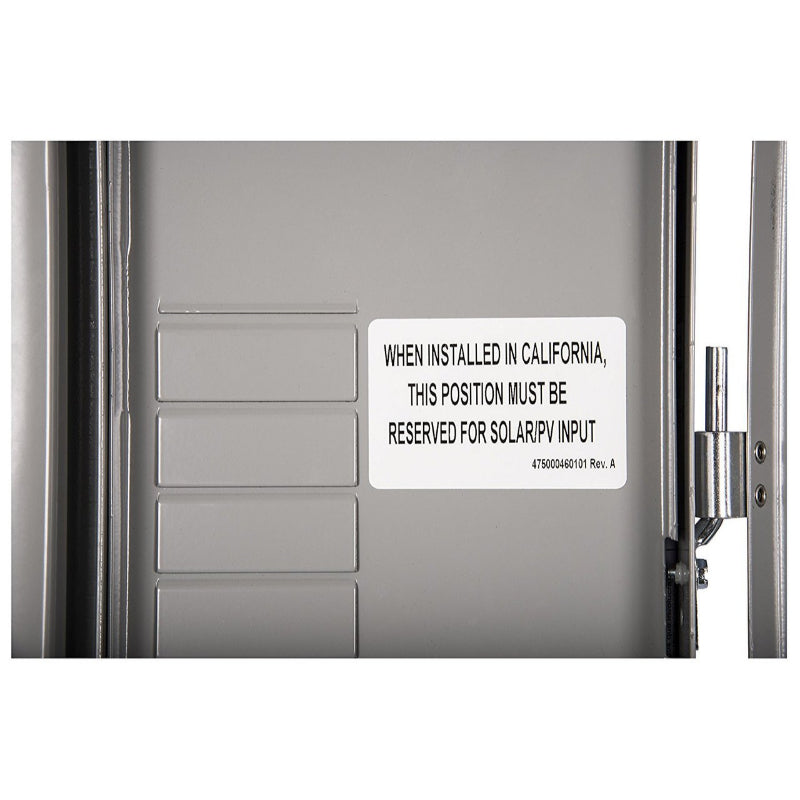

Siemens low voltage meter load CENTER combination. Factory installed main breaker 24 (1 inch) SPACES interior allowing max 42 circuits. 4-jaw meter / 1-phase system rated 200A. Special features: OH/UG feed, ring type cover, flush mounting, EUSERC approved solar ENERGY input. Top RX hubs use EC38598, EC38599, EC38600, for bottom use HC hubs ECHC200, ECHC250, canada/alaska/hawaii require additional UPS charge. Call us at 800-321-8998.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Low Voltage Meter Load Center |
| Voltage Rating | 120 V ac; 240 V ac |
| Current Rating | 200 A |
| Interrupt Rating | 22000 A |
| Phase | Single |
| Number of Spaces | 24 |
| Number of Wires | 3 |
| Number of Circuits | 42 |
| Number of Jaws | 4 |
| Cover Attachment Style | Side Hinge |
| Cover Closure Method | Screw |
| NEMA Rating | NEMA 3R |
| Enclosure Material | Carbon Steel |
| Bus Bar Material | Tin Plated Copper |
| Color | Gray |
| Finish | Galvanized |
| Depth | 7 in |
| Width | 17.3 in |
| Height | 39.81 in |
| Wire Size | 250 kcmil to 4 AWG (A1,B1,A2,B2,N1), 2/0 to 14 AWG (G1), 14 to 10 AWG (Copper Conductor-Neutral/Equipment Ground), 12 to 10 AWG (Aluminum Conductor-Neutral/Equipment Ground), 8 to 4 AWG (Neutral/Equipment Ground), 14 to 10 AWG (Ground Conduct |
| Cover Type | Ring |
| Cable Entry Type | OH; UG |
| Hub Type | RX Hub Top; HC Hub Bottom |
| Torque Rating | 250 in-lb (Terminal - A1, B1, A2, B2); 250 in-lb (Terminal - N1); 50 in-lb (Terminal - G1); 35 in-lb (Terminal - Neutral/Equipment Ground); 20 in-lb (Ground Conductors Only) |
| Mounting Type | Flush |
| Terminal Type | Screw |
| Resistance Properties | Corrosion Resistant |
| For Use With | Service Entrance Equipment |
| Includes | ECQF3 Filler Plate; EMC5J 5th Jaw Assembly; ECQML12 Mechanical Interlock; ECJS Meter Socket Jumper; ECSBPKO2 Interlock Kit |
| Application | Residential |
| Certifications | EUSERC Approved; UL 67 |
| Weight | 56.108 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
