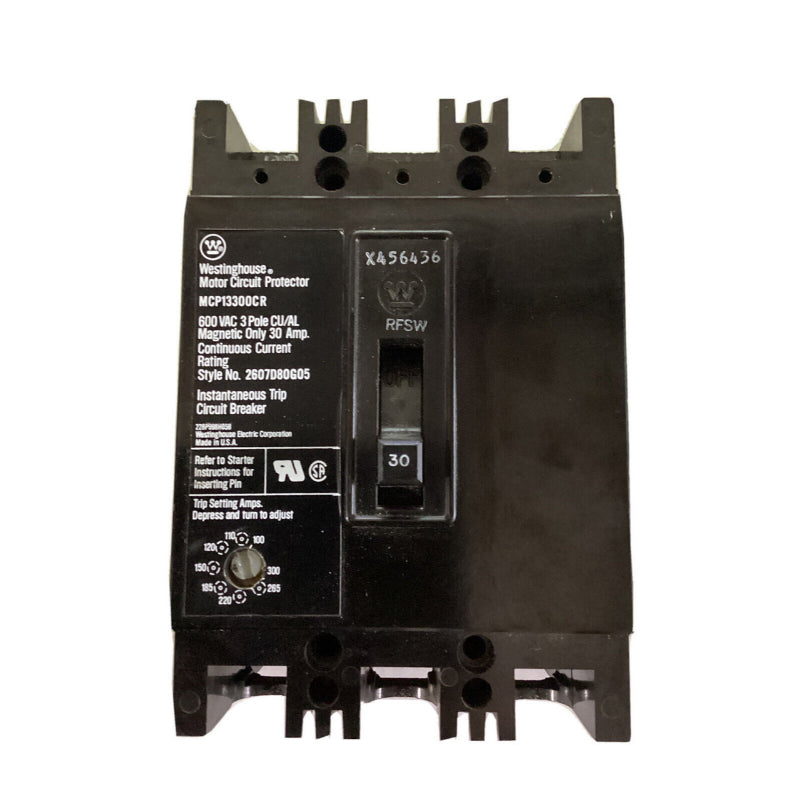

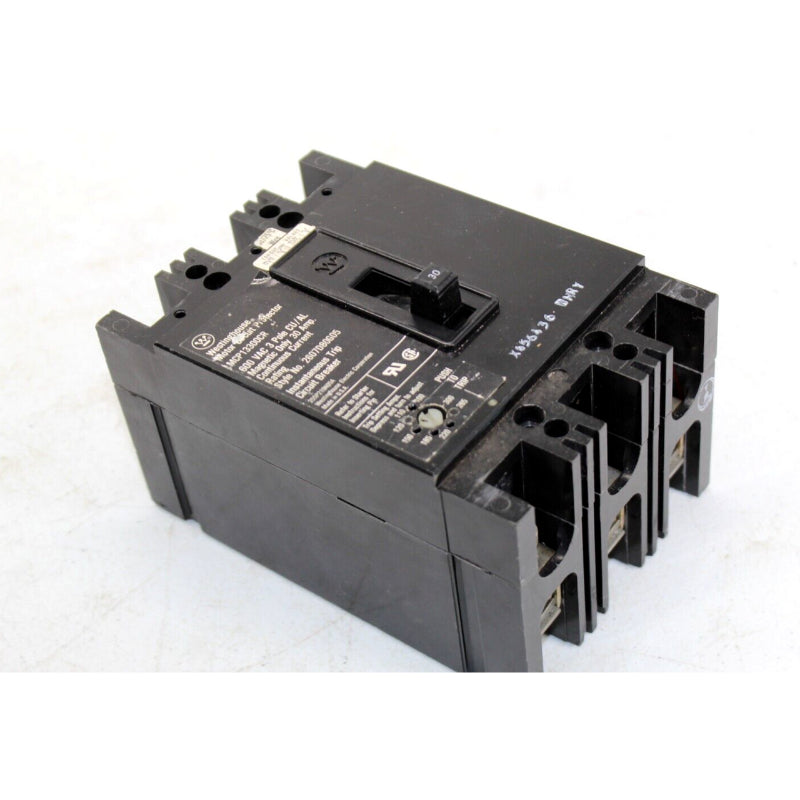

MCP13300RC 30 Amp Motor Circuit Protector by Westinghouse
MCP13300RC 30 Amp Motor Circuit Protector by Westinghouse
SKU: MCP13300RC-R
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
MCP13300RC
- Westinghouse OEM
- Motor Circuit Protector
- Also MCP13300CR
- Mag. Adj. 100-300 Ampere
- Panel mount
- 30 Ampere
- 3 Pole
- Motor rated
- 600 VAC
- Magnetic Trip
- Non-Aluminum Lug Terminals
- Fixed Trip
- Approval UL
- Mfg Status: Obsolete
- Industrial
MCP13300RC/CR 30A Type MCP motor circuit protector. Refurbished, magnetic only Molded Case Magnetic Breaker, F Frame, 600 Vac, 250 Vdc, 30 Ampere, 3 Pole, Trip Setting 100 To 300 Ampere, Starter Size Nema 1, Terminal Non Aluminum Line, Load Terminal, Approval Ul, Hmcp Model, Applicable Standard Iec 157-1. These breakers differ from conventional circuit breakers in that these do not have overload protection. Overload protection must be achieved by use of motor starter with heater overloads. MCP13300R is a business for business industrial use only product.
