MM0202B1200 Siemens Low Voltage Meter Load Center 240 V 200 A 2 Circuit Single Phase Gray
MM0202B1200 Siemens Low Voltage Meter Load Center 240 V 200 A 2 Circuit Single Phase Gray
Couldn't load pickup availability
Overview

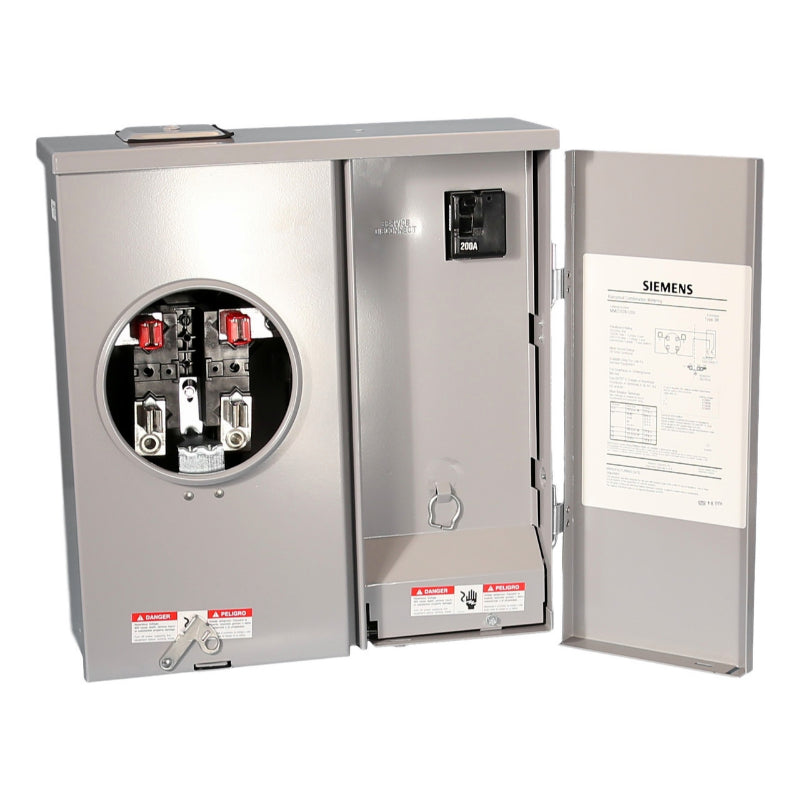

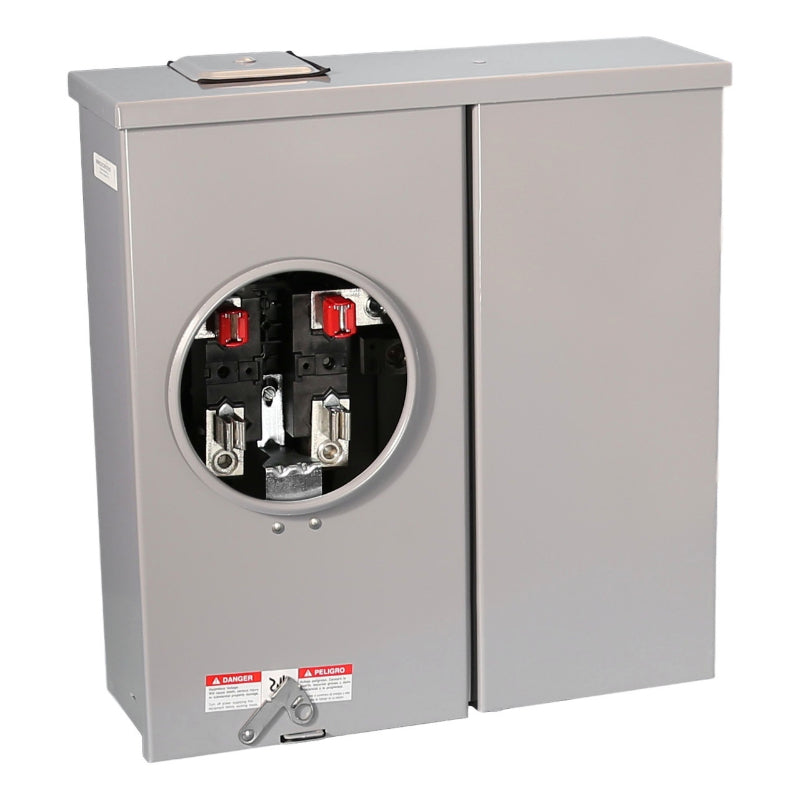

Siemens low voltage meter load center combination. Factory installed main breaker 20 (1 inch) spaces interior allowing max 40 circuits. 4-jaw meter / 1-phase system rated 200A. Special features: OH/UG feed, ring type cover, surface mounting.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Low Voltage Meter Load Center |
| Voltage Rating | 120/240 V |
| Current Rating | 200 A |
| Phase | Single |
| Number of Spaces | 2 |
| Number of Wires | 3 |
| Number of Circuits | 2 |
| Number of Jaws | 4 |
| NEMA Rating | NEMA 3R |
| Color | Gray |
| Depth | 5 in |
| Width | 16.25 in |
| Height | 17.5 in |
| Wire Size | 250 kcmil to 6 AWG (A,B), 3 to 2 AWG (N1), 6 to 4 AWG (N1), 8 AWG (N1), 14 to 10 AWG (N1), 6 AWG to 250 kcmil (N2), 4 AWG to 250 kcmil (N3), 14 to 1/0 AWG (N4) |
| Cover Type | Ring |
| Cable Entry Type | OH; UG |
| Hub Type | RX Hub Top; HC Hub Bottom |
| Torque Rating | 275 in-lb (Terminal - A, B); 50 in-lb (Terminal - N1); 275 in-lb (Terminal - N2); 275 in-lb (Terminal - N3); 120 in-lb (Terminal - N4) |
| Indoor/Outdoor Use | Outdoor |
| Mounting Type | Surface |
| For Use With | Service Entrance Equipment |
| Includes | Main Breaker |
| Application | Residential |
| Certifications | UL 67 |
| Weight | 26.896 lb |
| Package Quantity | 1 Piece |
| Country of Origin | Mexico |
