Siemens

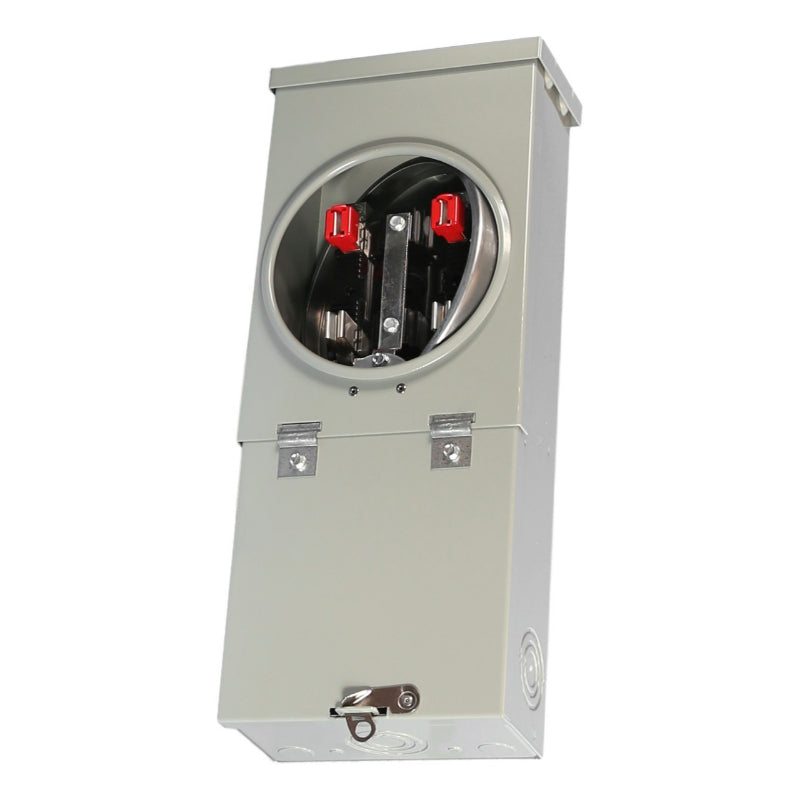

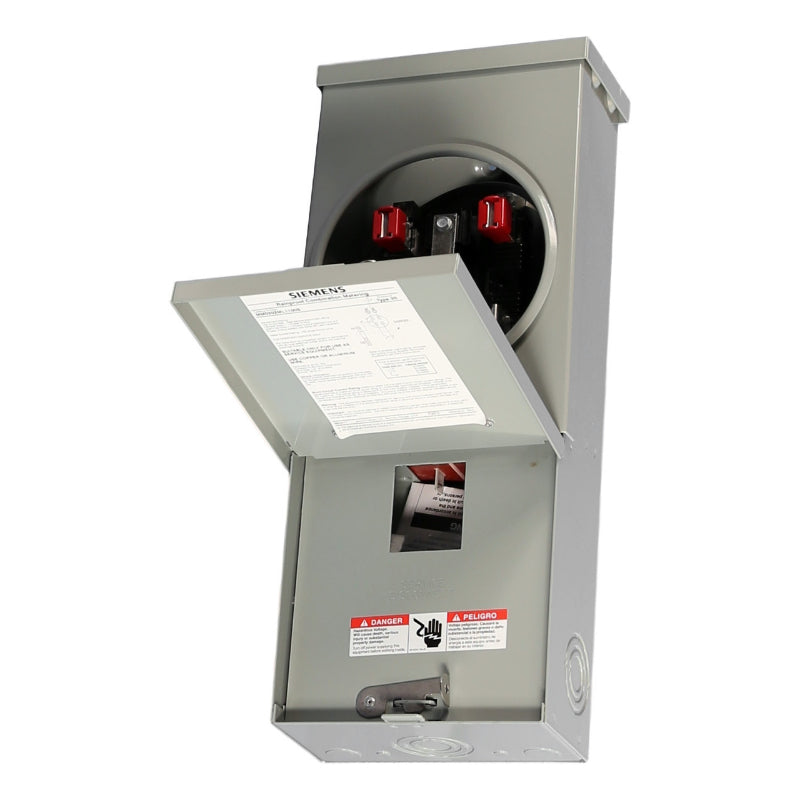

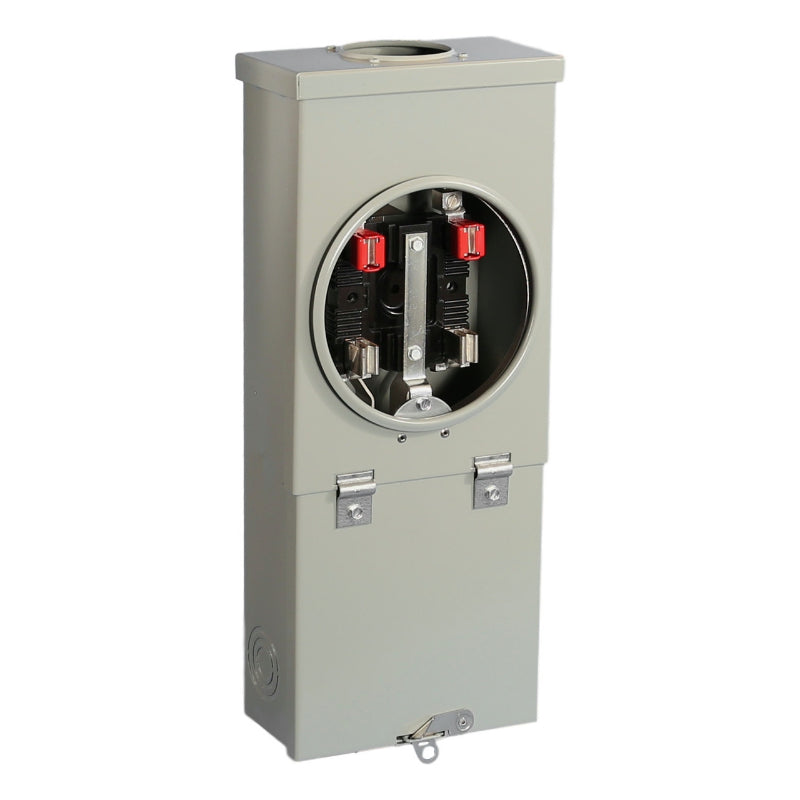

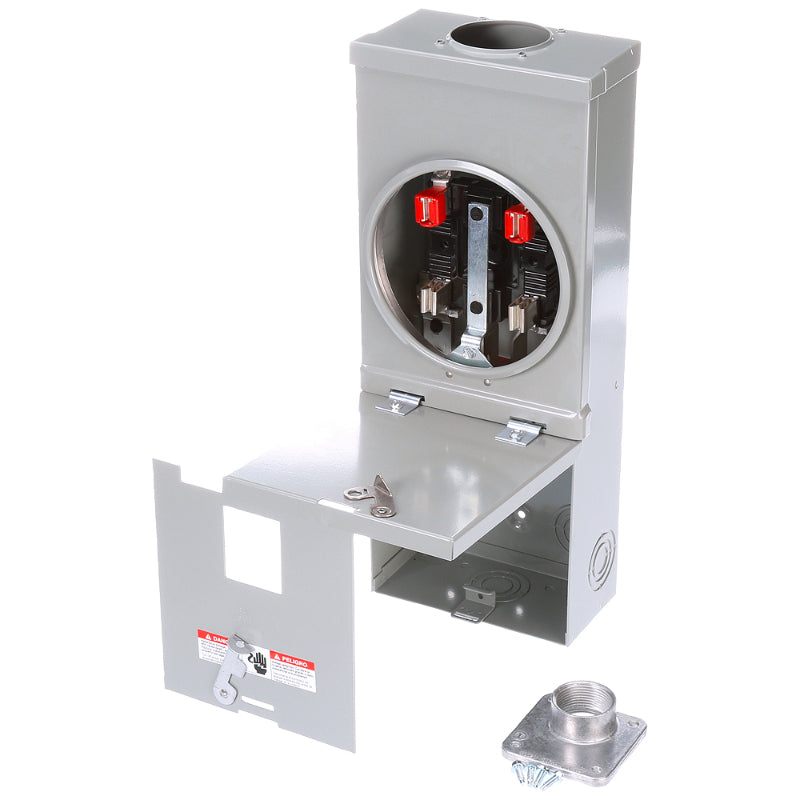

MM0202ML1100S Siemens Low Voltage Main Lug Meter 240 V 100 A 2 Circuit Single Phase Gray
MM0202ML1100S Siemens Low Voltage Main Lug Meter 240 V 100 A 2 Circuit Single Phase Gray
Call (800) 321-8998 for pricing and availability.
Shipping calculated at checkout.
Couldn't load pickup availability
Overview
Siemens low voltage meter main. Main lug 2 (1 inch) spaces interior allowing max 2 circuits. 4-jaw meter / 1-phase system rated 100A. Special features: OH/UG feed, ring type cover, surface mounting.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Low Voltage Main Lug Meter |
| Voltage Rating | 120/240 V |
| Current Rating | 100 A |
| Phase | Single |
| Number of Spaces | 2 |
| Number of Wires | 3 |
| Number of Circuits | 2 |
| Number of Jaws | 4 |
| NEMA Rating | NEMA 3R |
| Color | Gray |
| Depth | 4 in |
| Width | 7.5 in |
| Height | 18 in |
| Wire Size | 14 to 1/0 AWG |
| Cover Type | Ring |
| Cable Entry Type | OH; UG |
| Hub Type | WRX Hub |
| Torque Rating | 45 in-lb |
| Indoor/Outdoor Use | Outdoor |
| Mounting Type | Surface |
| For Use With | Service Entrance Equipment |
| Includes | WRX Hub |
| Application | Outdoor |
| Certifications | UL 67 |
| Weight | 10.67 lb |
| Package Quantity | 1 Piece |
| Country of Origin | USA |
