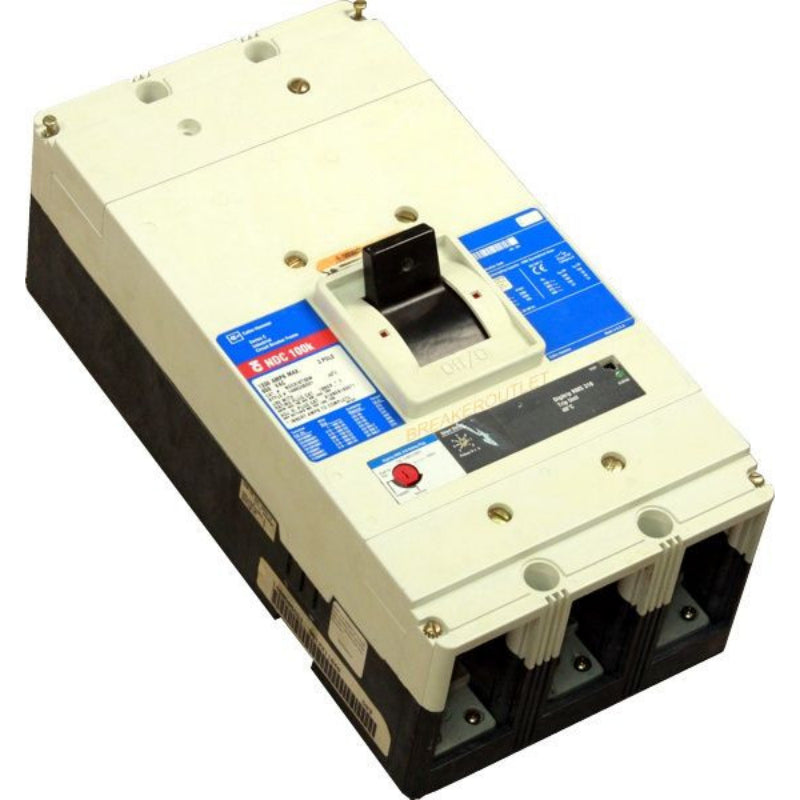

NDC312T33W 100k Digitrip RMS 310 Trip Functions
NDC312T33W 100k Digitrip RMS 310 Trip Functions
SKU: NDC312T33W
Barcode: 786679166000
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
Specifications:
- Eaton Cutler-Hammer OEM
- Series G MCCB
- Panel mount
- 1200 Ampere Max.
- 3 Pole
- 50k rated @ 480VAC
- 600 VAC
- Electronic Trip
- LS Functions
- Approval UL, CSA. CE
- Mfg Status: Available
- Industrial
NDC312T33W Seriel No. 1488D05G01 is 100,000 Amp rated, 100k, Electronic, Molded Case, NDC Digitrip RMS 310 Frame, 600 Vac At 50/60 Hz, 1200 Ampere At 40 Deg C, 3 Pole, Interrupting Rating 200 Kiloampere At 240 Vac, 100 Kiloampere At 480 Vac, 50 Kiloampere At 600 Vac (Ul), 200 Kiloampere At 240 Vac, 100 Kiloampere At 415 Vac, 35 Kiloampere At 690 Vac (Iec), Terminal Not Included, Size 8.25 Inch W X 5.5 Inch D X 16 Inch H, NDC Model, Applicable Standard Iec 157-1, Ics Rating 100 Kiloampere At 240 Vac, 50 Kiloampere At 415 Vac, 18 Kiloampere At 690 Vac (Iec), Trip Model 310, Type LS, uses rating plyg type 120NES--
