CHLD3600F 100% Rated

Eaton

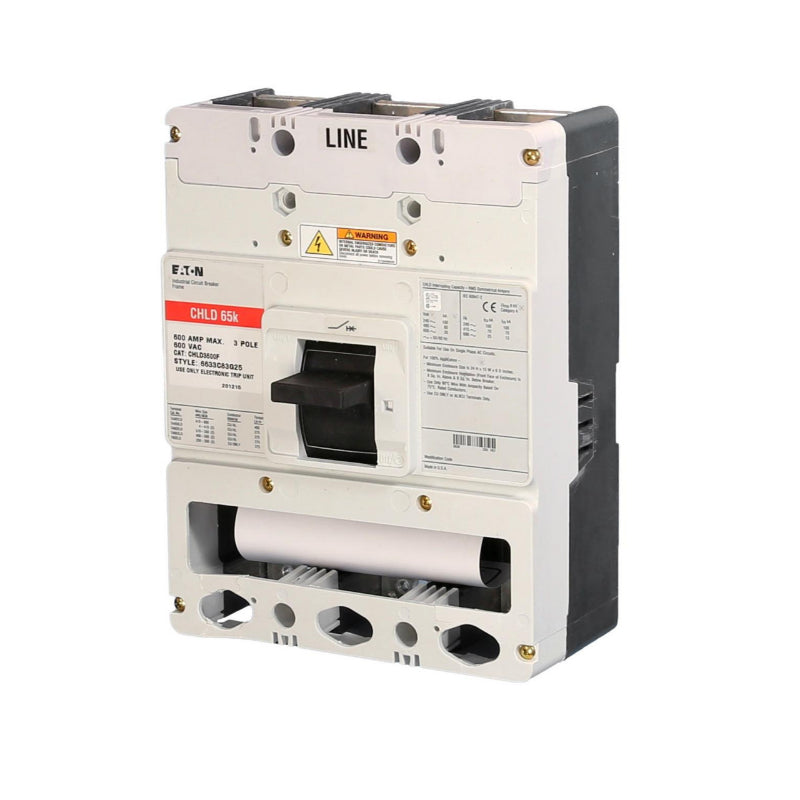

New CHLD3600F 100% Rated 600A Molded Case Breaker Frame

SKU: CHLD3600F

Barcode: 786679561683

$2,800.00 - $4,330.00

$4,330.00

Shipping calculated at checkout.

Condition: New

New Re-Certified

Fast Processing & Free ShippingOrders typically ship within 1 business day. Free shipping on orders over $100 and under 70 lbs to the contiguous U.S. See shipping policy
30-Day ReturnsReturns are accepted for 30 days after delivery for most of our products. See return policy
1-Year WarrantyEvery purchase is backed by our 1-year warranty, offering repair, replacement, or refund on eligible claims. See warranty policy

Overview

CHLD3600F

Specifications:

Eaton Circuit Breaker Frame
Series C MCCB
Panel mount
600 Ampere
3 Pole
65k rated @ 480VAC
240/480/600 VAC
Electronic trips available
Interchangeable Trip
Approval UL, CSA. CE
Mfg Status: Available
Industrial
New or Re-certified

Frame only package. CHLD3600F, 600A 600V 3 phase Eaton / Cutler Hammer CHLD3600 Circuit Breakers Molded case, Electronic, CHLD Frame, 600 Vac At 50/60 Hz, 600 Ampere, 3 Pole, Interrupting Rating 100 Kiloampere At 240 Vac, 65 Kiloampere At 480 Vac, 35 Kiloampere At 600 Vac, 25 Kiloampere At 250 Vdc (Ul), 100 Kiloampere At 240 Vac, 70 Kiloampere At 415 Vac, 25 Kiloampere At 690 Vac, 20 Kiloampere At 250 Vdc (Iec), Terminal Not Included, Size 8.25 Inch W X 4.062 Inch D X 10.75 Inch H, CHLD3600F Model are 100 Percent Rated. Requires Trip unit for amp specification and lugs. Order as individual components, breaker frame, trip unit, rating plug and terminals. Lugs are sold in set of 3. For other Digitrip Optim choices see next tab. Breaker frame is new. Trip and lugs sold separately.
