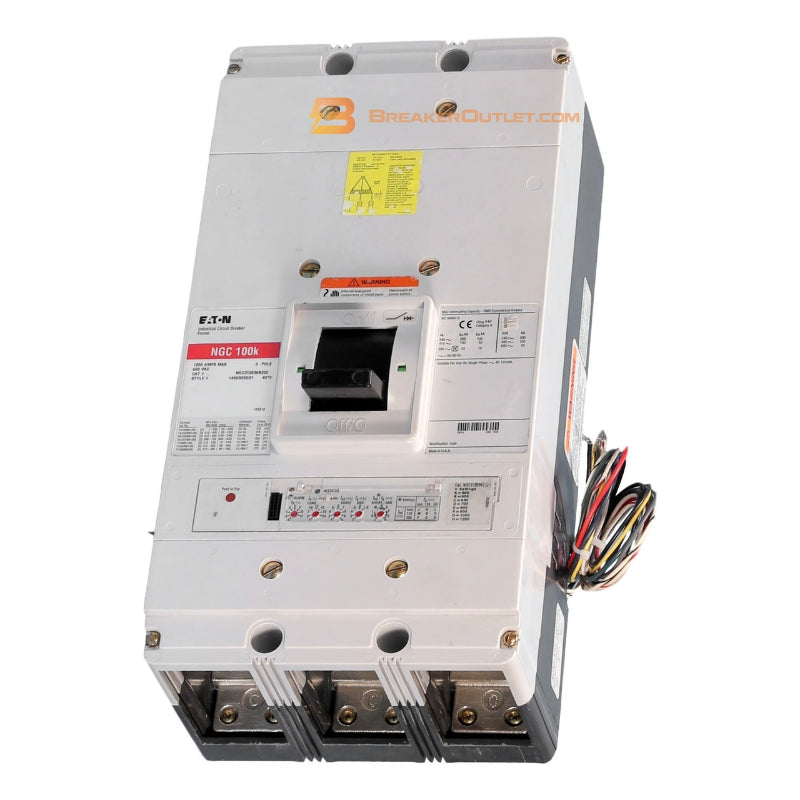

NGC312036B22E Eaton Electronic RMS 310+ Molded Case Circuit Breaker
NGC312036B22E Eaton Electronic RMS 310+ Molded Case Circuit Breaker
SKU: NGC312036B22E-R
Barcode: 786685578590
- Free ground shipping in contiguous U.S. for carts over $100 & under 70lbs.
- Returns accepted within 30 days.
Couldn't load pickup availability
Overview
NGC312036B22E
- Eaton Cutler-Hammer OEM
- Series G MCCB
- Panel mount
- 1200 Ampere Max.
- 3 Pole
- 100k rated @ 480VAC
- 600 VAC
- Electronic Trip 310+
- LSIG
- Feature: Ground Fault Alarm
- Rating Plug for Amp rating
- Imperial Tapped
- Approval UL, CSA. CE
3 Pole 600V 1200A Eaton Molded Case Electronic Circuit Breaker. Rated as follows, 200K @ 240V, 100K @ 480V and 65k @ 600V. Trip unit is the newest 310+ Digitrip with LSI(Auxiliary) and Ground Fault Alarm adjustable trip functions. Suitable for reverse feed. This new model will replace the ND312 previous breakers. This is a panel exchange.
