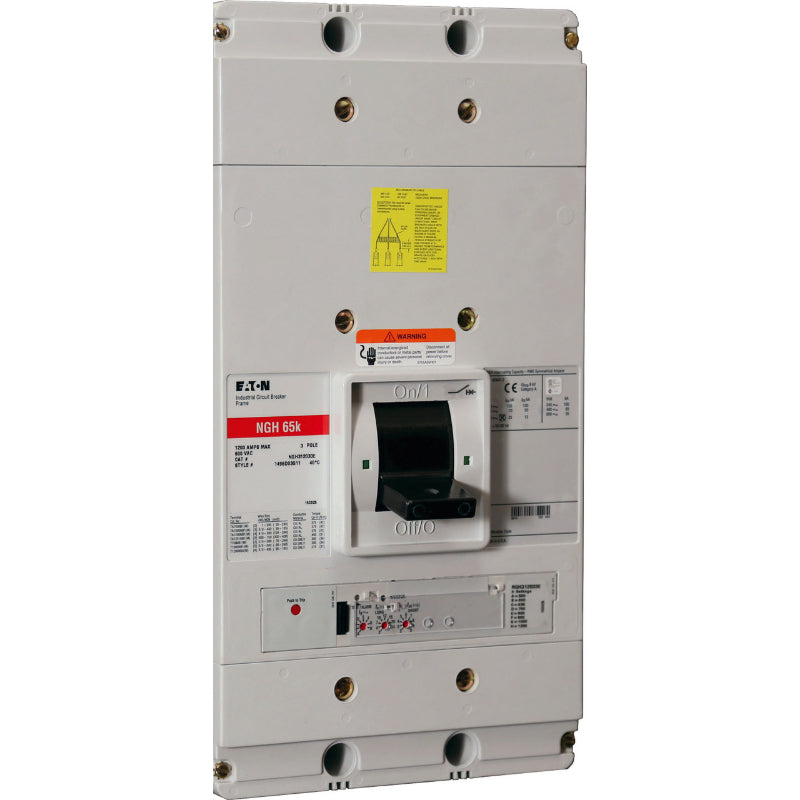

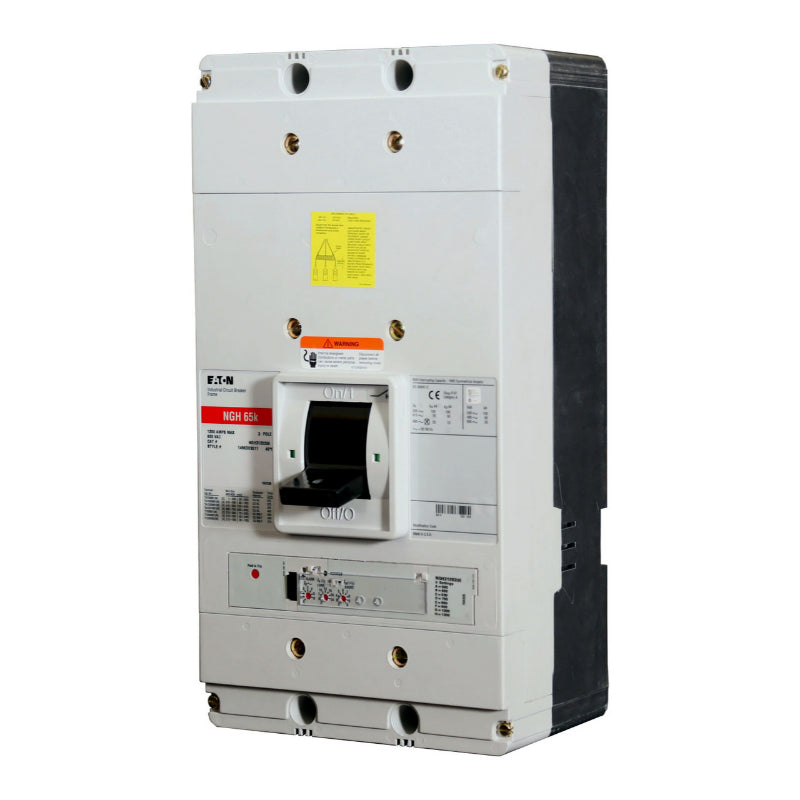

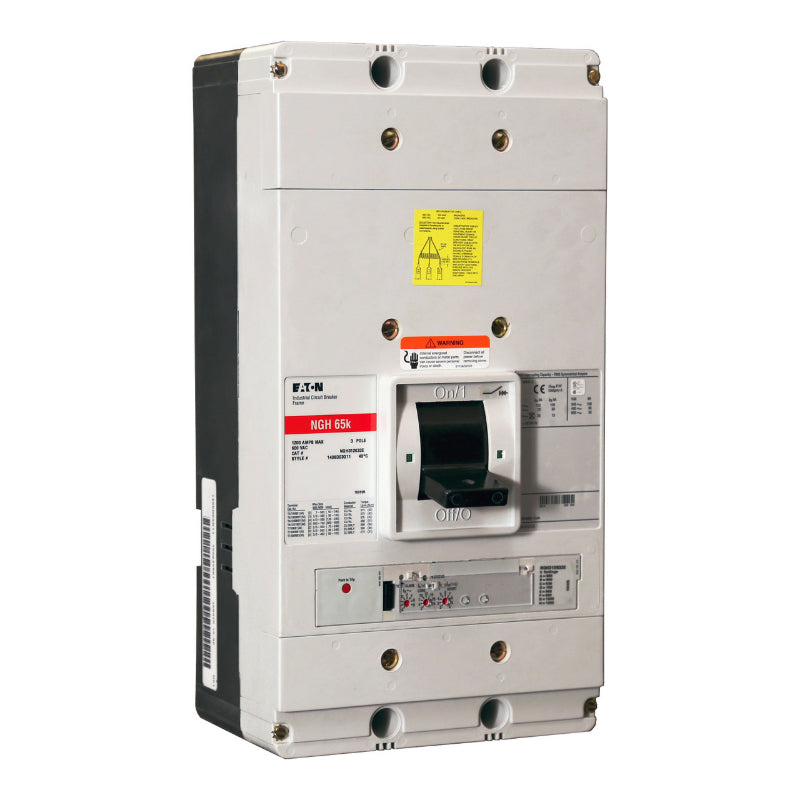

NGH312033E Eaton Series G 1200A 3-Pole 65kA Electronic LS Circuit Breaker
NGH312033E Eaton Series G 1200A 3-Pole 65kA Electronic LS Circuit Breaker
1 in stock
Couldn't load pickup availability
Overview
Eaton / Cutler-Hammer NGH312033E Series G NG-frame electronic molded case circuit breaker, 1200A, 3-pole, 80% rated, with LS electronic trip protection. Rated 65kAIC at 480VAC and 100kAIC at 240VAC.
- Manufacturer part number: NGH312033E
- Frame: NG; series: G
- Poles: 3; current rating: 1200A
- Trip: electronic LS
- Interrupting capacity: 65kAIC at 480VAC; 100kAIC at 240VAC
- Mounting hardware: imperial; line and load terminals
- Breaker weight: 52 lb
- NG-frame breakers do not ship with lugs; confirm terminal requirements separately.
