Overview

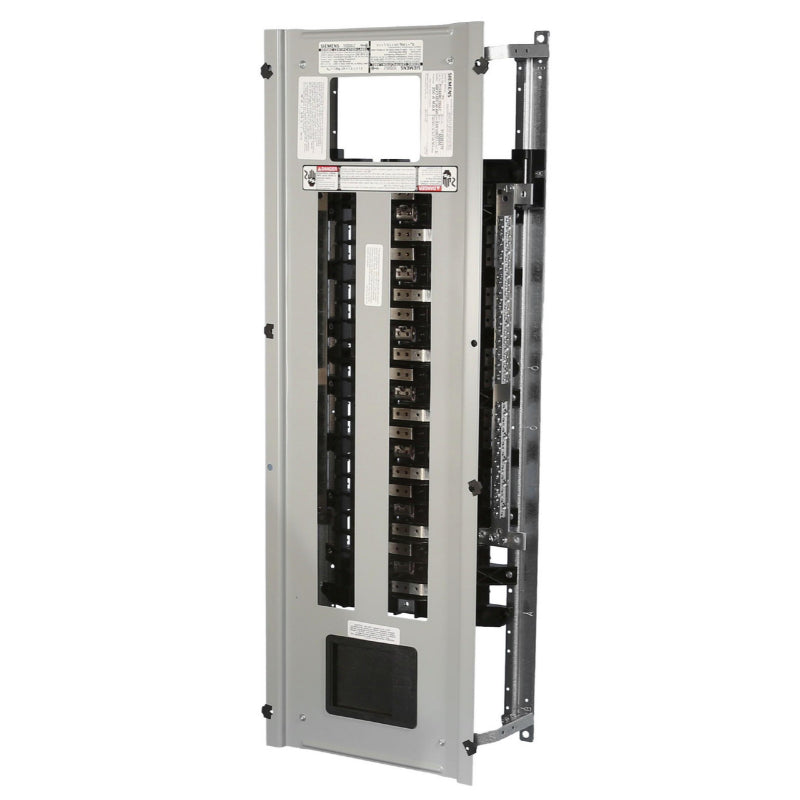

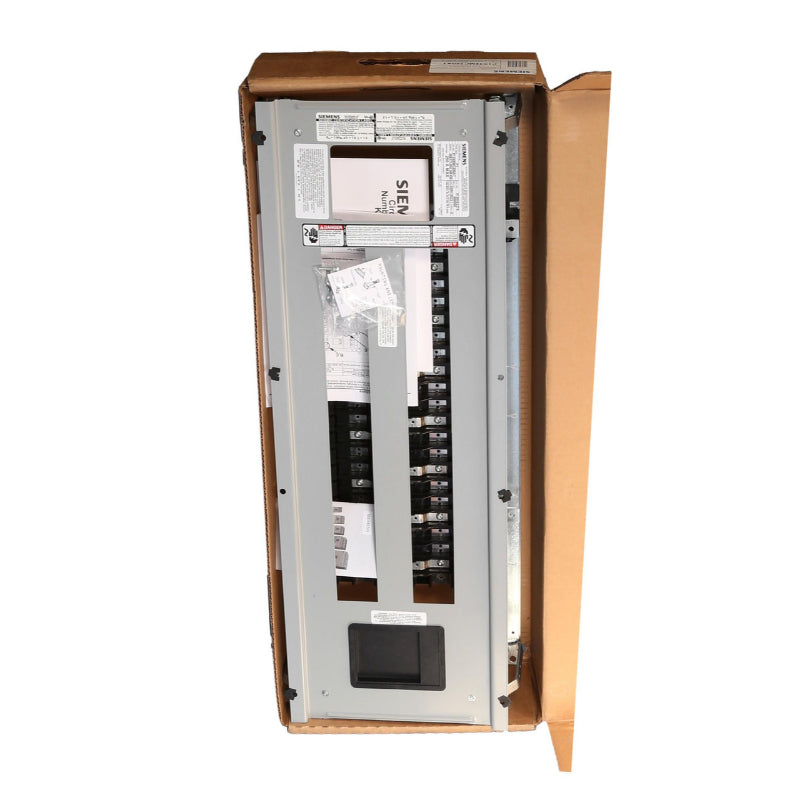

Siemens low voltage RP1 unassembled lighting panel. Dimensions (H x W x D) in: 44.0 x 20.0 x 5.75. 1-phase 3-wire allows 42 circuits user selects main device (lug/breaker). Rated 120/240V (250A). Special features: tin-plated aluminum main bus, subfeed space included. Brand new.

Specifications

BrandSiemens
Product TypeLighting Panel Board
Voltage Rating120/240 V
Current Rating250 A
Interrupt Rating10 to 65 kA (BL); 65 kA (BQD)
PhaseSingle
Number of Wires3
Number of Circuits42
Cover Attachment StyleHinge
Cover Closure MethodScrew
NEMA RatingNEMA 1
Enclosure MaterialSteel
Bus Bar MaterialTin Plated Aluminum
ColorLight Gray
FinishGalvanized
Depth5.75 in
Width20 in
Height44 in
Wire Size350 kcmil to 6 AWG
Panel TypeRP1
Cable Entry TypeTop
Torque Rating45 in-lb
Indoor/Outdoor UseIndoor
Mounting TypeSurface; Flush
Mounting PositionHorizontal
Terminal TypeLug
ApplicationLighting Load; Branch Circuit Load
CertificationsPB1; UL 67; UL 50; CAS C22.2, No.29
Weight24.052 lb
Package Quantity1 Piece
Country of OriginUSA
