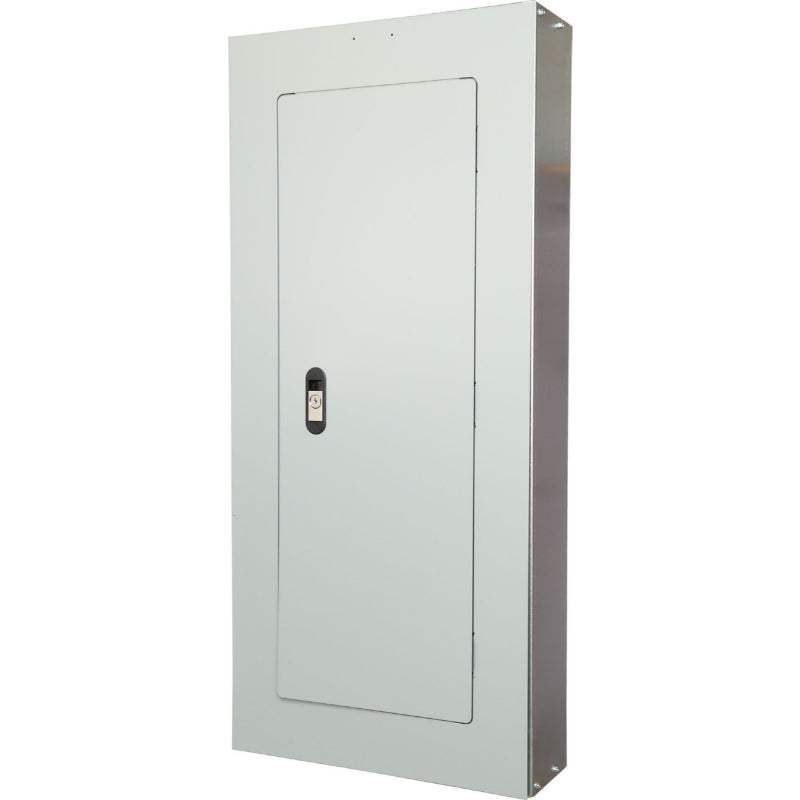

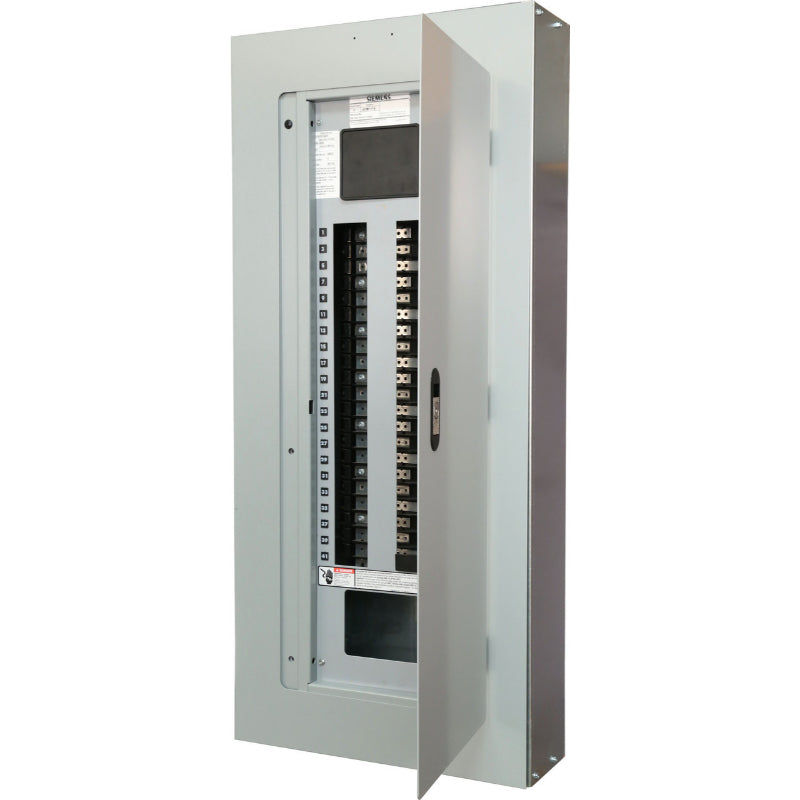

P1A42ML250ATST Siemens P1 250A 120/240V Single-Phase 42-Circuit MLO Panelboard
P1A42ML250ATST Siemens P1 250A 120/240V Single-Phase 42-Circuit MLO Panelboard
Couldn't load pickup availability
Overview
The Siemens P1A42ML250ATST is a 250A, 42-circuit P1 panelboard for 120/240V, 1-phase electrical distribution. This main-lug-only configuration features a field-reversible interior that accommodates either top-feed or bottom-feed installation. Refer to the specifications for the listed enclosure, bus material, and included components.
Specifications
| Brand | Siemens |
|---|---|
| Product Type | Panelboard |
| Voltage Rating | 120/240 V |
| Current Rating | 250 A |
| Phase | 1-Phase |
| Number of Wires | 3 |
| Number of Circuits | 42 |
| Cover Attachment Style | Hinge |
| Cover Closure Method | Screw; Latch |
| NEMA Rating | NEMA 1 |
| Enclosure Material | Steel |
| Bus Bar Material | Tin Plated Aluminum |
| Color | Light Gray |
| Finish | Galvanized |
| Depth | 5.75 in |
| Width | 20 in |
| Wire Size | 6 AWG to 350 kcmil |
| Panel Type | P1 |
| Mounting Type | Surface |
| Terminal Type | Screw |
| Includes | MLO Kit; Interior 42 Circuit Unit; Can/Enclosure; Cover/Door |
| Certifications | NEC: 2020; NEMA PB 1; ANSI/NEMA PB1.1; UL Listed; NFPA 70 Compliant; OSHPD Rated |
| Feed Orientation | Top or Bottom (Field-Reversible Interior) |
